M10 x 65mm Security Pin Torx Button Head Screw (T50) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £6.50 | £7.80 |
| 10 - 24 | £5.20 | £6.24 |
| 25 - 49 | £3.90 | £4.68 |
| 50 - 99 | £3.25 | £3.90 |
| 100 - 499 | £2.60 | £3.12 |
| 500 - 999 | £2.27 | £2.73 |
| 1000 + | £1.95 | £2.34 |
£7.80 / each
.png)
Product Specification
| Thread Size | M10 |
| Pitch | 1.5mm |
| Head Diameter | 17.5mm |
| Head Height | 5.50mm |
| Drive | Security T50 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
| Length | 65mm |
Frequently Bought Together
Total Price: £0.00
M10 x 65mm Pin Torx Button Head Screw (T50) – A2 Stainless Steel
The M10 x 65mm Security Pin Torx Button Head Screw combines a M10 machine thread with a Security T50 drive and a button head. Its centre pin restricts engagement by an ordinary Torx tool while allowing servicing with the correct security bit.
What Are Pin Torx Button Head Screws?
Pin Torx button head screws are machine-thread fasteners with a six-lobe socket and central security pin. This M10 version needs a corresponding Security T50 bit rather than a standard Torx bit. The product is described as Level 1 entry-level security: it offers protection against opportunistic vandalism and interference but is not a guarantee against deliberate removal.
Common Applications
- Retail installations: Fix displays and brackets where additional resistance to opportunistic interference is useful.
- Communal facilities: Install suitably threaded fittings on equipment used in shared spaces.
- Workshop assemblies: Secure guards and plates while keeping access possible with the correct security bit.
- Public access equipment: Secure removable access panels on equipment installed in shared or public areas.

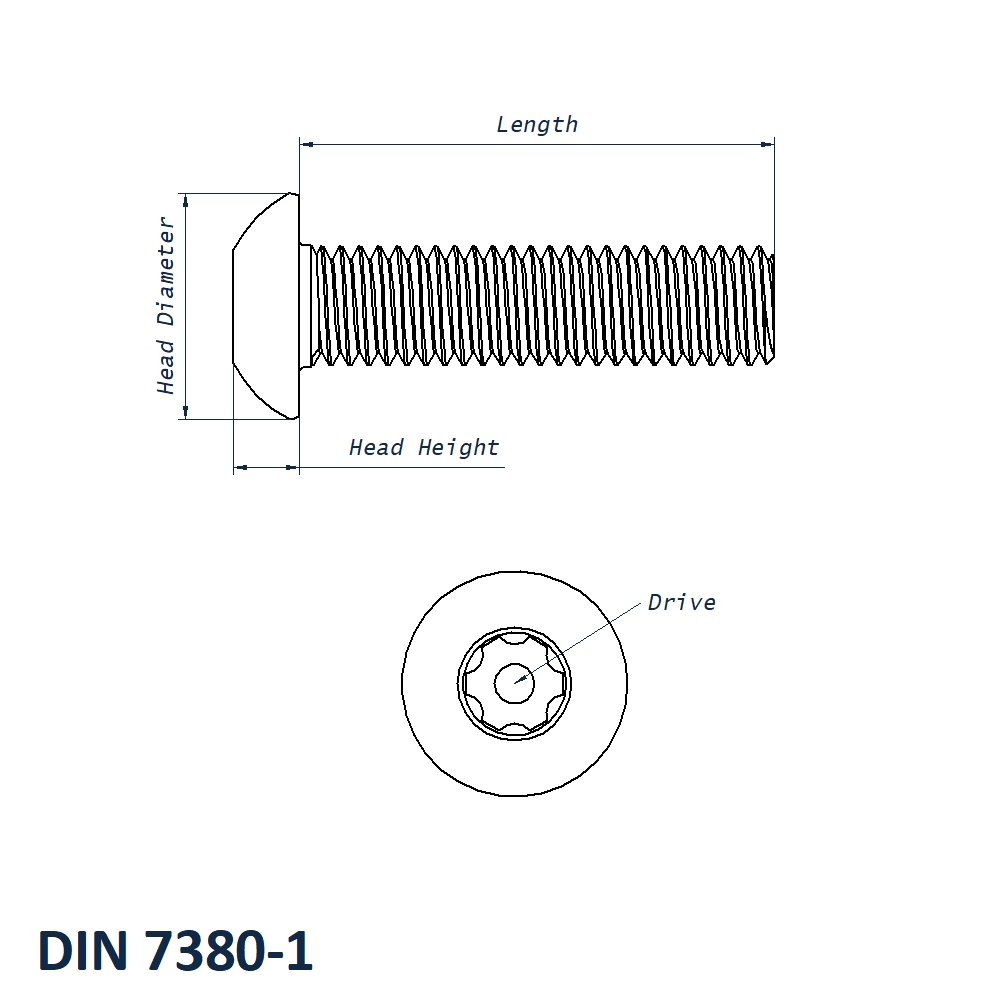

M10 x 65mm Pin Torx Button Head Screw Dimensions
- Thread Size: M10
- Length: 65mm
- Pitch: 1.5mm
- Head Diameter: 17.5mm
- Head Height: 5.50mm
- Drive: Security T50
- Material: A2 Stainless Steel
- Standard: ISO 7380-1
- Head Style: Button Head
Key Benefits
- A clearly specified security drive size helps identify the correct installation tool.
- The specified thread pitch supports selection for compatible tapped components.
- Defined head dimensions help assess the clearance around the assembled fixing.
- The centre-pin Torx recess cannot be engaged by an ordinary Torx bit of the same size.
Explore more tamper-resistant button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
