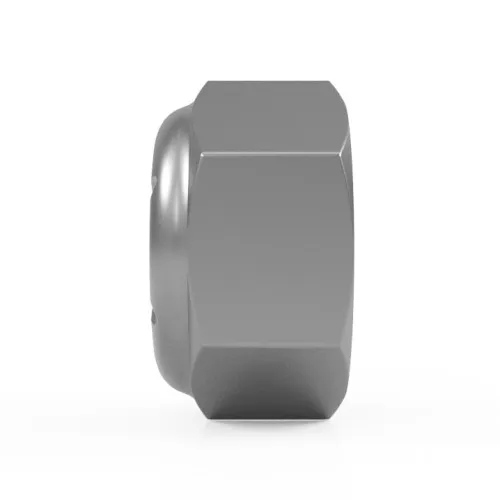

M4 Nyloc Nut (DIN 985) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.03 | £0.04 |
| 100 - 999 | £0.03 | £0.03 |
| 1000 - 9999 | £0.02 | £0.02 |
| 10000 + | £0.01 | £0.01 |
£0.04 / each
.png)
Product Specification
| Thread Size | M4 |
| Thread Pitch | 0.70mm |
| Material | A2 Stainless Steel |
| Across Flats | 7mm |
| Height | 5mm |
| Standard | DIN 985 |
Frequently Bought Together
Total Price: £0.00
M4 Thin Nyloc Hex Nut | 0.70mm Pitch | DIN 985 | A2 Stainless Steel
For electrical enclosures, control equipment and fabricated panels, this M4 DIN 985 locknut provides a reusable self-locking fastening option with a nylon insert positioned above the metal thread. As the mating fastener passes through the insert it creates prevailing friction which helps the nut resist backing off in service. The A2 stainless steel construction provides good corrosion resistance for general engineering, machinery and suitably exposed fastening applications.
What Are DIN 985 Nyloc Nuts?
A Nylock Nut, also commonly written as Nyloc Nut, is a self-locking hex nut that uses a nylon insert to resist rotation after tightening. The insert deforms around the mating thread and creates friction which helps reduce unwanted loosening in service.
For other thread sizes in the same compact format, see our nyloc nuts. If you need a taller nut body for greater thread engagement, compare our DIN 982 locknuts.
Common Applications
- Fabricated Metalwork: Secures compatible bolts in brackets, frames and sheet-metal assemblies where vibration resistance is useful.
- Instrumentation: Provides a compact self-locking fastening point for technical equipment and mechanical sub-assemblies.
- Construction Hardware: Helps retain compatible bolted connections on suitable fabricated components and fittings.
- Maintenance Panels: Keeps fasteners secure on removable covers and serviceable equipment subject to repeated access.
M4 DIN 985 Thin Nyloc Hex Nut Dimensions
- Thread Size: M4
- Thread Pitch: 0.70mm
- Across Flats: 7mm
- Height: 5mm
- Material: A2 Stainless Steel
- Standard: DIN 985
Key Benefits
- Compact body height suits assemblies where a taller locknut may create clearance issues.
- Self-locking format can reduce the need for a separate locking washer in suitable assemblies.
- 7mm across-flats dimension provides the stated hex body width for tool engagement.
- A2 Stainless Steel construction provides the specified metal grade and finish.
We can help you compare thread sizes, material grades and locking nut styles on 01233 713581.
