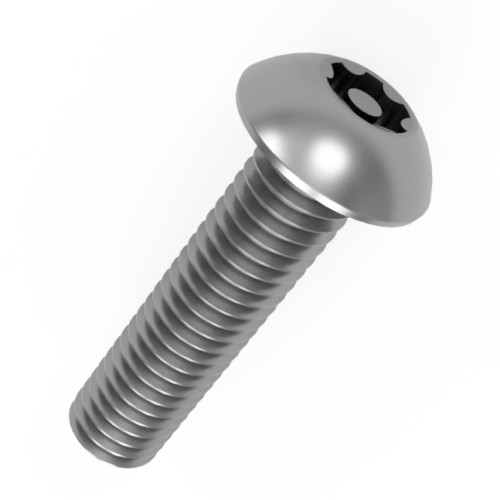

M10 x 20mm Security Pin Torx Button Head Screw (T50) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.41 | £2.89 |
| 10 - 24 | £1.93 | £2.32 |
| 25 - 49 | £1.45 | £1.74 |
| 50 - 99 | £1.21 | £1.45 |
| 100 - 499 | £0.97 | £1.16 |
| 500 - 999 | £0.84 | £1.01 |
| 1000 + | £0.72 | £0.87 |
£2.89 / each
.png)
Product Specification
| Thread Size | M10 |
| Pitch | 1.5mm |
| Head Diameter | 17.5mm |
| Head Height | 5.50mm |
| Drive | Security T50 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
| Length | 20mm |
Frequently Bought Together
Total Price: £0.00
M10 x 20mm Pin Torx Button Head Screw (T50) – A2 Stainless Steel
Designed for exposed fixings, this M10 x 20mm tamper-resistant Pin Torx Button Head Screw uses A2 Stainless Steel and a recessed Security T50 profile. Use the matching security driver to tighten it into a compatible threaded component.
What Are Pin Torx Button Head Screws?
The button head sits above the mounting surface with a rounded profile and a recessed centre-pin Torx drive. The M10 x 20mm screw must be matched to the female thread and driven with a Security T50 security bit. At Level 1 entry-level security it helps discourage casual tampering and opportunistic misuse; authorised removal remains possible.
Common Applications
- Equipment cabinets: Attach cabinet panels to matching threaded components in accessible areas.
- Retail installations: Fix displays and brackets where additional resistance to opportunistic interference is useful.
- Communal facilities: Install suitably threaded fittings on equipment used in shared spaces.
- Workshop assemblies: Secure guards and plates while keeping access possible with the correct security bit.
M10 x 20mm Pin Torx Button Head Screw Dimensions
- Thread Size: M10
- Length: 20mm
- Pitch: 1.5mm
- Head Diameter: 17.5mm
- Head Height: 5.50mm
- Drive: Security T50
- Material: A2 Stainless Steel
- Standard: ISO 7380-1
- Head Style: Button Head
Key Benefits
- A matching security Torx tool permits planned adjustment and removal.
- A2 stainless steel construction is suited to general-purpose corrosion-resistant fastenings.
- The machine thread can engage a matching female thread or be used with an appropriate nut.
- A clearly specified security drive size helps identify the correct installation tool.
Explore more centre-pin Torx screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
