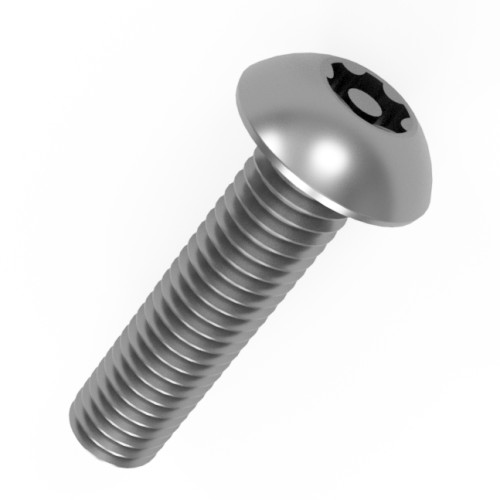

M10 x 100mm Security Pin Torx Button Head Screw (T50) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £5.66 | £6.79 |
| 10 - 24 | £4.53 | £5.44 |
| 25 - 49 | £3.40 | £4.08 |
| 50 - 99 | £2.83 | £3.40 |
| 100 - 499 | £2.27 | £2.72 |
| 500 - 999 | £1.98 | £2.38 |
| 1000 + | £1.70 | £2.04 |
£6.79 / each
.png)
Product Specification
| Thread Size | M10 |
| Pitch | 1.5mm |
| Head Diameter | 17.5mm |
| Head Height | 5.50mm |
| Drive | Security T50 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
| Length | 100mm |
Frequently Bought Together
Total Price: £0.00
M10 x 100mm Pin Torx Button Head Screw (T50) – A2 Stainless Steel
This M10 x 100mm Pin Torx Button Head Screw is manufactured from A2 Stainless Steel with a Security T50 recess and rounded button head. It is installed into a compatible threaded hole or with a matching nut using a centre-pin security Torx driver.
What Are Pin Torx Button Head Screws?
Pin Torx button head screws are machine-thread fasteners with a six-lobe socket and central security pin. This M10 version needs a corresponding Security T50 bit rather than a standard Torx bit. The product is described as Level 1 entry-level security: it offers protection against opportunistic vandalism and interference but is not a guarantee against deliberate removal.
Common Applications
- Public access equipment: Secure removable access panels on equipment installed in shared or public areas.
- Electrical enclosures: Fix covers to suitably threaded housings where a standard Torx driver should not operate the fastener.
- Outdoor furniture: Attach serviceable brackets and fittings on furniture exposed to public access.
- Machinery guarding: Fasten removable protective panels where maintenance teams can use the matching security driver.
M10 x 100mm Pin Torx Button Head Screw Dimensions
- Thread Size: M10
- Length: 100mm
- Pitch: 1.5mm
- Head Diameter: 17.5mm
- Head Height: 5.50mm
- Drive: Security T50
- Material: A2 Stainless Steel
- Standard: ISO 7380-1
- Head Style: Button Head
Key Benefits
- The centre-pin Torx recess cannot be engaged by an ordinary Torx bit of the same size.
- The rounded button head gives the assembled fixing a relatively low-profile finish.
- A matching security Torx tool permits planned adjustment and removal.
- A2 stainless steel construction is suited to general-purpose corrosion-resistant fastenings.
Explore more security Pin Torx button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
