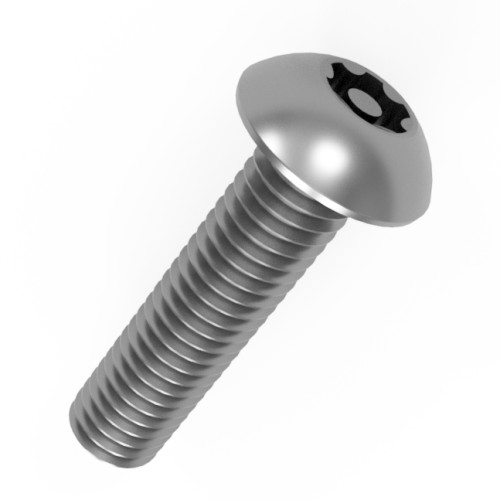

M6 x 16mm Security Pin Torx Button Head Screw (T30) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.64 | £0.77 |
| 10 - 24 | £0.52 | £0.62 |
| 25 - 49 | £0.38 | £0.46 |
| 50 - 99 | £0.33 | £0.39 |
| 100 - 499 | £0.26 | £0.31 |
| 500 - 999 | £0.23 | £0.27 |
| 1000 + | £0.19 | £0.23 |
£0.77 / each
.png)
Product Specification
| Thread Size | M6 |
| Thread Length | 16mm |
| Pitch | 1.00mm |
| Head Diameter | 10.5mm |
| Head Height | 3.00mm |
| Drive | Security T30 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M6 x Pin Torx Button Head Screw (T30) – A2 Stainless Steel
The M6 x Security Pin Torx Button Head Screw combines a M6 machine thread with a Security T30 drive and a button head. Its centre pin restricts engagement by an ordinary Torx tool while allowing servicing with the correct security bit.
What Are Pin Torx Button Head Screws?
Pin Torx button head screws are machine-thread fasteners with a six-lobe socket and central security pin. This M6 version needs a corresponding Security T30 bit rather than a standard Torx bit. The product is described as Level 1 entry-level security: it offers protection against opportunistic vandalism and interference but is not a guarantee against deliberate removal.
Common Applications
- Electrical enclosures: Fix covers to suitably threaded housings where a standard Torx driver should not operate the fastener.
- Outdoor furniture: Attach serviceable brackets and fittings on furniture exposed to public access.
- Machinery guarding: Fasten removable protective panels where maintenance teams can use the matching security driver.
- Transport fittings: Secure suitable interior brackets and covers that may require periodic removal.
M6 x Pin Torx Button Head Screw Dimensions
- Thread Size: M6
- Thread Length: 16mm
- Pitch: 1.00mm
- Head Diameter: 10.5mm
- Head Height: 3.00mm
- Drive: Security T30
- Material: A2 Stainless Steel
- Standard: ISO 7380-1
- Head Style: Button Head
Key Benefits
- A clearly specified security drive size helps identify the correct installation tool.
- The specified thread pitch supports selection for compatible tapped components.
- Defined head dimensions help assess the clearance around the assembled fixing.
- The centre-pin Torx recess cannot be engaged by an ordinary Torx bit of the same size.
Explore more tamper-resistant button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
