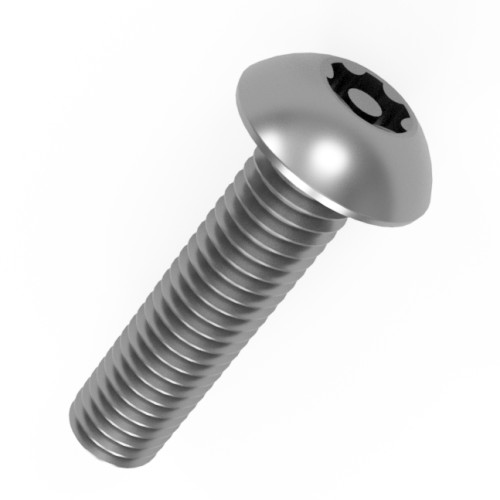

M6 x 12mm Security Pin Torx Button Head Screw (T30) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.20 | £0.24 |
| 100 - 499 | £0.16 | £0.19 |
| 500 - 999 | £0.12 | £0.15 |
| 1000 - 9999 | £0.09 | £0.11 |
| 10000 + | £0.07 | £0.08 |
£0.24 / each
.png)
Product Specification
| Thread Size | M6 |
| Thread Length | 12mm |
| Pitch | 1.00mm |
| Head Diameter | 10.5mm |
| Head Height | 3.00mm |
| Drive | Security T30 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M6 x Pin Torx Button Head Screw (T30) – A2 Stainless Steel
This M6 x Pin Torx Button Head Screw is manufactured from A2 Stainless Steel with a Security T30 recess and rounded button head. It is installed into a compatible threaded hole or with a matching nut using a centre-pin security Torx driver.
What Are Pin Torx Button Head Screws?
The button head sits above the mounting surface with a rounded profile and a recessed centre-pin Torx drive. The M6 x screw must be matched to the female thread and driven with a Security T30 security bit. At Level 1 entry-level security it helps discourage casual tampering and opportunistic misuse; authorised removal remains possible.
Common Applications
- Communal facilities: Install suitably threaded fittings on equipment used in shared spaces.
- Workshop assemblies: Secure guards and plates while keeping access possible with the correct security bit.
- Public access equipment: Secure removable access panels on equipment installed in shared or public areas.
- Electrical enclosures: Fix covers to suitably threaded housings where a standard Torx driver should not operate the fastener.
M6 x Pin Torx Button Head Screw Dimensions
- Thread Size: M6
- Thread Length: 12mm
- Pitch: 1.00mm
- Head Diameter: 10.5mm
- Head Height: 3.00mm
- Drive: Security T30
- Material: A2 Stainless Steel
- Standard: ISO 7380-1
- Head Style: Button Head
Key Benefits
- The centre-pin Torx recess cannot be engaged by an ordinary Torx bit of the same size.
- The rounded button head gives the assembled fixing a relatively low-profile finish.
- A matching security Torx tool permits planned adjustment and removal.
- A2 stainless steel construction is suited to general-purpose corrosion-resistant fastenings.
Explore more security Pin Torx button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
