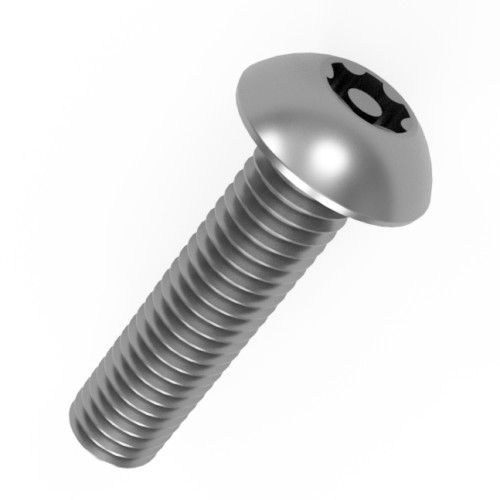

M6 x 35mm Security Pin Torx Button Head Screw (T30) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.74 | £0.89 |
| 10 - 24 | £0.59 | £0.71 |
| 25 - 49 | £0.44 | £0.53 |
| 50 - 99 | £0.37 | £0.44 |
| 100 - 499 | £0.30 | £0.36 |
| 500 - 999 | £0.26 | £0.31 |
| 1000 + | £0.23 | £0.27 |
£0.89 / each
.png)
Product Specification
| Thread Size | M6 |
| Thread Length | 35mm |
| Pitch | 1.00mm |
| Head Diameter | 10.5mm |
| Head Height | 3.00mm |
| Drive | Security T30 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M6 x Pin Torx Button Head Screw (T30) – A2 Stainless Steel
The M6 x Security Pin Torx Button Head Screw combines a M6 machine thread with a Security T30 drive and a button head. Its centre pin restricts engagement by an ordinary Torx tool while allowing servicing with the correct security bit.
What Are Pin Torx Button Head Screws?
A security Pin Torx button head screw uses a central pin inside its Torx recess to stop normal Torx drivers seating fully. This M6 x fixing can be removed for planned maintenance using the matching Security T30 tool. Its Level 1 entry-level security classification indicates a deterrent to casual vandalism and opportunistic interference rather than absolute protection.
Common Applications
- Machinery guarding: Fasten removable protective panels where maintenance teams can use the matching security driver.
- Transport fittings: Secure suitable interior brackets and covers that may require periodic removal.
- Building fixtures: Hold exposed metal fittings in place with a low-profile rounded screw head.
- Equipment cabinets: Attach cabinet panels to matching threaded components in accessible areas.
M6 x Pin Torx Button Head Screw Dimensions
- Thread Size: M6
- Thread Length: 35mm
- Pitch: 1.00mm
- Head Diameter: 10.5mm
- Head Height: 3.00mm
- Drive: Security T30
- Material: A2 Stainless Steel
- Standard: ISO 7380-1
- Head Style: Button Head
Key Benefits
- The rounded button head gives the assembled fixing a relatively low-profile finish.
- A matching security Torx tool permits planned adjustment and removal.
- A2 stainless steel construction is suited to general-purpose corrosion-resistant fastenings.
- The machine thread can engage a matching female thread or be used with an appropriate nut.
Explore more tamper-resistant button head screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
