Snap Grip Hose Clamps 17.1-20.6mm, 5.3mm Width, White
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £0.50 | £0.60 |
| 25 - 49 | £0.48 | £0.58 |
| 50 - 99 | £0.47 | £0.56 |
| 100 - 499 | £0.45 | £0.54 |
| 500 + | £0.43 | £0.52 |
£0.60 / each
.png)
Product Specification
| Clamping Diameter | 17.1-20.6mm |
| Width | 5.3mm |
| Thickness | 1.8mm |
| Colour | White |
| Material | Nylon 6/6 |
Frequently Bought Together
Total Price: £0.00
17.1-20.6mm White Nylon 6/6 Snap Grip Hose Clamp – 5.3mm Band
This white nylon hose clamp covers connections measuring 17.1-20.6mm and is formed with a 5.3mm band. The snap-together ratchet can be closed around a hose on its mating fitting for hose-to-barb fittings in general equipment, offering an alternative to a screw-tightened metal clip.
What Are Plastic Snap Grip Hose Clamps?
A plastic snap grip hose clamp is a toothed band that closes around a hose with a ratchet-style fastening. The grip is adjusted to the size of the joint and the teeth hold the band closed. This Nylon 6/6 version is intended for appropriately sized tubing and should not be treated as a pressure-rated fitting. With its 5.3mm band this particular white version fits small-diameter hose assemblies within 17.1-20.6mm, making it a candidate for compact tubing connections.
Common Applications
- Fluid Handling Equipment: Holding appropriately sized flexible hose against a selected hose fitting.
- Electrical Enclosures: Managing non-electrical flexible tubing routed through protected equipment spaces.
- Laboratory Apparatus: Attaching compatible tubing to equipment connections where nylon is appropriate.
- General Repairs: Replacing a damaged snap-on hose clamp with a matching clamping diameter.

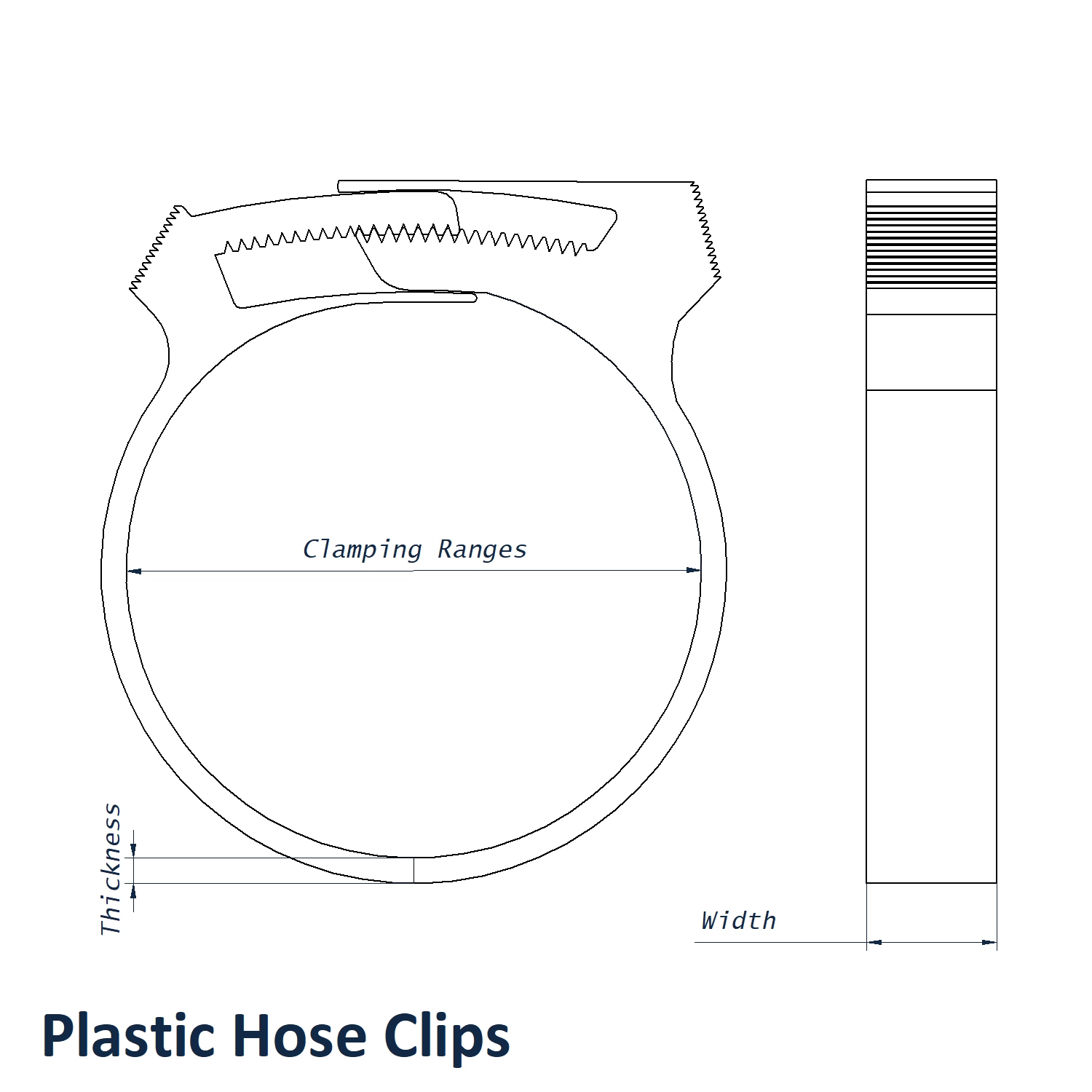

17.1-20.6mm White Snap Grip Hose Clamp Dimensions
- Clamping Diameter: 17.1-20.6mm
- Width: 5.3mm
- Thickness: 1.8mm
- Material: Nylon 6/6
- Colour: White
Key Benefits
- Interlocking teeth hold the selected band position after fitting.
- Nylon 6/6 construction avoids the rust associated with untreated steel clips.
- Suitable for installation using hand pressure or appropriate simple pliers where needed.
- The 17.1-20.6mm clamping range allows selection against the measured outside diameter of the fitted hose.
Compare compatible sizes of plastic clamps for hose connections when choosing a fixing for your hose connection. If you need help selecting the correct size, call us on 01233 713581.
