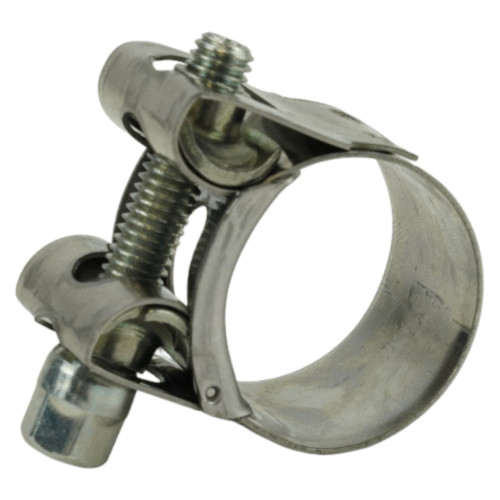

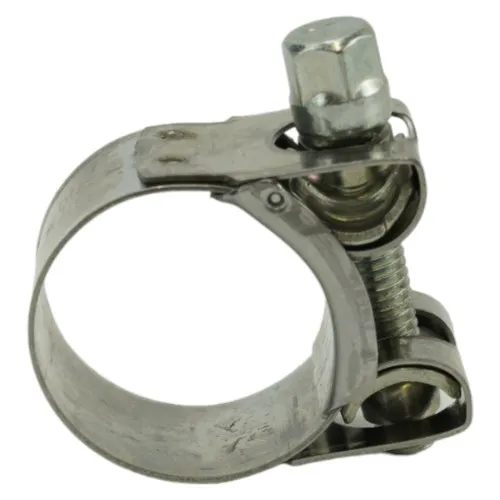

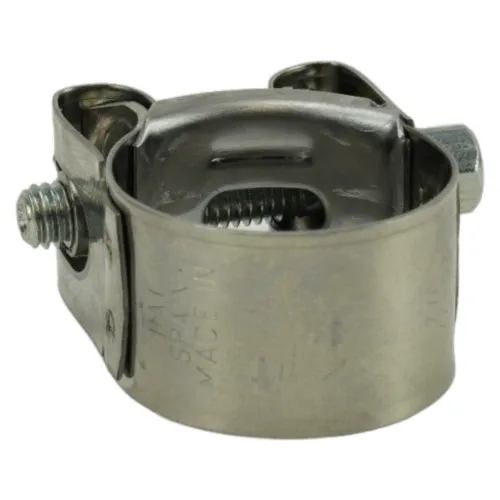

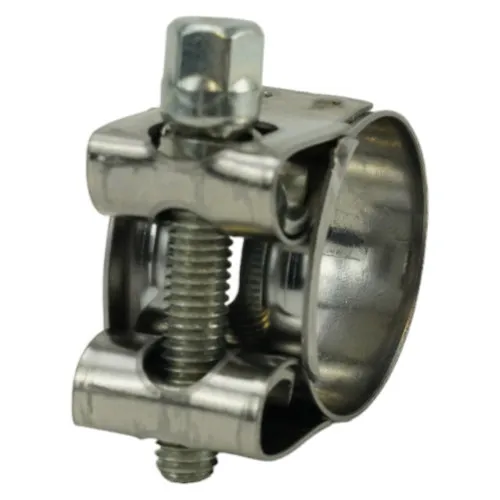

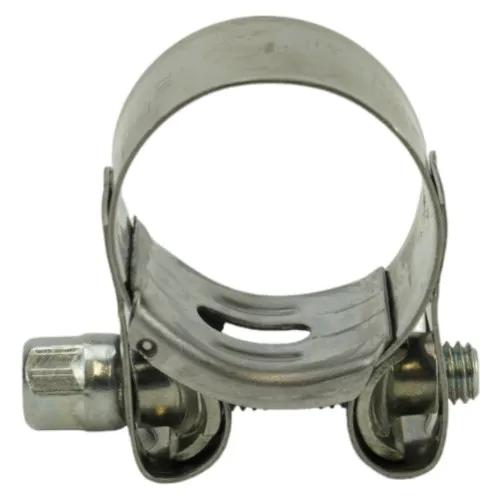

T Bolt Hose Clamp 40-43mm, 20mm Width, W4
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £4.23 | £5.08 |
| 10 - 24 | £4.11 | £4.93 |
| 25 - 49 | £3.98 | £4.78 |
| 50 - 99 | £3.87 | £4.64 |
| 100 + | £3.75 | £4.50 |
£5.08 / each
.png)
Product Specification
| Clamping Diameter | 40-43mm |
| Band Width | 20mm |
| Bridge Width | 22.0mm |
| Tightening Torque | 13Nm |
| Bolt Size | M7 |
| Material | W4 |
Frequently Bought Together
Total Price: £0.00
40-43mm T-Bolt Hose Clamp | 20mm Band | M7 | W4 304 Stainless Steel
This 40-43mm industrial hose clamp is designed for securing hoses and tubes where high clamping force and even pressure are important. The 20mm band, M7 T-bolt and 13Nm tightening torque make it well suited to demanding automotive, hydraulic and industrial connections. W4 construction uses 304 stainless steel for the band, housing and screw which provides strong corrosion resistance for demanding outdoor, industrial and suitable marine applications.
What Are T-Bolt Clamps?
Bolt Hose Clamps are designed for hose and tube joints where secure retention is important. The wide band surrounds the connection and the T-bolt provides controlled tightening which is useful on coolant lines, turbo hoses, hydraulic systems and industrial pipework.
Common Applications
- Turbo and Intake Systems: Provides a strong clamp around compatible turbo hoses and charge-air connections where pressure can fluctuate.
- Coolant Lines: Secures suitable engine and machinery coolant hoses with a wide band that helps spread clamping pressure.
- Tube Connections: Works as a clamp for tube and hose joints where a robust adjustable connection is required.
- Outdoor Equipment: W4 versions provide enhanced corrosion resistance for exposed machinery and suitable outdoor applications.

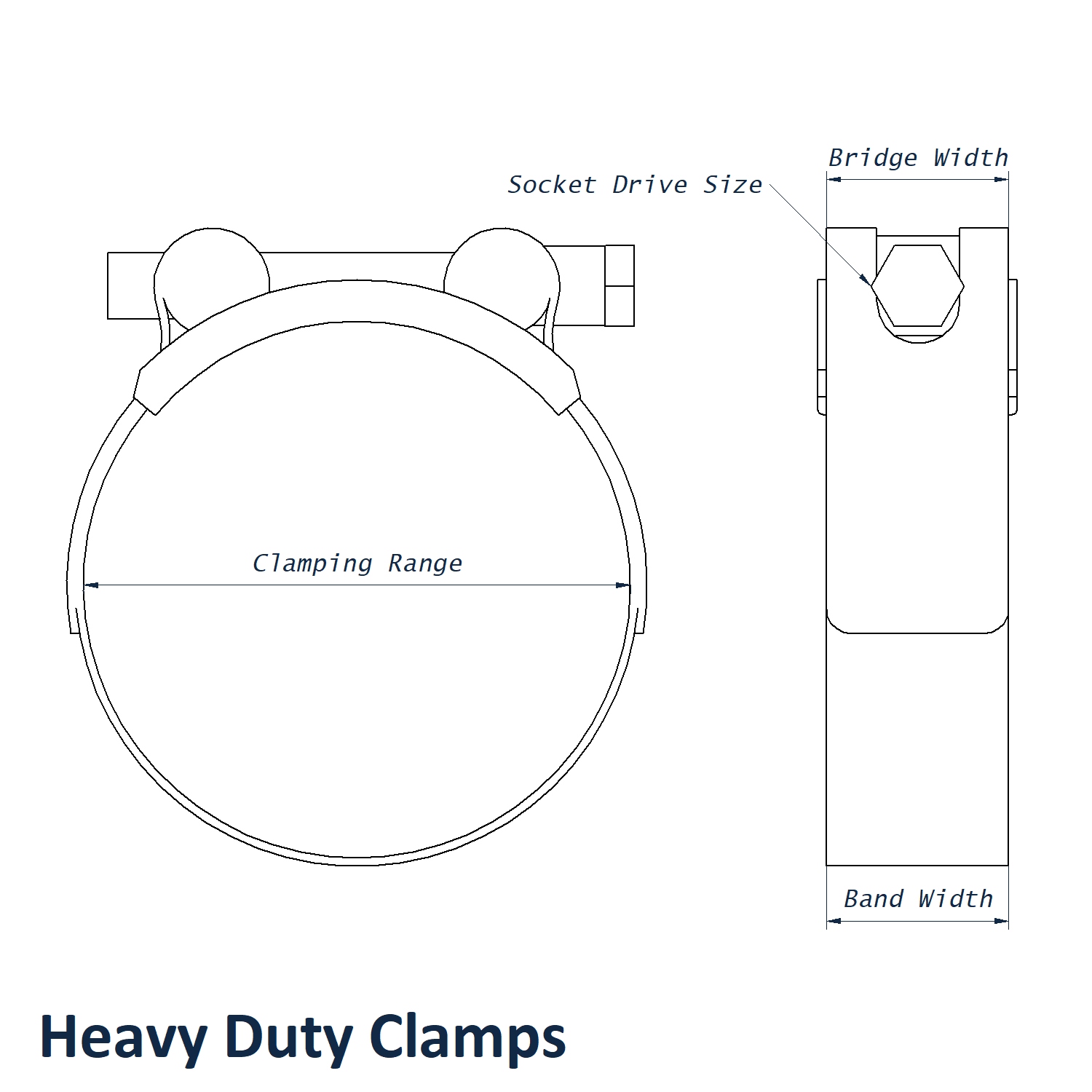

40-43mm T-Bolt Hose Clamp Dimensions
- Clamping Diameter: 40-43mm
- Band Width: 20mm
- Bolt Size: M7
- Bridge Width: 22.0mm
- Tightening Torque: 13Nm
- Material: W4
Key Benefits
- 13Nm tightening torque provides the stated installation reference.
- Wide band helps distribute pressure evenly around compatible hose and tube connections.
- Strong mechanical fastening helps resist movement in applications exposed to vibration and pressure changes.
- 20mm band width spreads the clamping load around the hose or tube.
View the full T-Bolt Clamps range to compare clamping diameters, band widths and W2 or W4 material grades. If you need help choosing the right clamp for your hose or tube, call us on 01233 713581.
