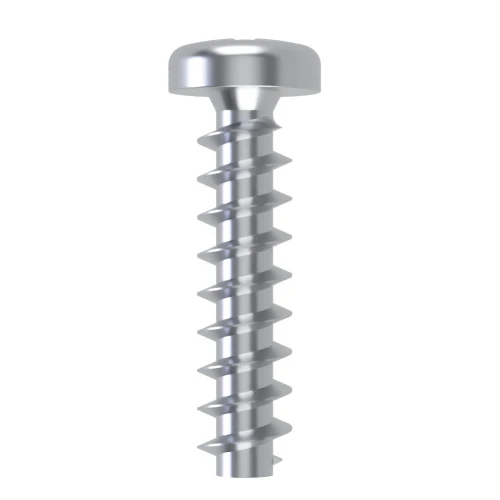

2.5mm x 6mm Pozi Pan Screw for Hard Plastics (PT45) - PZ1 Drive | BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.14 | £0.17 |
| 50 - 99 | £0.08 | £0.10 |
| 100 - 249 | £0.06 | £0.07 |
| 250 - 499 | £0.04 | £0.05 |
| 500 - 999 | £0.03 | £0.04 |
| 1000 - 4999 | £0.03 | £0.03 |
| 5000 + | £0.03 | £0.03 |
£0.17 / each
.png)
Product Specification
| Thread Size | 2.5mm |
| Thread Length | 6mm |
| Material | Steel BZP |
| Head Diameter | 4.00mm |
| Head Height | 1.60mm |
| Drive | PZ1 |
| Head Style | Pan |
Frequently Bought Together
Total Price: £0.00
2.5mm x 6mm Pozi Pan PT45 Screw for Hard Plastics | Bright Zinc Plated Steel
Ideal for instrument housings and control products, this 2.5mm x 6mm PT45 plastic screw is manufactured from Bright Zinc Plated Steel with a Pan head and PZ1 drive. The trilobular thread form pushes material aside to create the mating thread without relying on a conventional cutting action.
What Are Pozi Pan PT45 Screws?
A PT45 screw provides a middle ground between a sharp 30° plastic thread and a conventional self tapping screw. Its shorter 45° thread and trilobular form make it especially useful in hard materials where secure thread engagement and a high drive-to-strip ratio are required.
Common Applications
- Furniture Components: Secures suitable engineering-plastic fittings and components used in furniture manufacture.
- Glass-Reinforced Plastics: Provides a specialised thread-forming fastening option for compatible reinforced plastic parts.
- Appliance Housings: Provides a dedicated fastening method for rigid plastic covers, panels and moulded parts.
- Lighting Products: Secures rigid plastic bezels, covers and housings used in suitable lighting equipment.

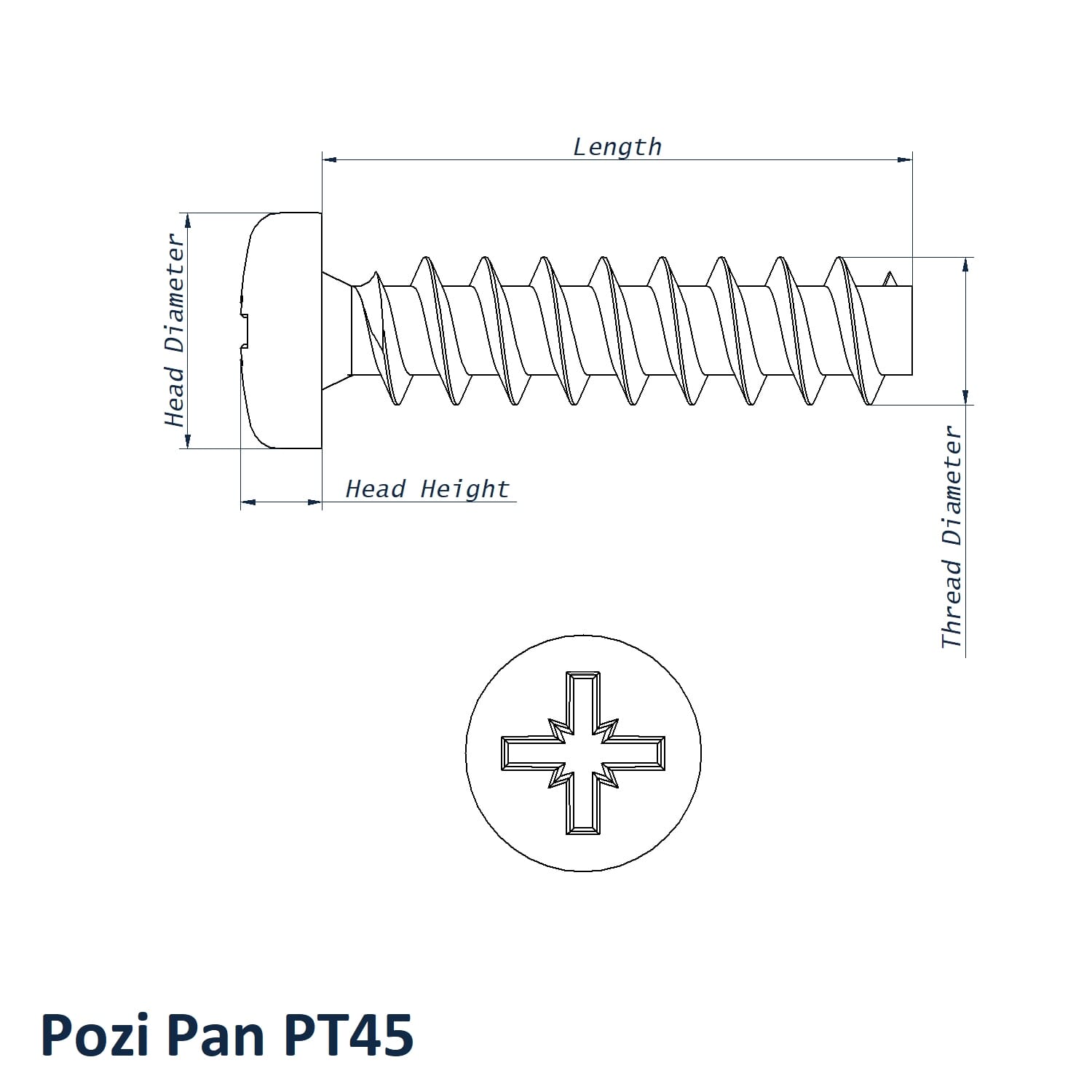

2.5mm x 6mm Pozi Pan PT45 Screw Dimensions
- Thread Size: 2.5mm
- Thread Length: 6mm
- Head Diameter: 4.00mm
- Head Height: 1.60mm
- Drive: PZ1
- Material: Steel BZP
- Head Style: Pan
Key Benefits
- Trilobular geometry concentrates thread-forming pressure at three points rather than around a fully round profile.
- Bright Zinc Plated Steel provides an economical metallic finish for general indoor hard-plastic assemblies.
- The engineering guide provides PT45 pilot-hole tables, boss-sizing guidance and thread-selection information.
- 45° trilobular PT45 thread form is designed for harder plastics and reinforced materials.
View the complete Pozi Pan PT45 Screws for Hard Plastics range for alternative sizes and materials. For guidance on PT30 vs PT45 threads, pilot-hole sizing, boss design and torque selection, read our Engineering Guide to Screws for Plastic. For further help, contact the Vital Parts technical sales team on 01233 713581.
