4mm x 10mm Pozi Flanged Screw for Hard Plastics (PT45) - PZ2 Drive | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £0.63 | £0.76 |
| 50 - 99 | £0.38 | £0.46 |
| 100 - 249 | £0.25 | £0.30 |
| 250 - 499 | £0.19 | £0.23 |
| 500 - 999 | £0.16 | £0.19 |
| 1000 - 4999 | £0.12 | £0.15 |
| 5000 + | £0.09 | £0.11 |
£0.76 / each
.png)
Product Specification
| Thread Size | 4.0mm |
| Thread Length | 10mm |
| Material | A2 Stainless Steel |
| Head Diameter | 8.00mm |
| Head Height | 2.00mm |
| Drive | PZ2 |
| Head Style | Flanged |
Frequently Bought Together
Total Price: £0.00
4mm x 10mm Pozi Flanged PT45 Screw for Hard Plastics | A2 Stainless Steel
Where outdoor hard-plastic equipment and housings require a specialist plastic fastener, this 4mm x 10mm Pozi Flanged PT45 Screw uses a trilobular 45° thread and A2 Stainless Steel construction. The flange helps spread surface stress which is useful where a larger contact area is preferred.
What Are Pozi Flanged PT45 Screws?
PT45 Pozi Flanged Screws use a three-lobed thread body that concentrates forming pressure around three points of the pilot hole. This geometry supports thread formation in harder plastics while the flange increases the bearing area beneath the head.
Common Applications
- Consumer Electronics: Secures hard-plastic casings and panels while distributing pressure over a larger local area.
- Manufactured Plastic Parts: Supports repeatable assembly of moulded hard-plastic components with correctly sized pilot holes.
- Production Assemblies: Provides a specialist PT45 fastener for repeatable assembly where the flange helps spread clamping stress.
- Electrical Enclosures: Secures hard-plastic covers and panels where a wider bearing head helps distribute clamping load.

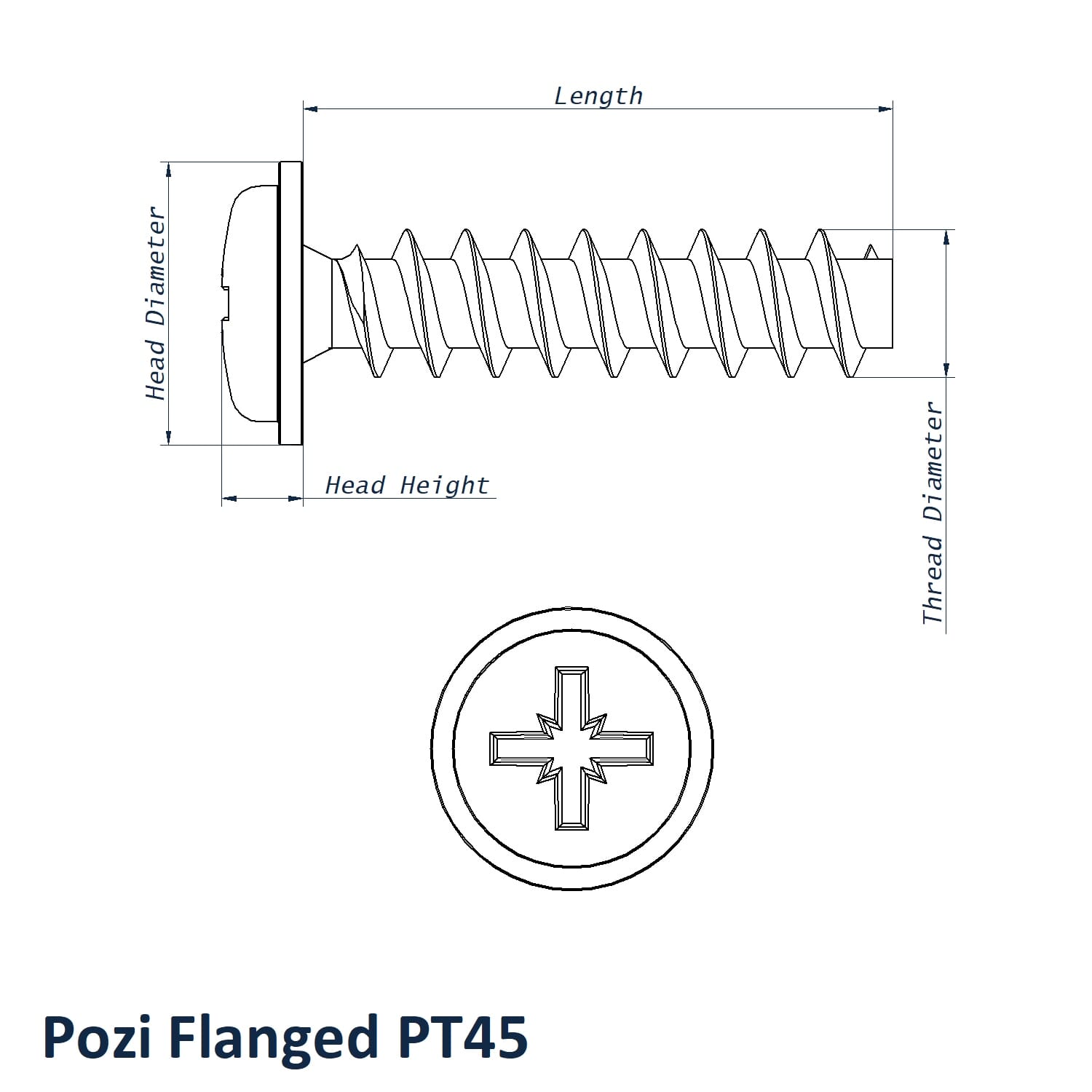

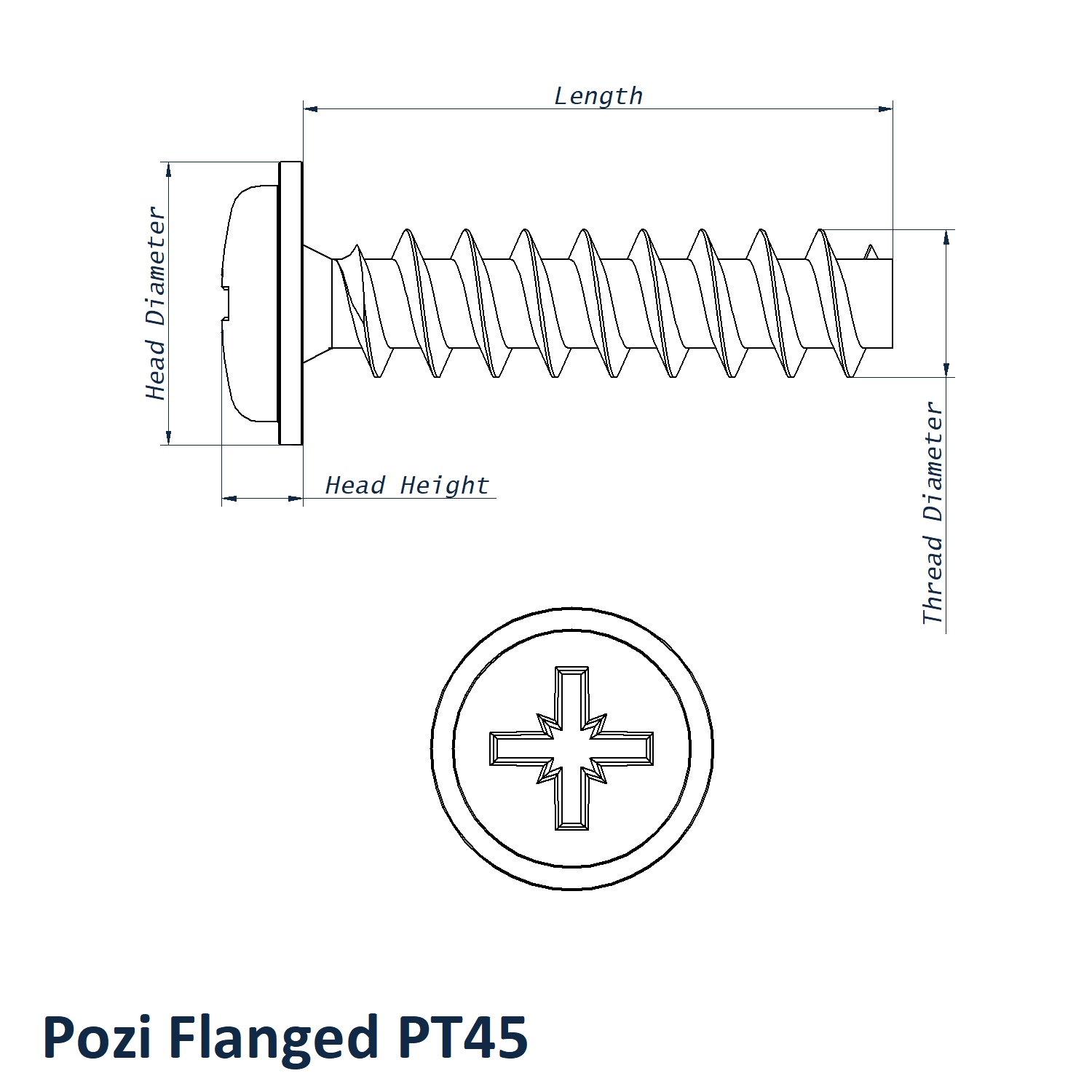

4mm x 10mm Pozi Flanged PT45 Screw Dimensions
- Thread Size: 4.0mm
- Thread Length: 10mm
- Head Diameter: 8.00mm
- Head Height: 2.00mm
- Drive: PZ2
- Material: A2 Stainless Steel
- Head Style: Flanged
Key Benefits
- 4mm thread size and 10mm thread length provide the primary fastening dimensions.
- 2.00mm head height matches the uploaded SKU specification.
- Flanged head helps spread clamping stress across a wider area of the plastic surface.
- Correct pilot-hole diameter, boss size and engagement length should be selected for the material being assembled.
View the complete Pozi Flanged PT45 Screws for Hard Plastics range for alternative sizes and materials. For guidance on PT30 vs PT45 threads, pilot-hole sizing, boss design and torque selection, read our Engineering Guide to Screws for Plastic. For further help, contact the Vital Parts technical sales team on 01233 713581.
