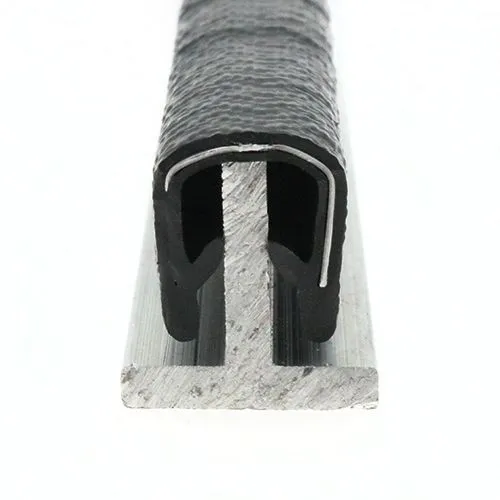

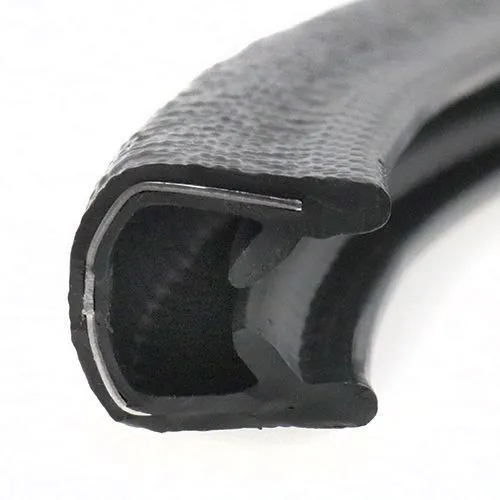

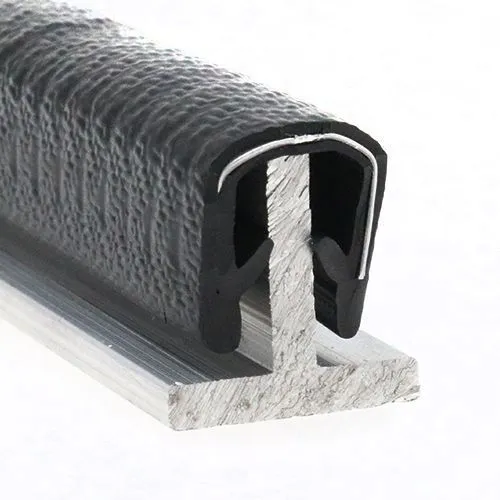

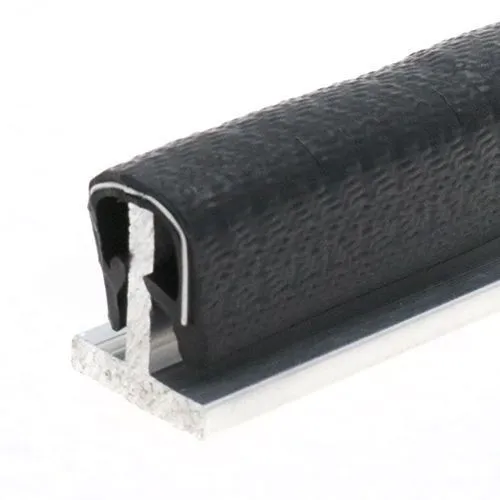

15mm x 12mm Heavy Duty Edging (For 6-8mm Panel) Reinforced 50m PVC
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £176.00 | £211.20 |
| 2 - 5 | £161.92 | £194.30 |
| 6 - 10 | £148.97 | £178.76 |
| 11 + | £137.05 | £164.46 |
£211.20 / each
.png)
Product Specification
| To Fit Panel Thickness | 6.0-8.0mm |
| Roll Length | 50m |
| Overall Depth | 15.0mm |
| Width | 12.0mm |
| Profile | Reinforced U |
| Colour | Black |
| Material | PVC |
Frequently Bought Together
Total Price: £0.00
15mm x 12mm Reinforced Edge Trim | To Fit 6-8mm Panel | 50m | PVC
For larger installations, this 50m heavy duty steel reinforced edging strip provides reinforced protection around 6-8mm panel edges on 6-8mm machinery panels, heavy guards and structural fabrications. The PVC outer profile cushions the edge while internal steel ribs add strength and support firm retention. The reinforced construction also makes it a practical reinforced edge trim for panels for machinery, enclosures and fabricated equipment.
What Is Reinforced Edge Trim?
Steel Reinforced Edge Trim combines a flexible outer profile with internal metal ribs. This gives the edging greater strength and retention than a simple unreinforced strip which makes it suitable for machinery, enclosures and fabricated components.
Common Applications
- Equipment Housings: Protects exposed enclosure edges from knocks while improving the finished appearance.
- Commercial Vehicles: Suitable for compatible access panels, equipment compartments and fabricated vehicle sections.
- Workshop Fabrication: Provides a practical finish for custom guards, panels and sheet-metal assemblies.
- Door and Access Panels: Helps protect frequently handled metal edges from repeated impact and wear.

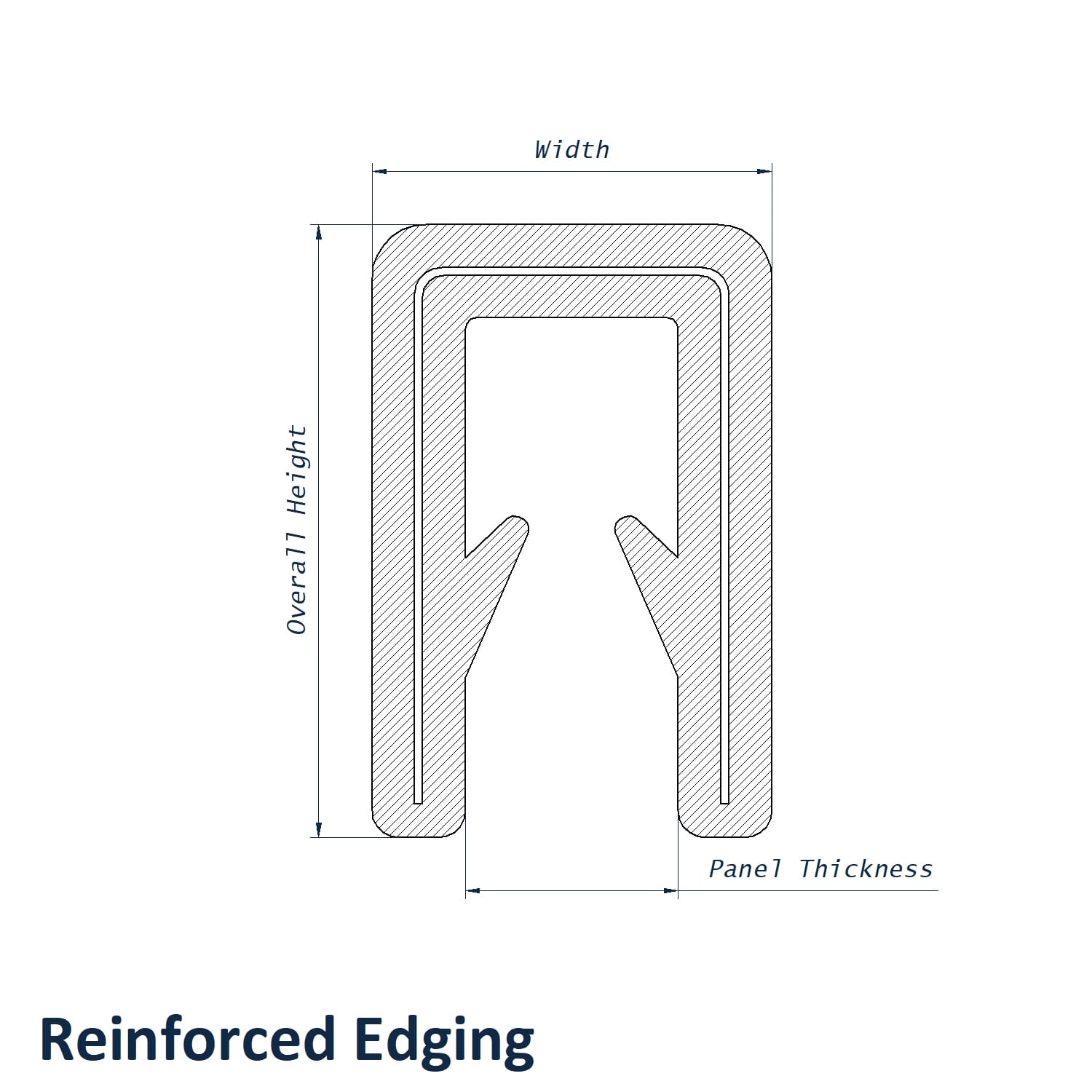

15mm x 12mm Reinforced Edge Trim Dimensions
- To Fit Panel Thickness: 6.0-8.0mm
- Roll Length: 50m
- Overall Depth: 15.0mm
- Width: 12.0mm
- Profile: Reinforced U
- Material: PVC
- Colour: Black
Key Benefits
- 6-8mm panel range provides the main fit specification for the reinforced channel.
- 15mm overall depth defines how far the profile extends over the panel edge.
- Internal steel ribs add strength and help the trim retain its position on compatible panels.
- Reinforced construction helps protect exposed edges from repeated knocks, wear and handling.
Browse the complete Steel Reinforced Edge Trim range for alternative channel sizes and roll lengths. We can help you choose the correct profile on 01233 713581.
