15mm x 17mm Heavy Duty Edging (For 10-12mm Panel) Reinforced 50m PVC
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £207.00 | £248.40 |
| 2 - 5 | £190.44 | £228.53 |
| 6 - 10 | £175.21 | £210.25 |
| 11 + | £161.19 | £193.43 |
£248.40 / each
.png)
Product Specification
| To Fit Panel Thickness | 10.0-12.0mm |
| Roll Length | 50m |
| Overall Depth | 15.0mm |
| Width | 17.0mm |
| Profile | Reinforced U |
| Colour | Black |
| Material | PVC |
Frequently Bought Together
Total Price: £0.00
15mm x 17mm Reinforced Edge Trim | To Fit 10-12mm Panel | 50m | PVC

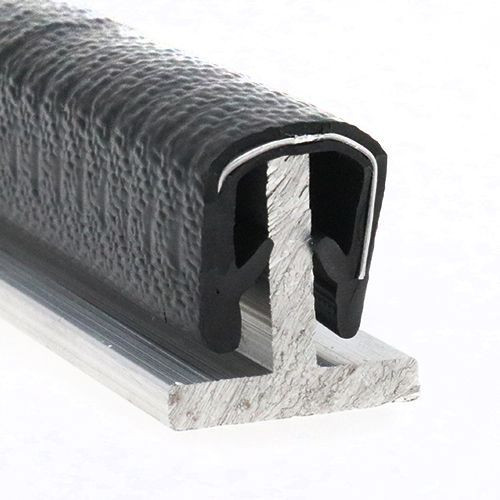

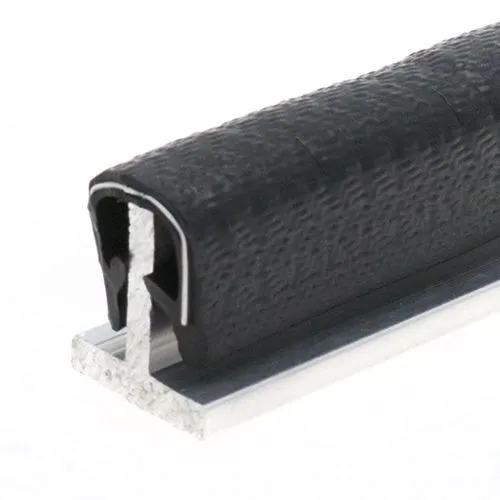

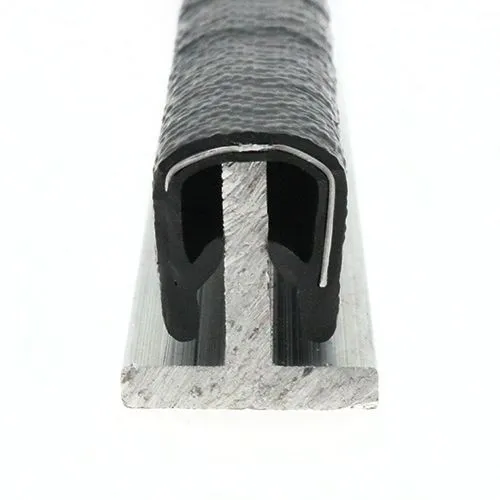

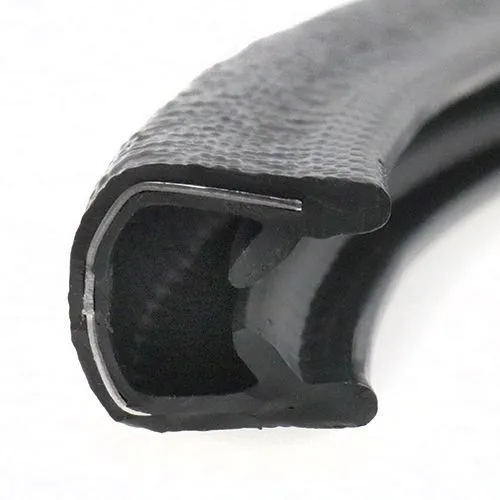

This reinforced edging strip for thick panels is designed for 10-12mm panels, heavy fabricated sections and robust machinery guarding, providing a durable protective finish over 10-12mm panel edges. Supplied in a 50m roll, the PVC profile uses internal steel reinforcement to strengthen the channel and help it stay securely fitted during regular industrial use. As a heavy duty reinforced edge trim, it is well suited to areas exposed to repeated handling, knocks or abrasion.
What Is Reinforced Edge Trim?
Reinforced Edge Trim is a U-channel edging profile used to cover exposed panel and sheet edges. Internal steel ribs strengthen the channel and help it grip the panel while the outer PVC or EPDM layer provides a protective finished surface.
Common Applications

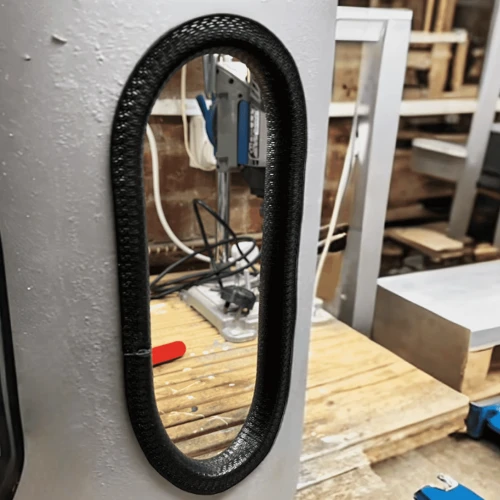

- Machinery Guards: Covers exposed guard edges and helps reduce damage from repeated handling or contact.
- Fabricated Panels: Creates a finished protective edge around cut sheet metal and fabricated sections.
- Industrial Enclosures: Protects cabinet, housing and access-panel edges in commercial and industrial equipment.
- Safety Edging: Covers sharp or unfinished metal edges to reduce direct contact during use and maintenance.

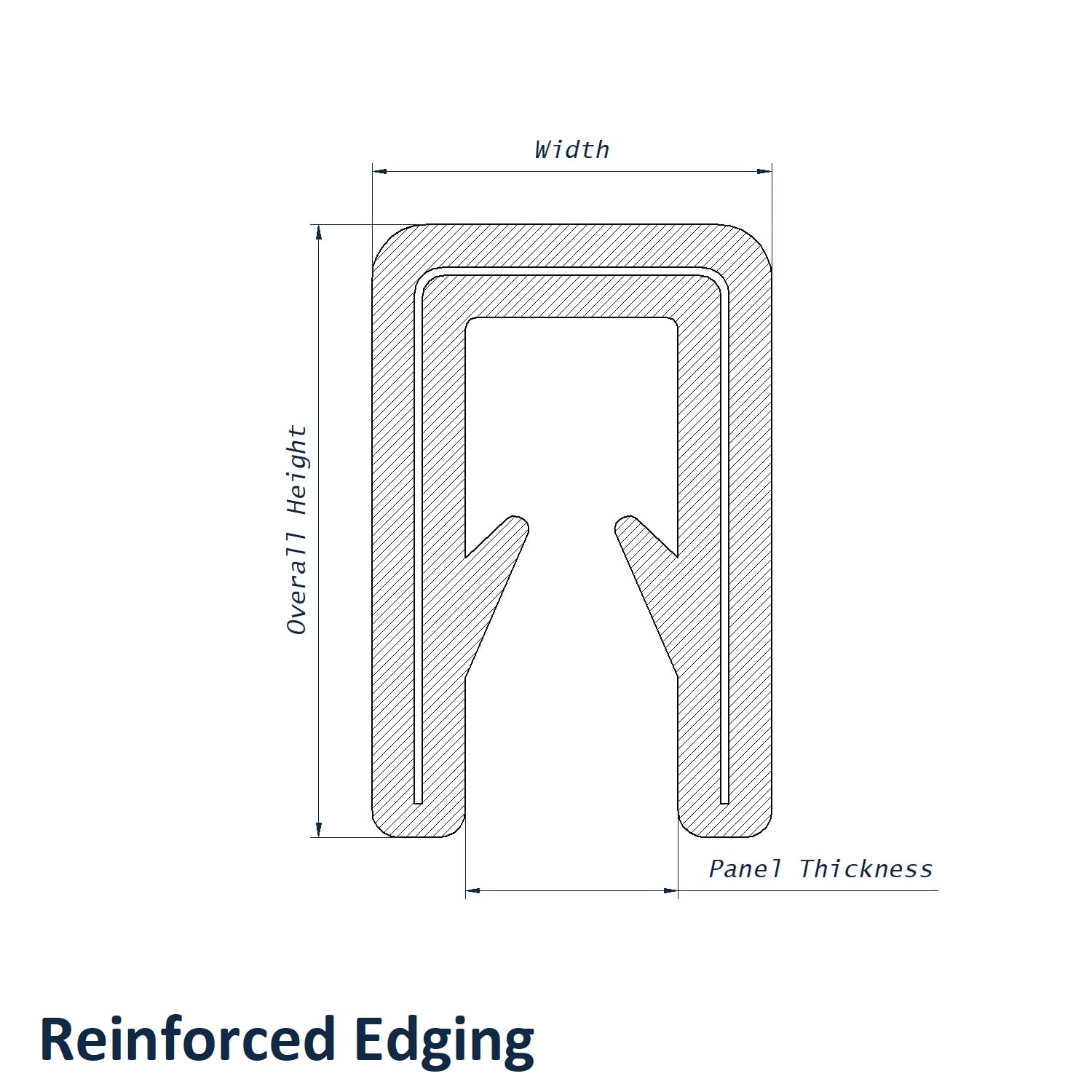

15mm x 17mm Reinforced Edge Trim Dimensions
- To Fit Panel Thickness: 10.0-12.0mm
- Roll Length: 50m
- Overall Depth: 15.0mm
- Width: 17.0mm
- Profile: Reinforced U
- Material: PVC
- Colour: Black
Key Benefits
- 15mm overall depth defines how far the profile extends over the panel edge.
- Reinforced U profile gives the trim its reinforced U-channel form.
- Reinforced construction helps protect exposed edges from repeated knocks, wear and handling.
- 10-12mm panel range provides the main fit specification for the reinforced channel.
View the full Reinforced Edge Trim range to compare panel thicknesses, channel sizes and roll lengths. If you need help matching the trim to your panel, call us on 01233 713581.
