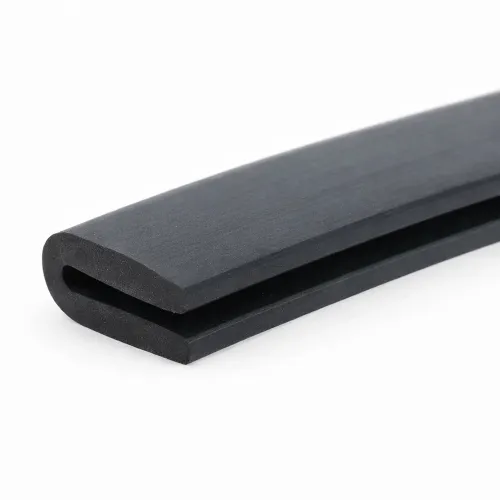

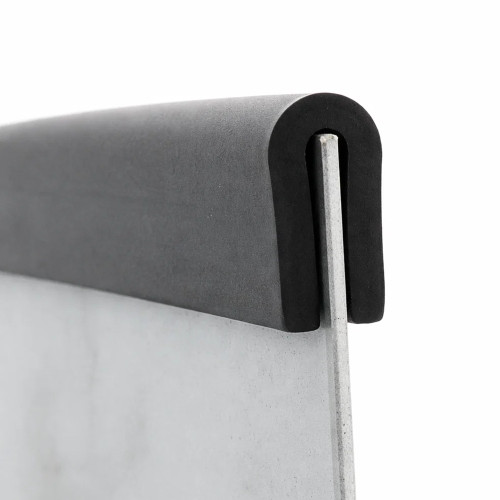

12mm x 7.6mm U Channel Rubber Edge Trim (For 1mm - 2mm Panel) 5m EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £16.62 | £19.95 |
| 2 - 5 | £16.29 | £19.55 |
| 6 - 10 | £15.97 | £19.16 |
| 11 + | £15.65 | £18.78 |
Product Specification
| To Fit Panel Thickness | 1mm - 2mm |
| Roll Length | 5m |
| Overall Depth | 15mm |
| Width | 7.6mm |
| Panel Depth | 12mm |
| Profile | U |
| Colour | Black |
| Material | EPDM |
Frequently Bought Together
Total Price: £0.00
12mm x 7.6mm U Channel Rubber Edge Trim (For 1mm - 2mm Panel) 5m EPDM

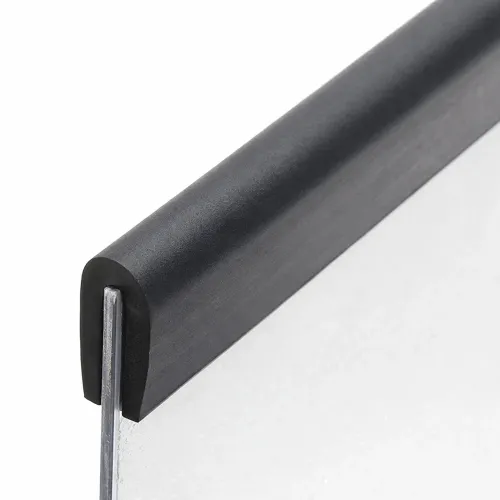

Produced for 1mm - 2mm panels with a 12mm panel depth, 15mm overall depth, 7.6mm width and 5m roll length, this black EPDM u channel rubber edge trim provides edge protection for variable gauge panels and sheet edges. The profile uses a U channel form for wrapping around exposed sheet edges with a secure push on grip while the deeper protection for more prominent edge lines pairs with a practical face width for everyday panel protection.
For the 12mm x 7.6mm profile in a 5m roll, the 1mm - 2mm panel fit and 15mm overall depth make this trim suitable for short runs, prototype builds and site fitting jobs. It helps create a safer handling edge during final assembly and the material choice supports long service in commercial and industrial settings, helping protect exposed edges from handling damage, vibration marks and unfinished surfaces.
To learn more about Edge Protection, see our Guide to Rubber Edge Trim.
Common Applications
- Thin sheet metal and light enclosure edging
- Instrument cases, switch panels and trim finishing
- Exposed sheet edges needing a push on U channel strip
- Repairs, sample testing and short installation runs

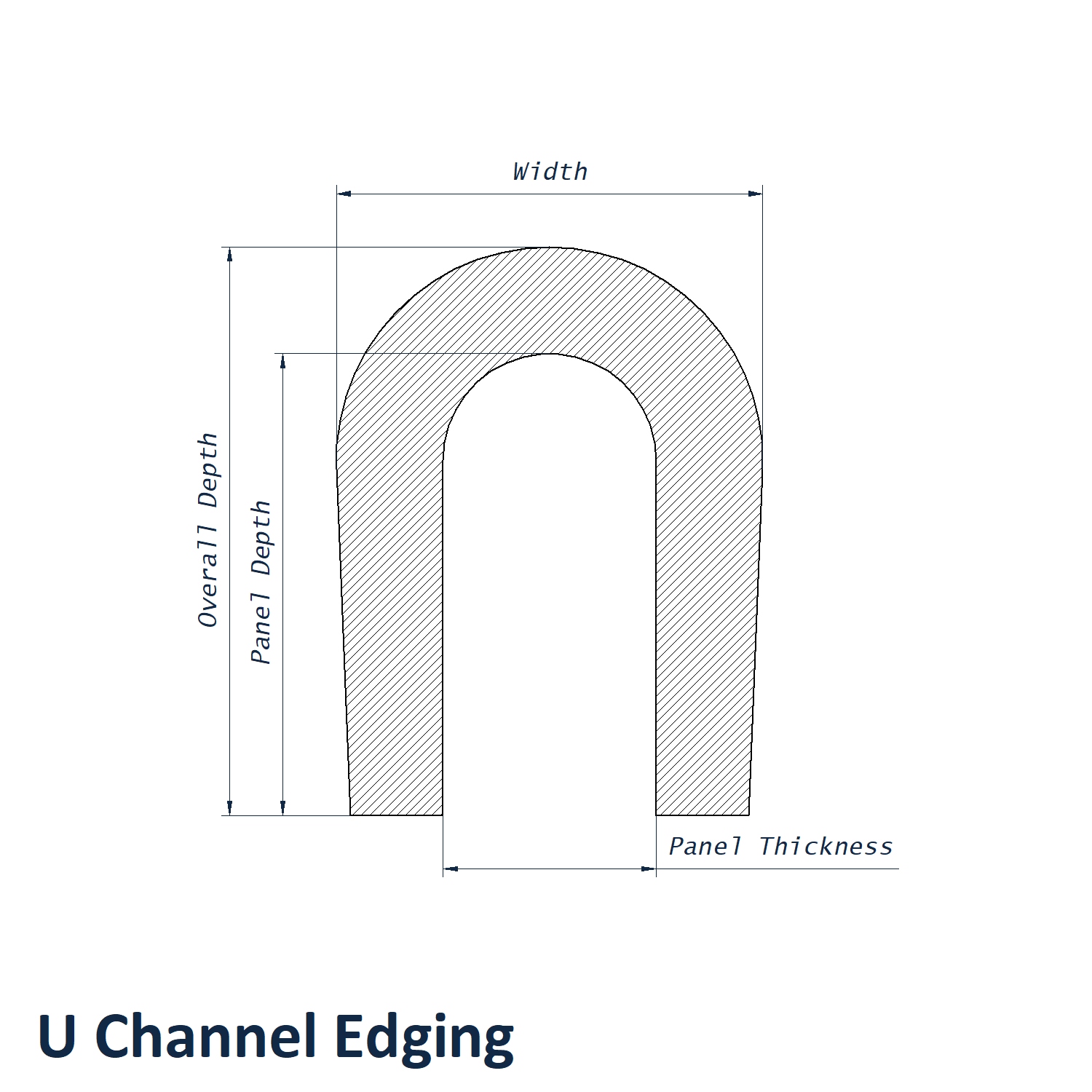

1mm - 2mm U Channel Rubber Edge Trim Dimensions
- To Fit Panel Thickness: 1mm - 2mm
- Roll Length: 5m
- Overall Depth: 15mm
- Width: 7.6mm
- Panel Depth: 12mm
- Profile: U
- Material: EPDM
- Colour: Black
View our full Rubber Edge Trim range or browse our Edging Strips collection.
Need help or buying in bulk?
For sizing support, roll length guidance or bulk order pricing call 01233 713581.
Fri 8.30 am - 3.30 pm
