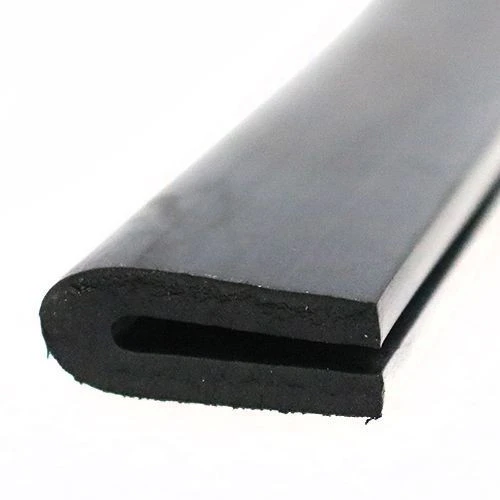

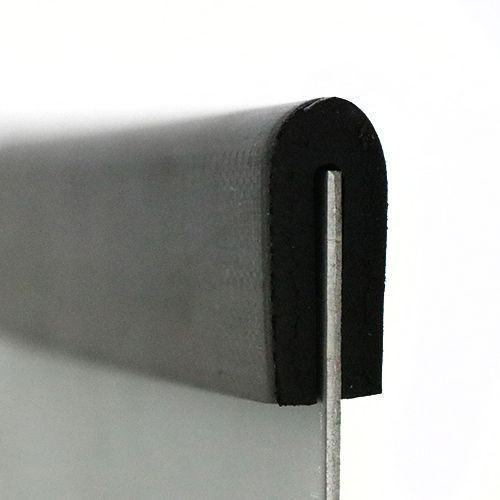

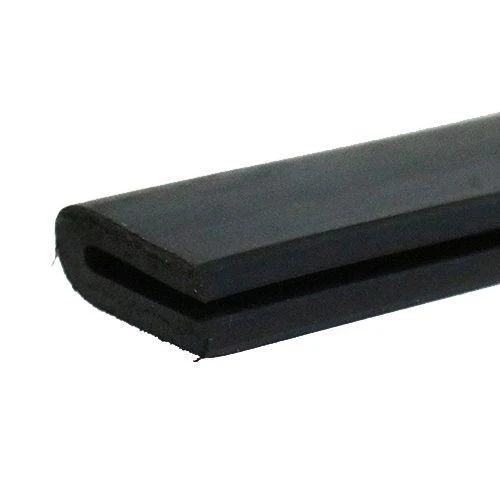

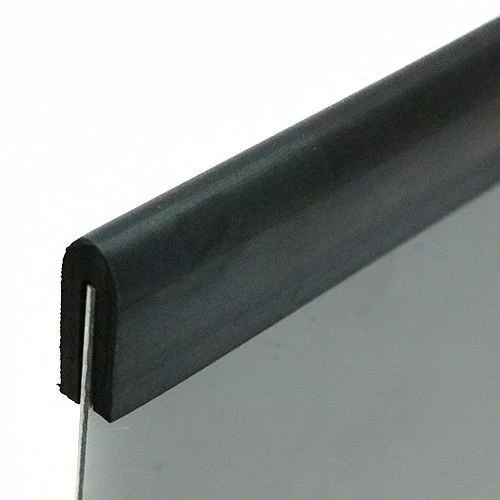

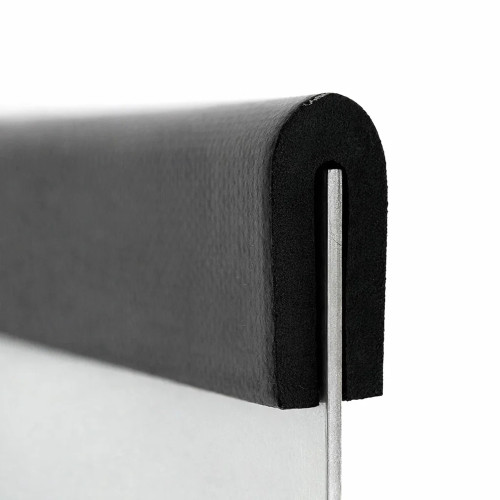

19mm x 10.4mm U Channel Rubber Edge Trim (For 2mm Panel) 5m EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £35.57 | £42.68 |
| 2 - 5 | £34.86 | £41.83 |
| 6 - 10 | £34.16 | £40.99 |
| 11 + | £33.48 | £40.17 |
Product Specification
| To Fit Panel Thickness | 2mm |
| Roll Length | 5m |
| Overall Depth | 23mm |
| Width | 10.4mm |
| Panel Depth | 19mm |
| Profile | U |
| Colour | Black |
| Material | EPDM |
Frequently Bought Together
Total Price: £0.00
19mm x 10.4mm U Channel Rubber Edge Trim (For 2mm Panel) 5m EPDM
Mapped for 2mm panels with a 19mm panel depth, 23mm overall depth, 10.4mm width and 5m roll length, this black EPDM u channel rubber edge trim provides panel finishing for thin sheet, light trim sections and fine enclosure edges. The profile uses a U channel form for wrapping around exposed sheet edges with a secure push on grip while the deep edge coverage for substantial profiles and wide exposed sections pairs with a broader contact face for increased edge coverage.
For the 19mm x 10.4mm profile in a 5m roll, the 2mm panel fit and 23mm overall depth make this trim suitable for short runs, prototype builds and site fitting jobs. It can be cut to suit the panel run before fitting and EPDM is selected for weathering, ozone and moisture resistance, helping protect exposed edges from handling damage, vibration marks and unfinished surfaces.
To learn more about Edge Protection, see our Guide to Rubber Edge Trim.
Common Applications
- Thin sheet metal and light enclosure edging
- Instrument cases, switch panels and trim finishing
- Exposed sheet edges needing a push on U channel strip
- Repairs, sample testing and short installation runs

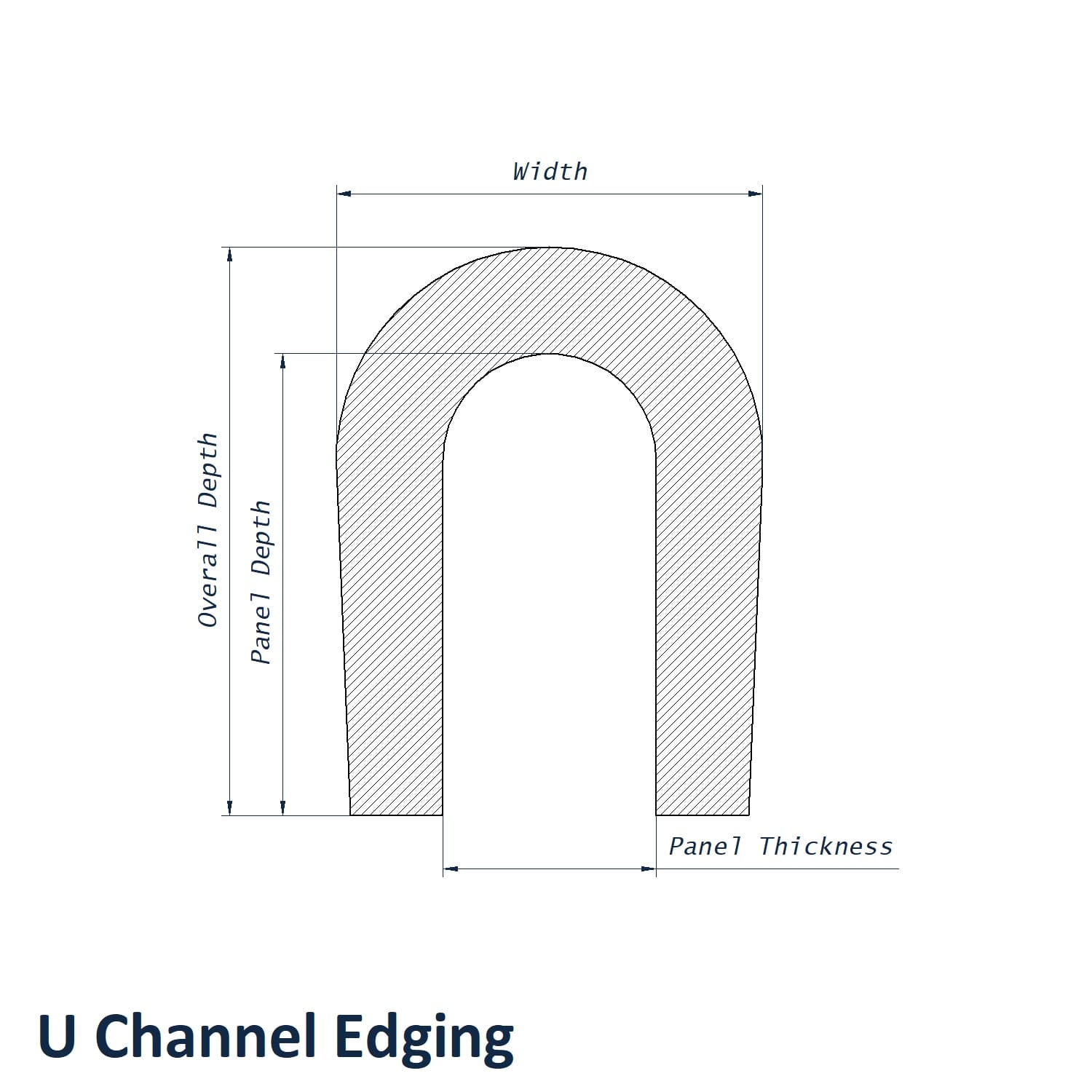

2mm U Channel Rubber Edge Trim Dimensions
- To Fit Panel Thickness: 2mm
- Roll Length: 5m
- Overall Depth: 23mm
- Width: 10.4mm
- Panel Depth: 19mm
- Profile: U
- Material: EPDM
- Colour: Black
View our full Rubber Edge Trim range or browse our Edging Strips collection.
Need help or buying in bulk?
For sizing support, roll length guidance or bulk order pricing call 01233 713581.
Fri 8.30 am - 3.30 pm
