3mm x 8.4mm U Channel Rubber Edge Trim (For 2mm - 4mm Panel) 5m EPDM
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £14.06 | £16.87 |
| 2 - 5 | £13.78 | £16.53 |
| 6 - 10 | £13.50 | £16.20 |
| 11 + | £13.23 | £15.88 |
Product Specification
| To Fit Panel Thickness | 2mm - 4mm |
| Roll Length | 5m |
| Overall Depth | 21mm |
| Width | 8.4mm |
| Panel Depth | 3mm |
| Profile | U |
| Colour | Black |
| Material | EPDM |
Frequently Bought Together
Total Price: £0.00
3mm x 8.4mm U Channel Rubber Edge Trim (For 2mm - 4mm Panel) 5m EPDM

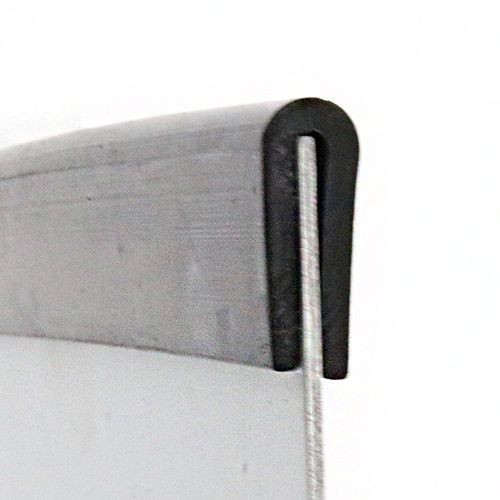

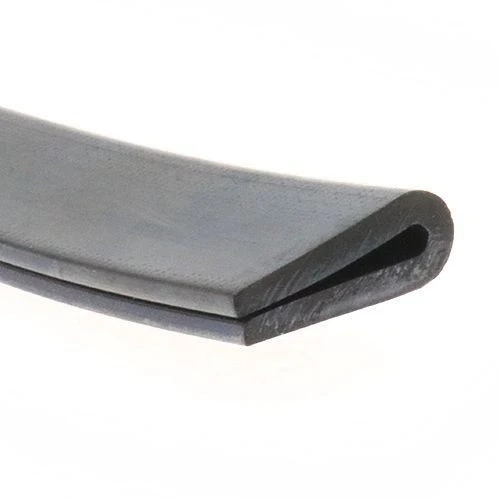

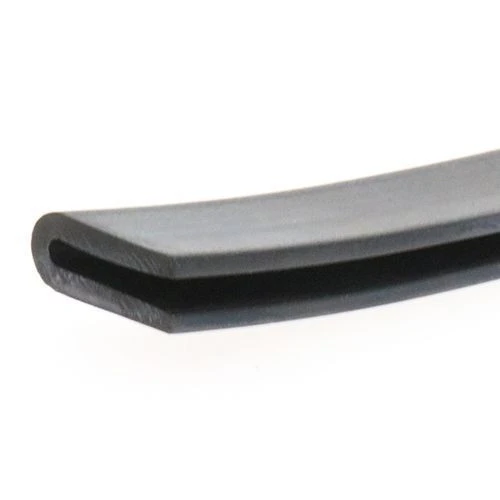

Chosen for 2mm - 4mm panels with a 3mm panel depth, 21mm overall depth, 8.4mm width and 5m roll length, this black EPDM u channel rubber edge trim provides sharp edge coverage for variable gauge panels and sheet edges. The profile uses a U channel form for wrapping around exposed sheet edges with a secure push on grip while the deep edge coverage for substantial profiles and wide exposed sections pairs with a practical face width for everyday panel protection.
For the 3mm x 8.4mm profile in a 5m roll, the 2mm - 4mm panel fit and 21mm overall depth make this trim suitable for short runs, prototype builds and site fitting jobs. It offers a practical trim option for straight or curved panel runs and the material choice supports long service in commercial and industrial settings, helping protect exposed edges from handling damage, vibration marks and unfinished surfaces.
To learn more about Edge Protection, see our Guide to Rubber Edge Trim.
Common Applications
- Thin sheet metal and light enclosure edging
- Instrument cases, switch panels and trim finishing
- Exposed sheet edges needing a push on U channel strip
- Repairs, sample testing and short installation runs

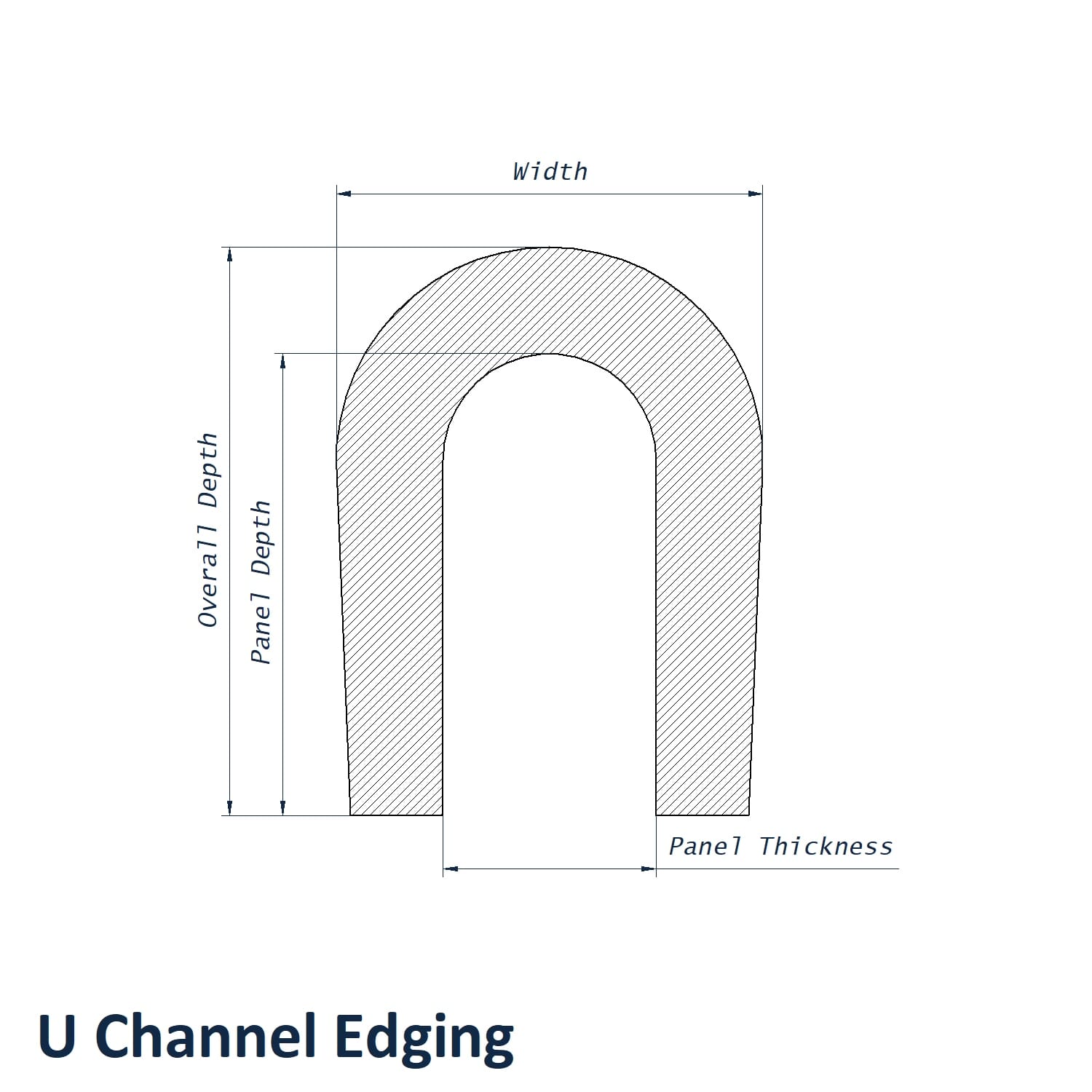

2mm - 4mm U Channel Rubber Edge Trim Dimensions
- To Fit Panel Thickness: 2mm - 4mm
- Roll Length: 5m
- Overall Depth: 21mm
- Width: 8.4mm
- Panel Depth: 3mm
- Profile: U
- Material: EPDM
- Colour: Black
View our full Rubber Edge Trim range or browse our Edging Strips collection.
