28mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon

Product code: TC095
View All Specifications
28mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
28mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
28mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
28mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
28mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
28mm Saddle Tube Connector (M6 Thread) - 20mm Length (Expanding) - 2mm Wall | Nylon
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £0.86 £1.03
100 - 249 £0.72 £0.87
250 - 499 £0.60 £0.72
500 - 999 £0.50 £0.60
1000 + £0.42 £0.51

£1.03 / each


Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Outside Diameter 28mm
Wall Thickness 2.0mm
Internal Length 20mm
Thread Size M6
Style Expanding
Material Nylon

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

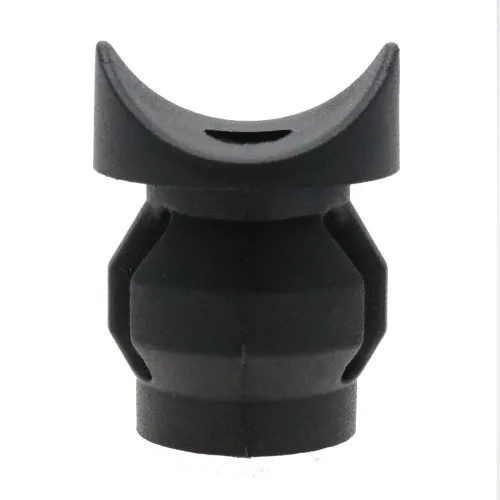

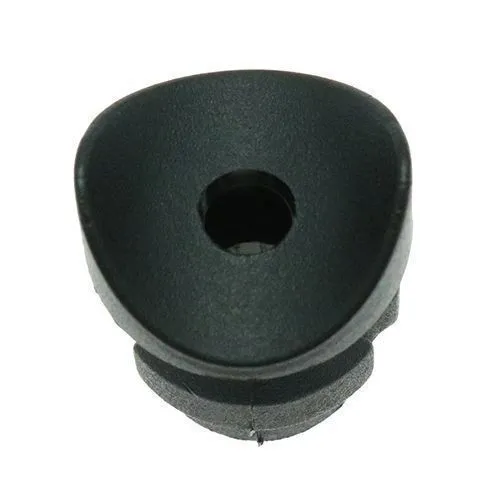

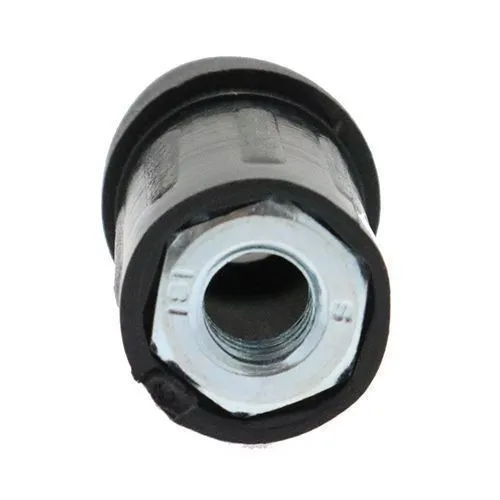

28mm Saddle Tube Connector – 2mm Wall | M6 Thread, Nylon (Expanding)

This 28mm saddle tube connector fits round sections specified with a 2mm wall thickness. The Nylon body and M6 threaded connection allow a mating component to be fixed into a tubular assembly, with a 20mm internal length for insertion.

What Are Saddle Tube Connectors?

A saddle connector helps create a tube-to-tube junction where a round section needs an internally positioned threaded connection. Matching the outside tube diameter and wall thickness is essential. We also offer tube connectors for round and square tubing for alternative frame geometries.

Common Applications

  • Storage Systems: Joining compatible circular tube members in lightweight storage racks and organising frames.
  • Furniture Repairs: Replacing a compatible internal junction fitting in a round tubular furniture frame.
  • Furniture Frames: Joining round tubular sections in compatible chair, table or shelving frameworks where an M6 connection is specified.
  • Equipment Supports: Creating T-shaped connections in non-structural round-tube support frames and protective assemblies.

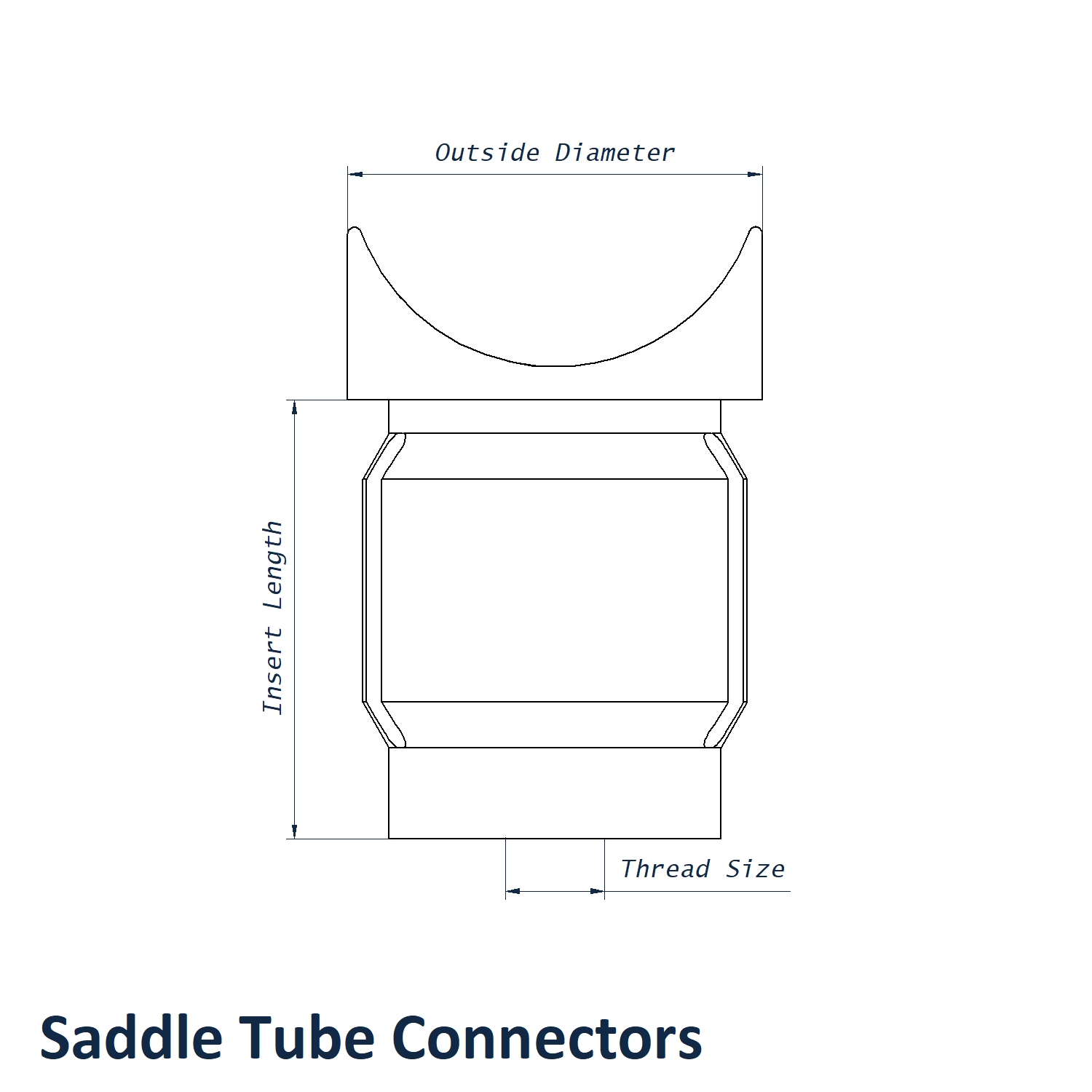

28mm M6 Saddle Tube Connector Dimensions

  • Outside Diameter: 28mm
  • Wall Thickness: 2mm
  • Internal Length: 20mm
  • Thread Size: M6
  • Material: Nylon
  • Style: Expanding

Key Benefits

  • Nylon construction provides a non-metallic connector body for the tubular assembly.
  • A separate threaded connection allows suitable assemblies to be dismantled for adjustment or repair.
  • The 28mm outside diameter specification helps identify suitable round tube sections.
  • The M6 threaded connection provides a defined fastening point for compatible components.

Compare other threaded saddle tube fittings to select the dimensions required by your frame. If you need help selecting the correct connector, call us on 01233 713581.
