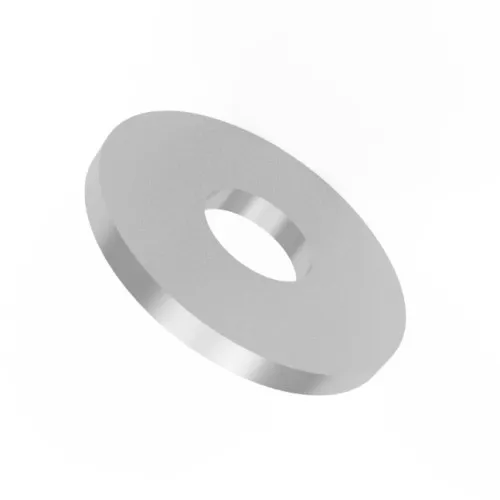

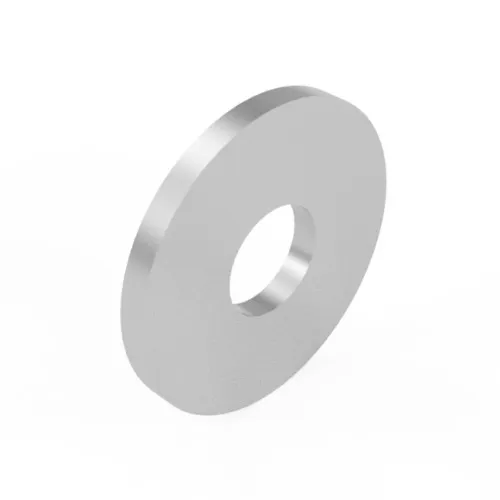

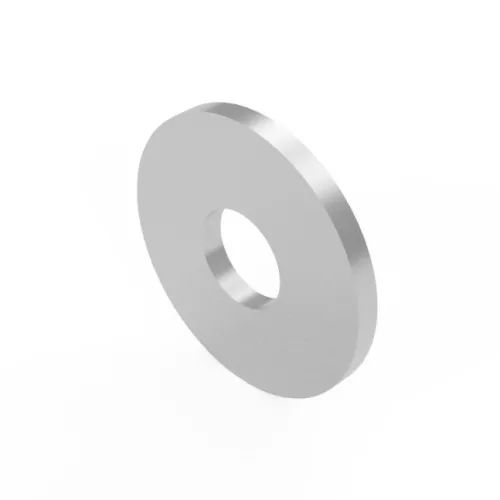

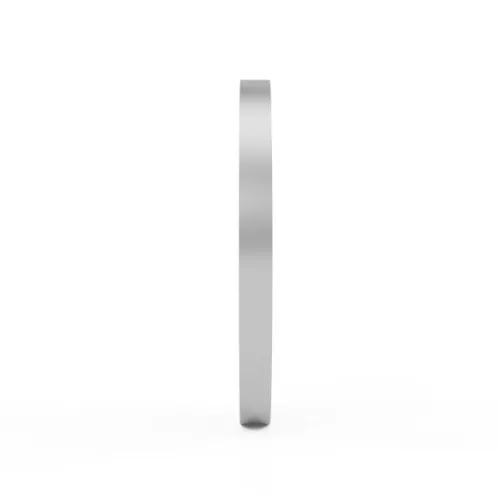

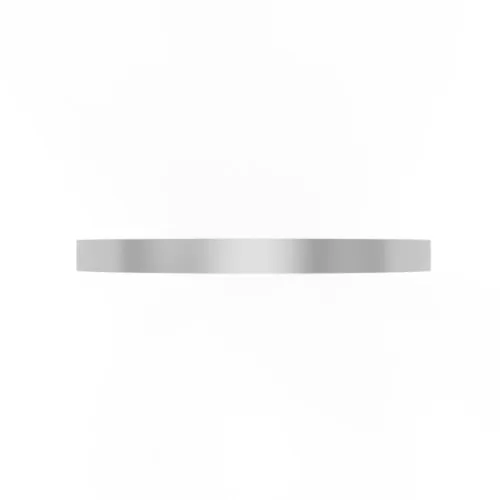

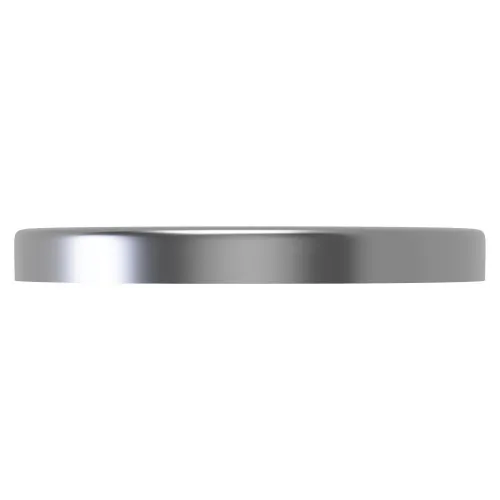

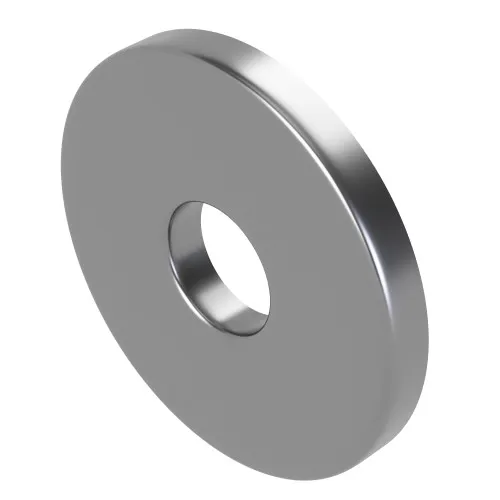

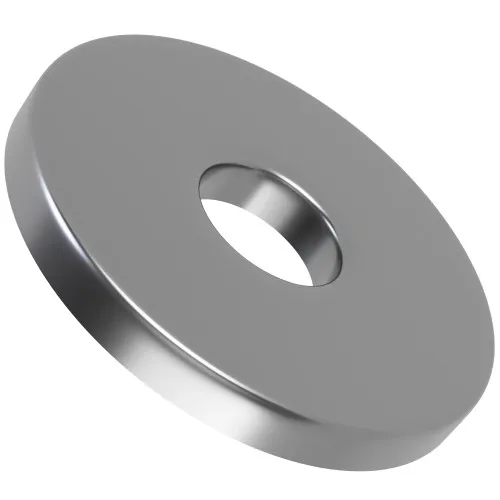

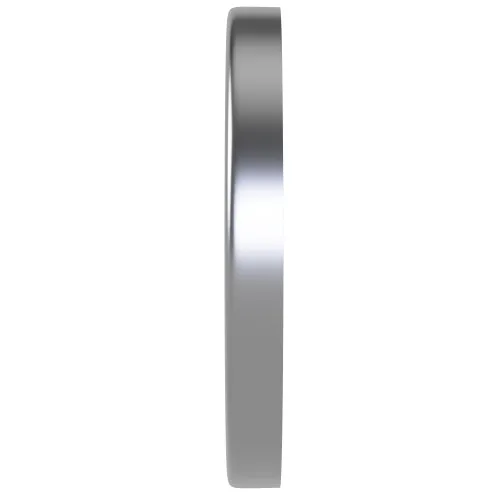

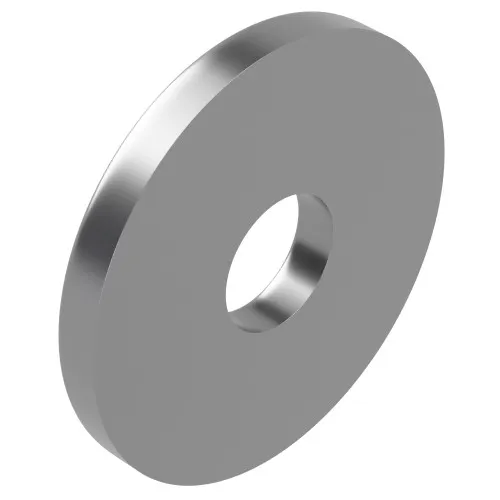

M20 (22mm) x 72mm Wood Construction Washer - DIN 440R | A2 Stainless Steel

Product code: W440R-M20-A2
View All Specifications
M20 (22mm) x 72mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
M20 (22mm) x 72mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
M20 (22mm) x 72mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
M20 (22mm) x 72mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
M20 (22mm) x 72mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
M20 (22mm) x 72mm Wood Construction Washer - DIN 440R | A2 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 99 £1.85 £2.22
100 - 499 £1.68 £2.02
500 - 999 £1.35 £1.62
1000 - 9999 £1.21 £1.45
10000 + £1.13 £1.36

£2.22 / each


Up to 23 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 5,154 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
5,154 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Size M20
Internal Diameter 22.0mm
Outside Diameter 72.0mm
Thickness 6.00mm
Standard DIN 440R
Material A2 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M20 Wood Construction Washer - 22mm ID x 72mm OD | DIN 440R | A2 Stainless Steel

This large flat washer for timber is designed for timber framing and general structural joinery, providing a broad bearing surface beneath compatible bolts, coach screws or nuts. The M20 washer has a 22.0mm internal diameter and 72.0mm outside diameter which helps spread clamping force across the timber and reduce local crushing around the fixing point. The A2 Stainless Steel material is well suited to general construction and outdoor timber projects where good corrosion resistance is required.

What Are Wood Construction Washers?

DIN 440R and DIN 1052 Wood Construction Washers are intended for structural timber fastening where load spreading is important. Their broad round profile helps prevent concentrated clamping force from damaging the timber around the fixing point.

Common Applications

  • Beam and Post Connections: Reduces local crushing around bolted joints in timber beams, posts and support structures.
  • General Construction: Provides a broad bearing surface around compatible timber fasteners in structural and outdoor construction.
  • Fencing and Gates: Provides additional bearing area around bolts used in timber posts, rails and gate assemblies.
  • Agricultural Buildings: Provides reinforced washer support for timber frames, sheds and external structural assemblies.

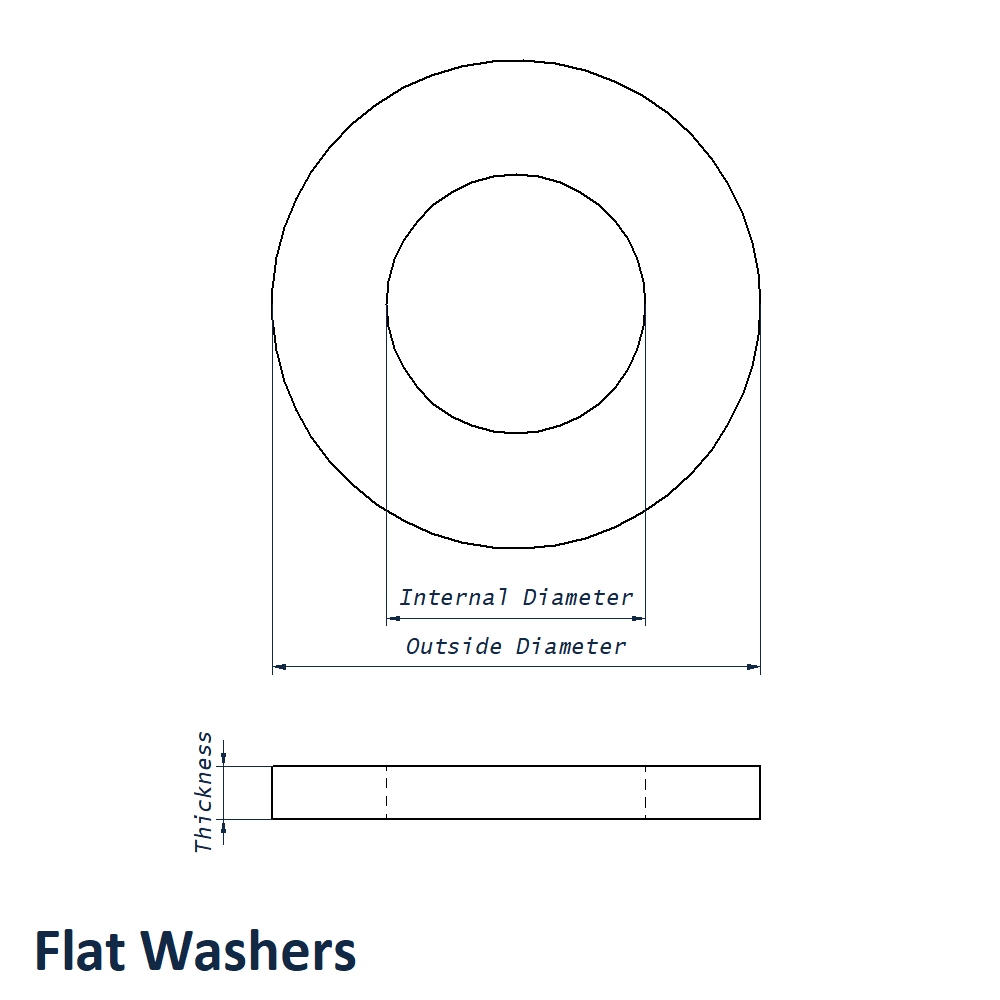

M20 DIN 440R Wood Construction Washer Dimensions

  • Size: M20
  • Internal Diameter: 22.0mm
  • Outside Diameter: 72.0mm
  • Thickness: 6.00mm
  • Material: A2 Stainless Steel
  • Standard: DIN 440R

Key Benefits

  • Large bearing surface helps reduce local crushing and indentation in softer timber.
  • Suitable for use beneath compatible bolt heads or nuts in timber framing and structural joinery.
  • 22.0mm internal diameter provides clearance around the compatible bolt or coach screw.
  • 6.00mm thickness provides the specified washer section for this size.

Browse the complete Timber Construction Washers range for alternative internal diameters, outside diameters and stainless steel grades. We can help you choose the right option on 01233 713581.
