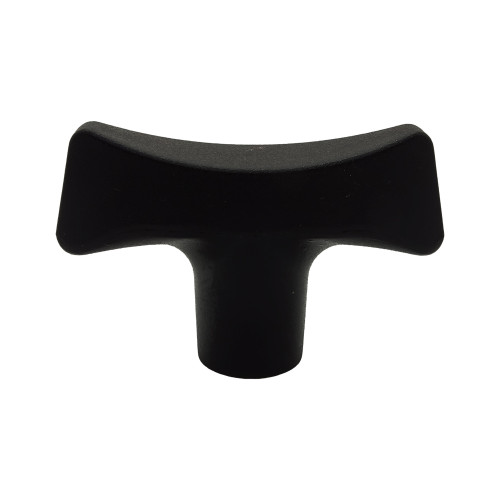

M8 Saddle Wing Screw Knob - Female

M8 Saddle Wing Screw Knobs – Female – 72mm Grip Width & 21mm Handle Height | Vital Parts – WING0301

Our Wing Screws are sleek ergonomic components designed for projects where frequent manual adjustments are required. Their twin t-arm profile provides a comfortable grip and allows users to apply high torque with ease making them ideal for industrial and agricultural machinery such as fertiliser spreaders and equipment requiring regular tightening and release.

What are Saddle Wing Screws

Saddle Wing Screw Knobs feature two curved t-arms that enhance grip and enable controlled twisting movement. The saddle-shaped design gives space for fingers to lock securely in place improving safety and control during use. They are manufactured from high-quality Phenolic Plastic (Duroplast) in a matte black finish which provides excellent durability and fluid movement due to its anti-slip texture.

Material Properties

Phenolic Plastic is a dense heat-resistant material commonly used in engineering and heavy-duty applications. It offers exceptional strength rigidity and resistance to heat and chemicals. This material is rated with a UL94 Flammability Classification of V-0 at a thickness of 3.0mm or more and V-1 at a thickness below 3.0mm.

Flame Ratings Explained

• HB: Slow horizontal burn under 3 inches per minute or self-extinguishing before 5 inches
• V-0: Vertical burning stops within 10 seconds with no flaming drips
• V-1: Vertical burning stops within 60 seconds with no flaming drips
• V-2: Vertical burning stops within 60 seconds but flaming drips may occur

Wing Screw Key Features:

• Ergonomic t-arm design for maximum grip and torque
• Available in male and female threaded variants
• Matt finish provides a non-slip surface and hides wear marks
• Durable corrosion-resistant threads for long-term reliability

Key Applications and Industries

Saddle Wing Screw Knobs are widely used across manufacturing agricultural machinery hardware assembly and mechanical engineering. Their easy-grip design makes them perfect for frequent tightening loosening or positioning tasks such as fastening guards covers and adjustable mechanisms where a secure hand-tight connection is required.

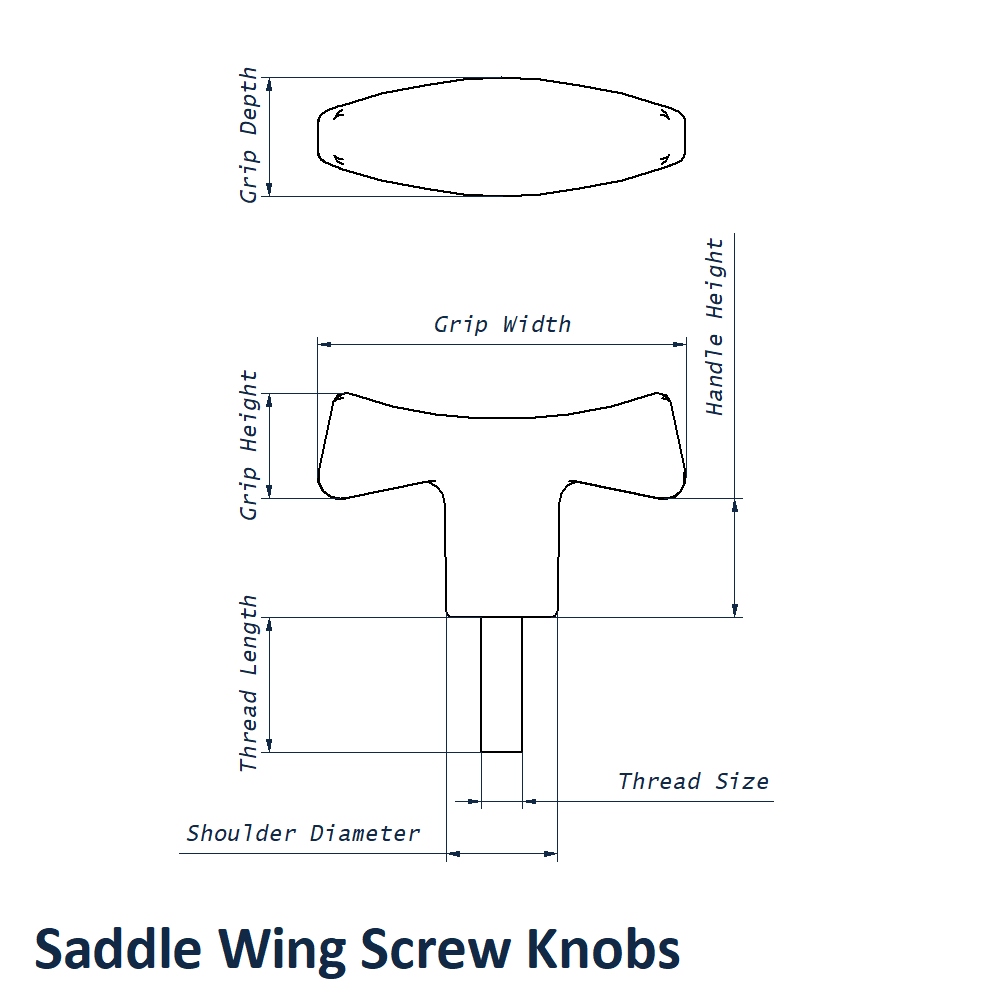

Technical Specifications

• Thread Size: M8
• Grip Width: 72mm
• Handle Height: 21mm
• Grip Height: 21mm
• Grip Depth: 23mm
• Shoulder Diameter: 21mm

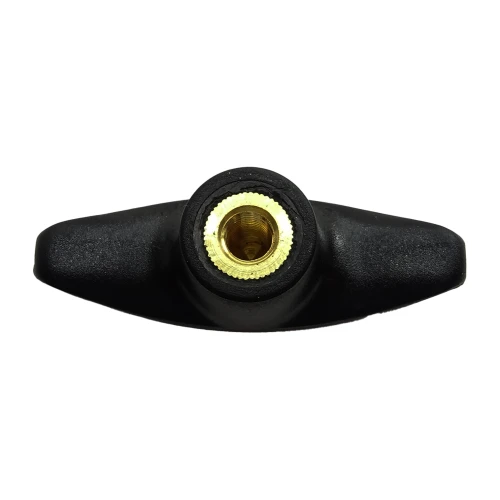

• Material: Phenolic Plastic with Brass Thread
• Material: Phenolic Plastic (Duroplast)
• Thread Option: Female
• Finish: Matte black anti-slip surface
• Flammability Rating: UL94 V-0 ≥ 3.0mm, UL94 V-1 < 3.0mm
• Temperature Resistance: High heat tolerance and chemical resistance
• Compliance: RoHS and REACH compliant

Benefits:

• Comfortable and secure grip reduces strain during operation
• High strength and impact resistance for demanding environments
• Attractive matte finish maintains appearance over time
• Available in multiple sizes for flexible installation
• Quick manual adjustment without tools

Why Choose Vital Parts?

We supply a complete range of Saddle Wing Screw Knobs suitable for industrial, agricultural and commercial applications. Our products are engineered for reliability and ease of use providing consistent quality and performance. With UK stock and fast delivery we ensure you get the parts you need when you need them.

• Fast UK delivery on stocked knob types
• High quality materials for long-term durability
• Technical support to help specify the right component

If you need assistance selecting the right size or would like to discuss custom options , contact our expert team at 01233 713581.
