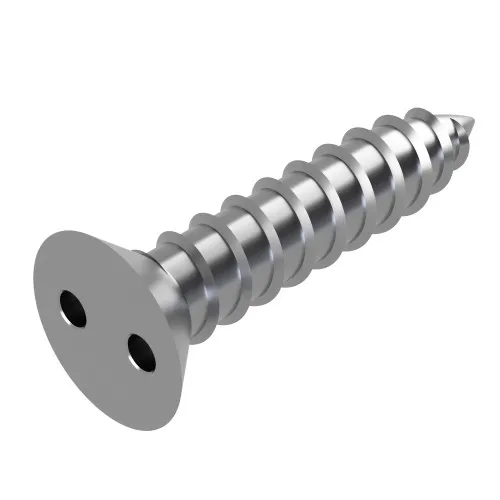

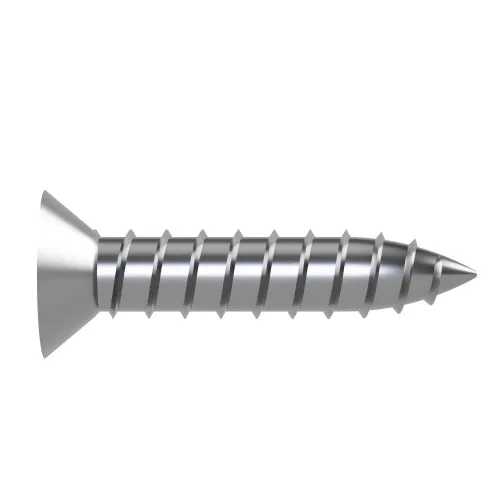

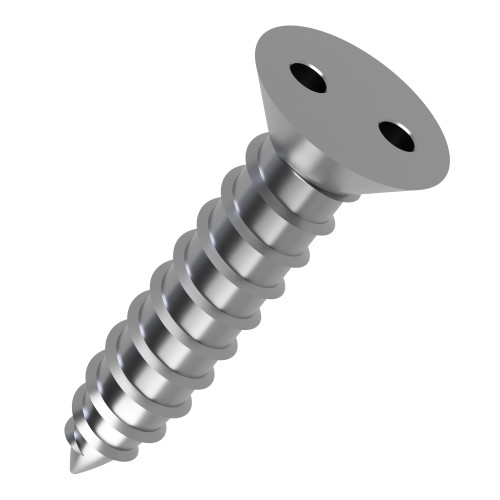

2.9mm x 19mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.76 | £0.91 |
| 100 - 499 | £0.72 | £0.86 |
| 500 - 999 | £0.57 | £0.68 |
| 1000 + | £0.38 | £0.45 |
Product Specification
| Thread Size | 2.9mm |
| Length | 19.0mm |
| Head Diameter | 5.5mm |
| Head Height | 1.70mm |
| End Type | AB |
| Drive Type | Two Hole (Snake Eye) |
| Drive | Security TH3 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
2.9mm x 19mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
Manufactured for signage use, this 2.9mm x 19mm snake eye sheet metal screw gives a practical self tapping option for assembling instrument housings without a separate nut.
The Snake Eye drive supports positive tool engagement while the non-standard security countersunk geometry helps the head sit cleanly after tightening. A2 stainless steel supports corrosion resistance and consistent performance in signage work where secure fixing in prepared holes is required.
Common Applications
- Fastening equipment flanges
- Fastening internal trim plates
- Fixing equipment bezels
- Securing access panels

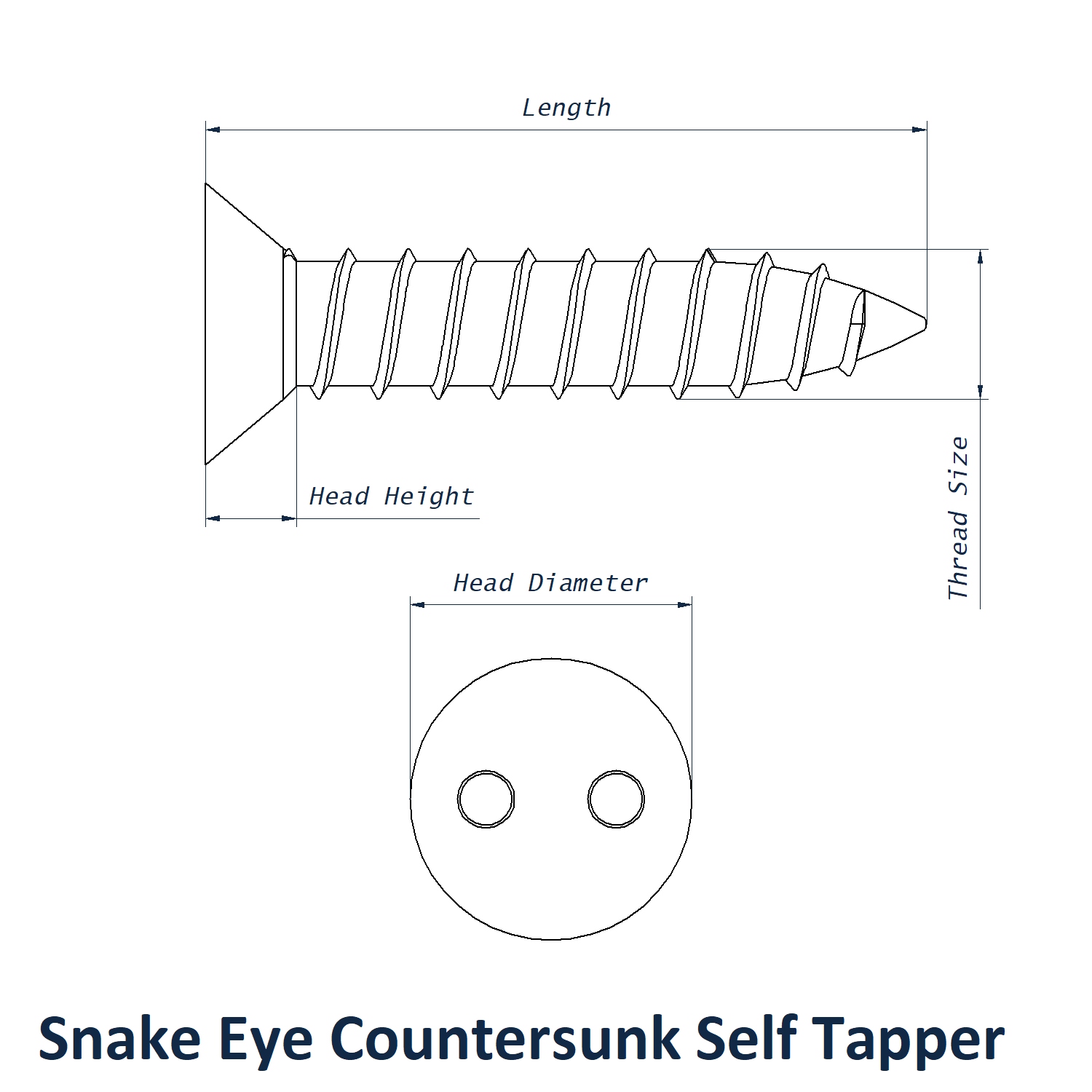

2.9mm x 19mm Snake Eye Countersunk Screw Dimensions
- Thread Size: 2.9mm
- Length: 19mm
- Head Diameter: 5.5mm
- Head Height: 1.70mm
- End Type: AB
- Drive: Security TH3
- Drive Type: Two Hole (Snake Eye)
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
