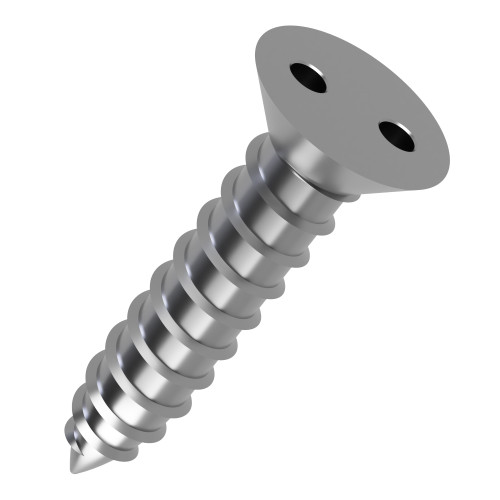

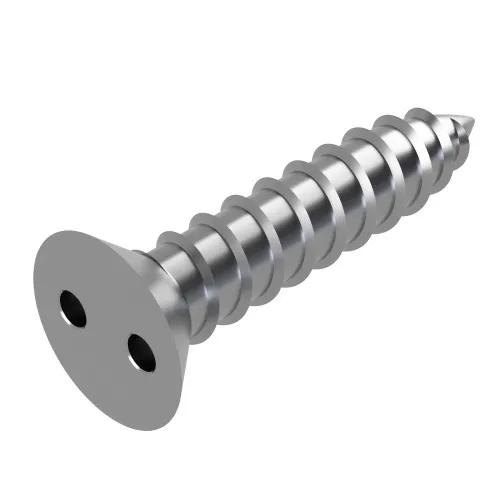

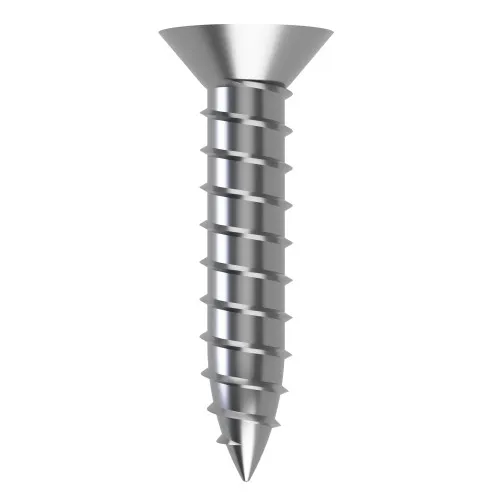

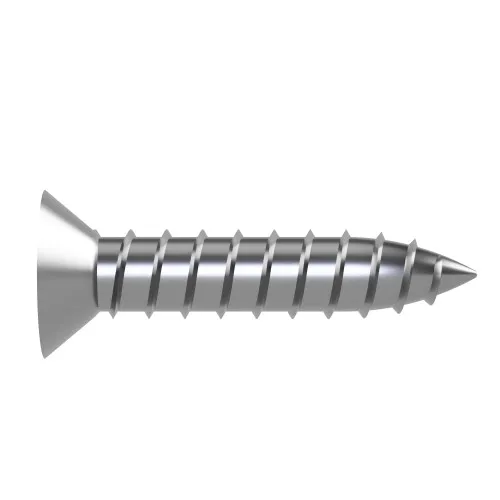

2.9mm x 32mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.10 | £1.32 |
| 100 - 499 | £1.05 | £1.26 |
| 500 - 999 | £0.82 | £0.99 |
| 1000 + | £0.55 | £0.66 |
Product Specification
| Thread Size | 2.9mm |
| Length | 32.0mm |
| Head Diameter | 5.5mm |
| Head Height | 1.70mm |
| End Type | AB |
| Drive Type | Two Hole (Snake Eye) |
| Drive | Security TH3 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
2.9mm x 32mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
When the fixing must sit into the panel face, this 2.9mm x 32mm recessed head screw helps complete fixing ventilation cover plates with a neat countersunk finish.
With a 1.70mm head height and 5.5mm head diameter, the design gives controlled seating in countersunk holes. A2 stainless steel supports corrosion resistance and consistent performance in retail fixture work where reliable long term fixing is required.
Common Applications
- Fixing junction box covers
- Fixing folded sheet parts
- Retaining sheet metal trims
- Attaching safety cover panels

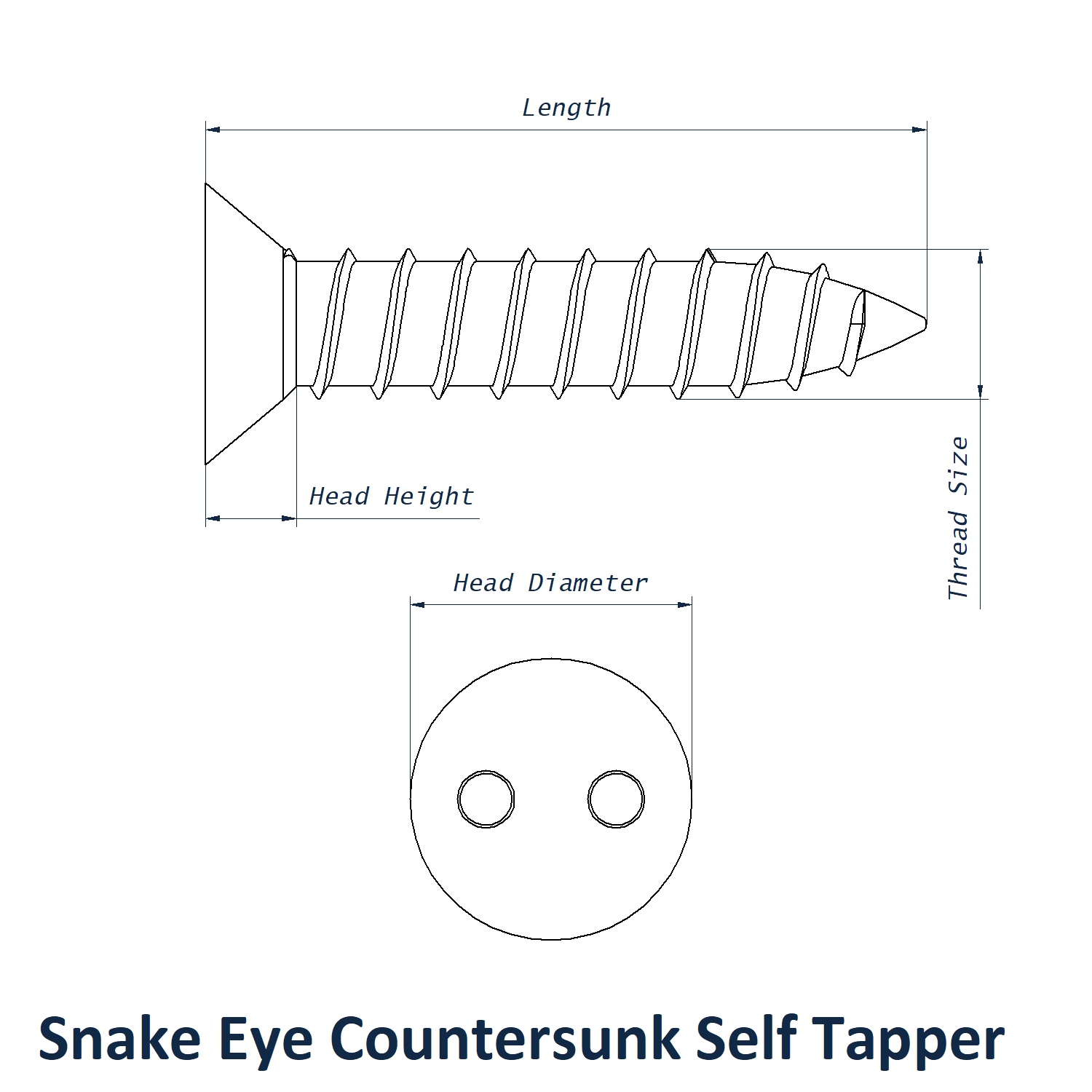

2.9mm x 32mm Snake Eye Countersunk Screw Dimensions
- Thread Size: 2.9mm
- Length: 32mm
- Head Diameter: 5.5mm
- Head Height: 1.70mm
- End Type: AB
- Drive: Security TH3
- Drive Type: Two Hole (Snake Eye)
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
View our full Countersunk Self Tapping Screws Range. Explore more Self Tapping Screws for related fastening options.
