4.2mm x 9.5mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.02 | £1.23 |
| 100 - 499 | £0.97 | £1.16 |
| 500 - 999 | £0.77 | £0.92 |
| 1000 + | £0.51 | £0.61 |
Product Specification
| Thread Size | 4.2mm |
| Length | 9.5mm |
| Head Diameter | 7.8mm |
| Head Height | 2.50mm |
| End Type | AB |
| Drive Type | Two Hole (Snake Eye) |
| Drive | Security TH5 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
4.2mm x 9.5mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
Useful for production and repair tasks, this 4.2mm x 9.5mm countersunk assembly screw supports fastening machine guards with a flush head design.
The 7.8mm head diameter provides a practical seating area and the Security TH5 drive helps maintain control during installation. A2 stainless steel supports corrosion resistance and consistent performance in display hardware work where firm panel hold is required.
Common Applications
- Fixing enclosure trims
- Securing removable maintenance covers
- Fixing signage plates
- Retaining service plates

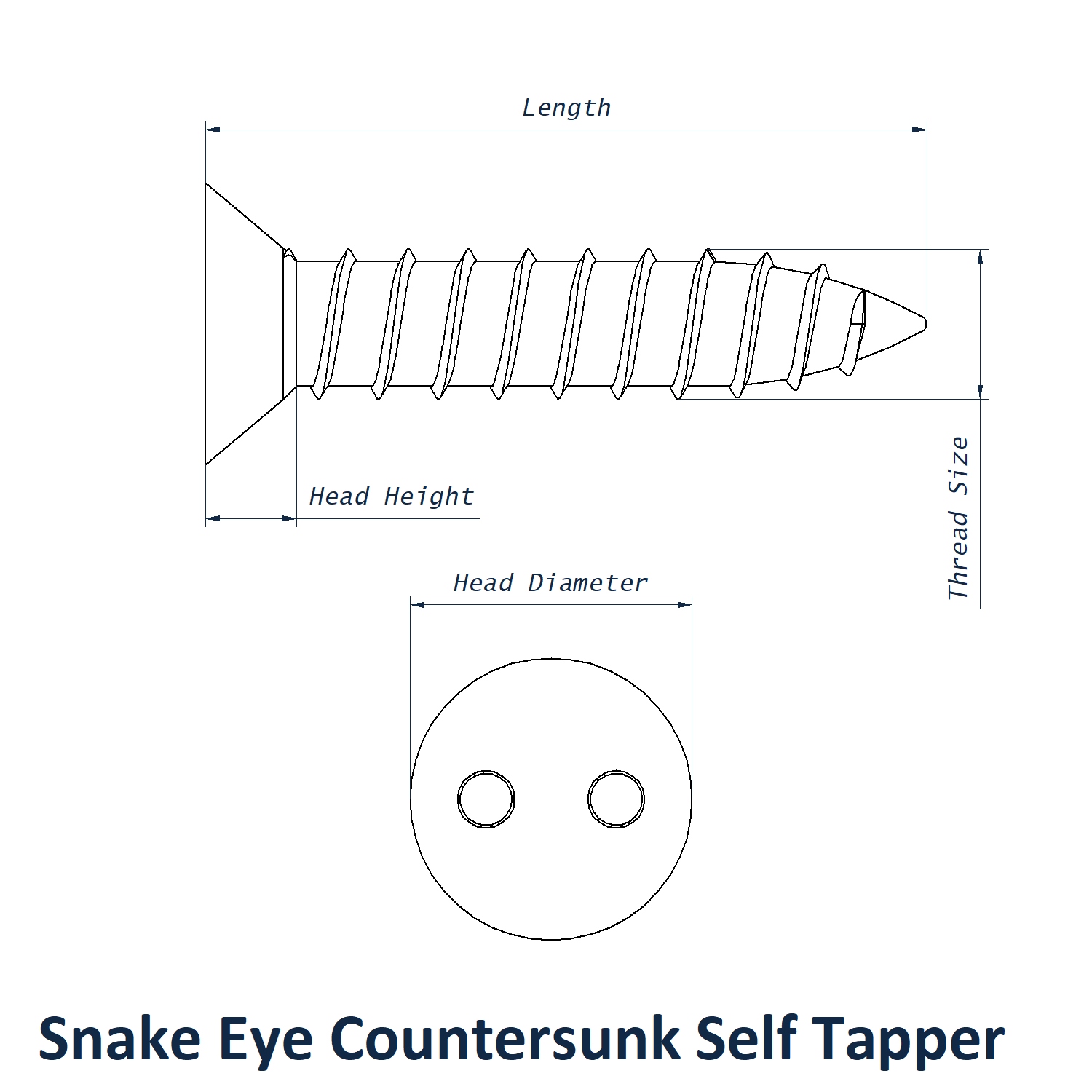

4.2mm x 9.5mm Snake Eye Countersunk Screw Dimensions
- Thread Size: 4.2mm
- Length: 9.5mm
- Head Diameter: 7.8mm
- Head Height: 2.50mm
- End Type: AB
- Drive: Security TH5
- Drive Type: Two Hole (Snake Eye)
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
For more sizes, view our Countersunk Self Tapping Screws Range. Related fixing options are available in Self Tapping Screws.
