4.2mm x 32mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.82 | £0.99 |
| 100 - 499 | £0.78 | £0.94 |
| 500 - 999 | £0.62 | £0.75 |
| 1000 + | £0.42 | £0.50 |
Product Specification
| Thread Size | 4.2mm |
| Length | 32.0mm |
| Head Diameter | 7.8mm |
| Head Height | 2.50mm |
| End Type | AB |
| Drive Type | Two Hole (Snake Eye) |
| Drive | Security TH5 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
4.2mm x 32mm Snake Eye Countersunk AB Self Tapping Screw | A2 Stainless Steel
For assemblies requiring a clean external face, this 4.2mm x 32mm self cutting countersunk screw is designed around fixing metal back plates in instrument housing work.
A2 stainless steel supports corrosion resistance and consistent performance in instrument housing work where reliable service access is required. The AB end helps form a mating thread, making it useful for flush fixing screw work, countersunk fastener assemblies and assembly screw fitting.
Common Applications
- Fixing protective corner guards
- Mounting inspection covers
- Fixing sheet steel panels
- Mounting cable entry plates

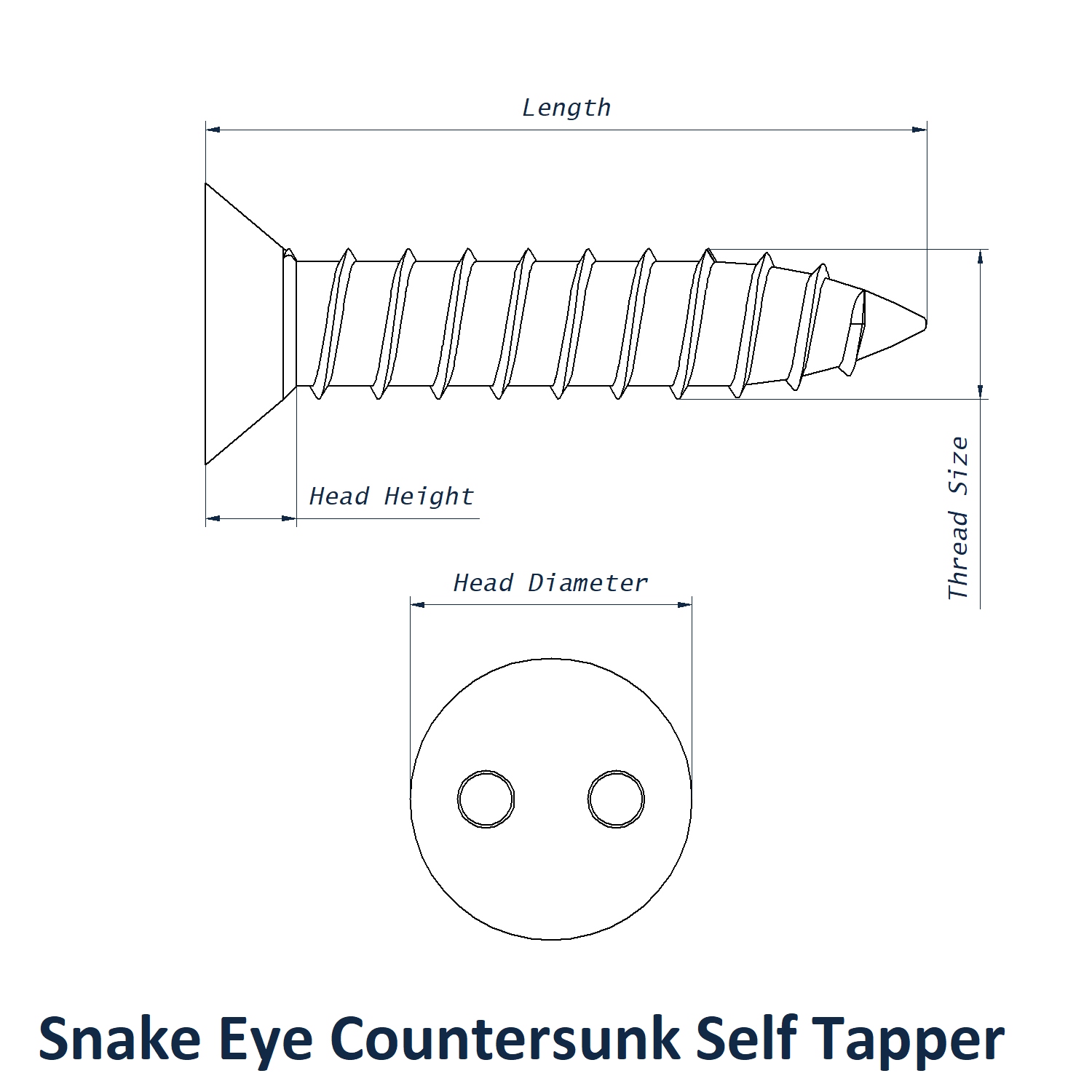

4.2mm x 32mm Snake Eye Countersunk Screw Dimensions
- Thread Size: 4.2mm
- Length: 32mm
- Head Diameter: 7.8mm
- Head Height: 2.50mm
- End Type: AB
- Drive: Security TH5
- Drive Type: Two Hole (Snake Eye)
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
