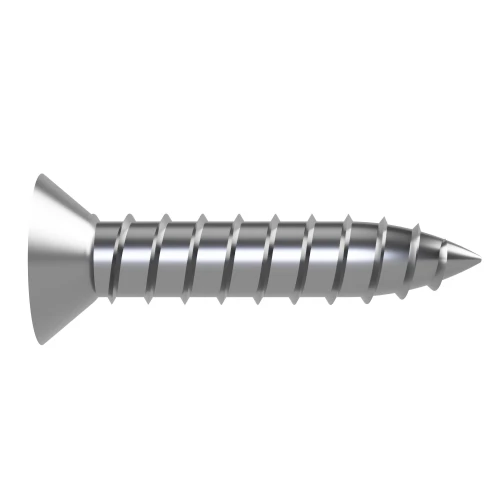

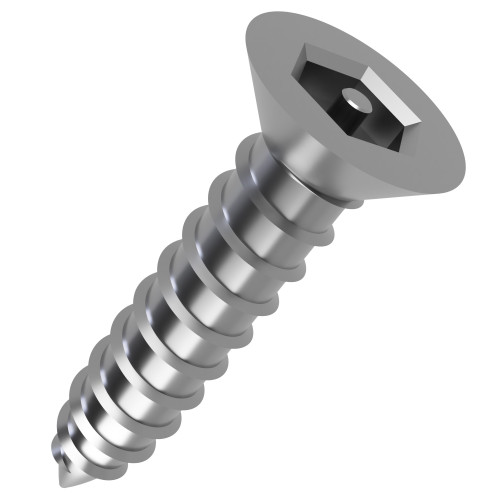

4.8mm x 19mm Pin Hex Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.12 | £0.14 |
| 100 - 499 | £0.10 | £0.12 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 + | £0.04 | £0.05 |
£0.14 / each
.png)
Product Specification
| Thread Size | 4.8mm |
| Length | 19.0mm |
| Head Diameter | 9.3mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Pin Hex |
| Drive | Security HM3 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

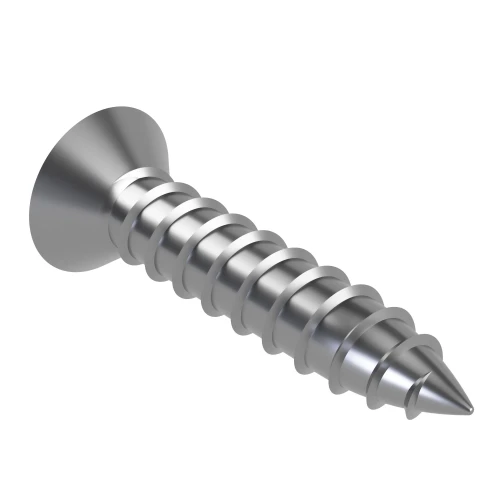

4.8mm x 19mm Pin Hex Countersunk AB Self Tapping Screw | A2 Stainless Steel
Made for vehicle body building maintenance and production tasks, this 4.8mm x 19mm self cutting countersunk screw is suited to fastening internal trim plates in prepared or compatible materials.
The head geometry is suited to countersunk preparation, helping the fitted screw sit level with the panel face for a tidier result. A2 stainless steel supports corrosion resistance and consistent performance in vehicle body building work where strong sheet retention is required.
Common Applications
- Mounting equipment nameplates
- Fixing sheet steel panels
- Fixing junction box covers
- Installing fabricated brackets

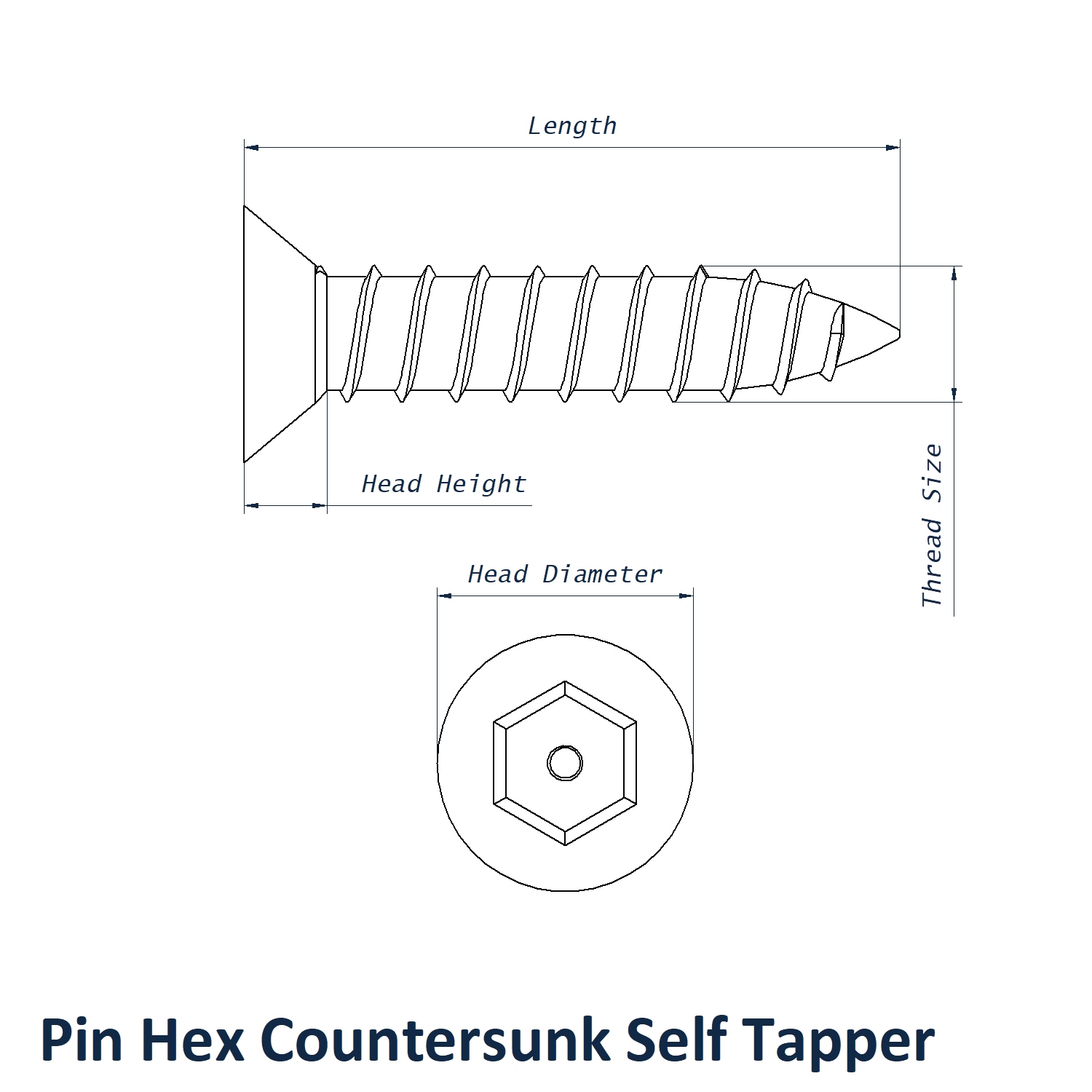

4.8mm x 19mm Pin Hex Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 19mm
- Head Diameter: 9.3mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security HM3
- Drive Type: Pin Hex
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
