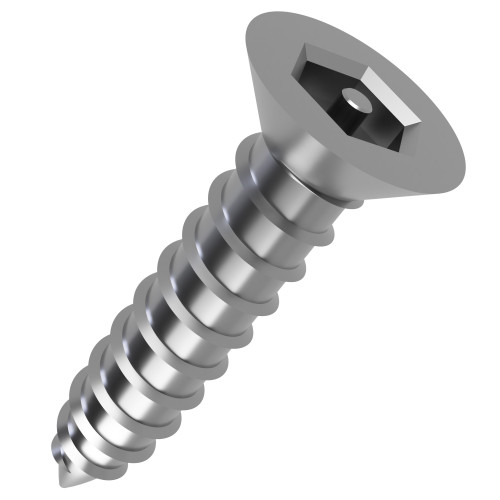

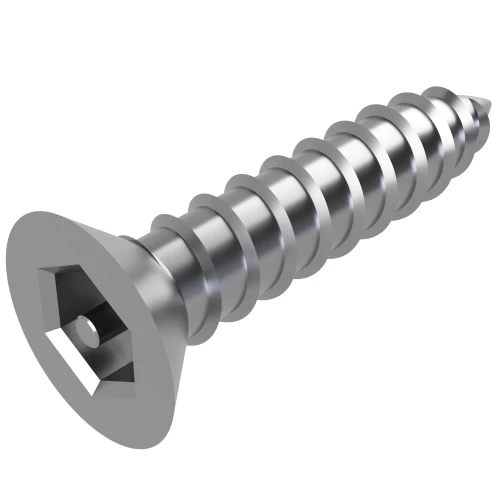

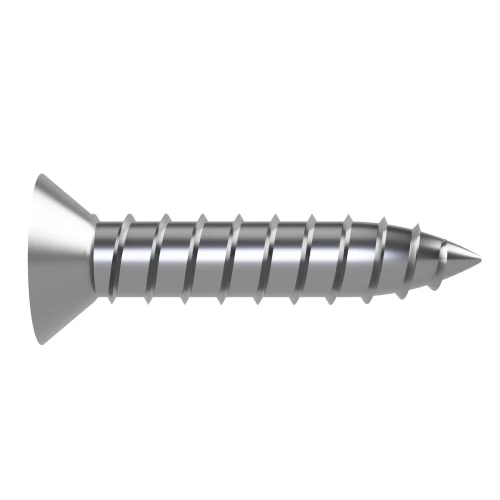

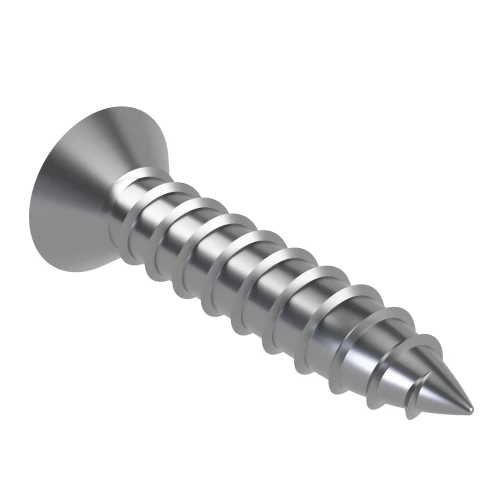

4.8mm x 50mm Pin Hex Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.12 | £0.14 |
| 100 - 499 | £0.10 | £0.12 |
| 500 - 999 | £0.08 | £0.10 |
| 1000 + | £0.04 | £0.05 |
£0.14 / each
.png)
Product Specification
| Thread Size | 4.8mm |
| Length | 50.0mm |
| Head Diameter | 9.3mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Pin Hex |
| Drive | Security HM3 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
4.8mm x 50mm Pin Hex Countersunk AB Self Tapping Screw | A2 Stainless Steel
Ideal for attaching safety cover panels, this 4.8mm x 50mm AB thread forming screw combines an AB point with a Security HM3 drive to support quick positioning and controlled tightening.
The Pin Hex drive helps reduce tool slip during fitting and the low head profile is useful where clearance is limited. A2 stainless steel supports corrosion resistance and consistent performance in industrial machinery work where improved vibration resistance is required.
Common Applications
- Fastening internal trim plates
- Carrying out maintenance repairs
- Mounting metal retainer plates
- Securing machinery side panels

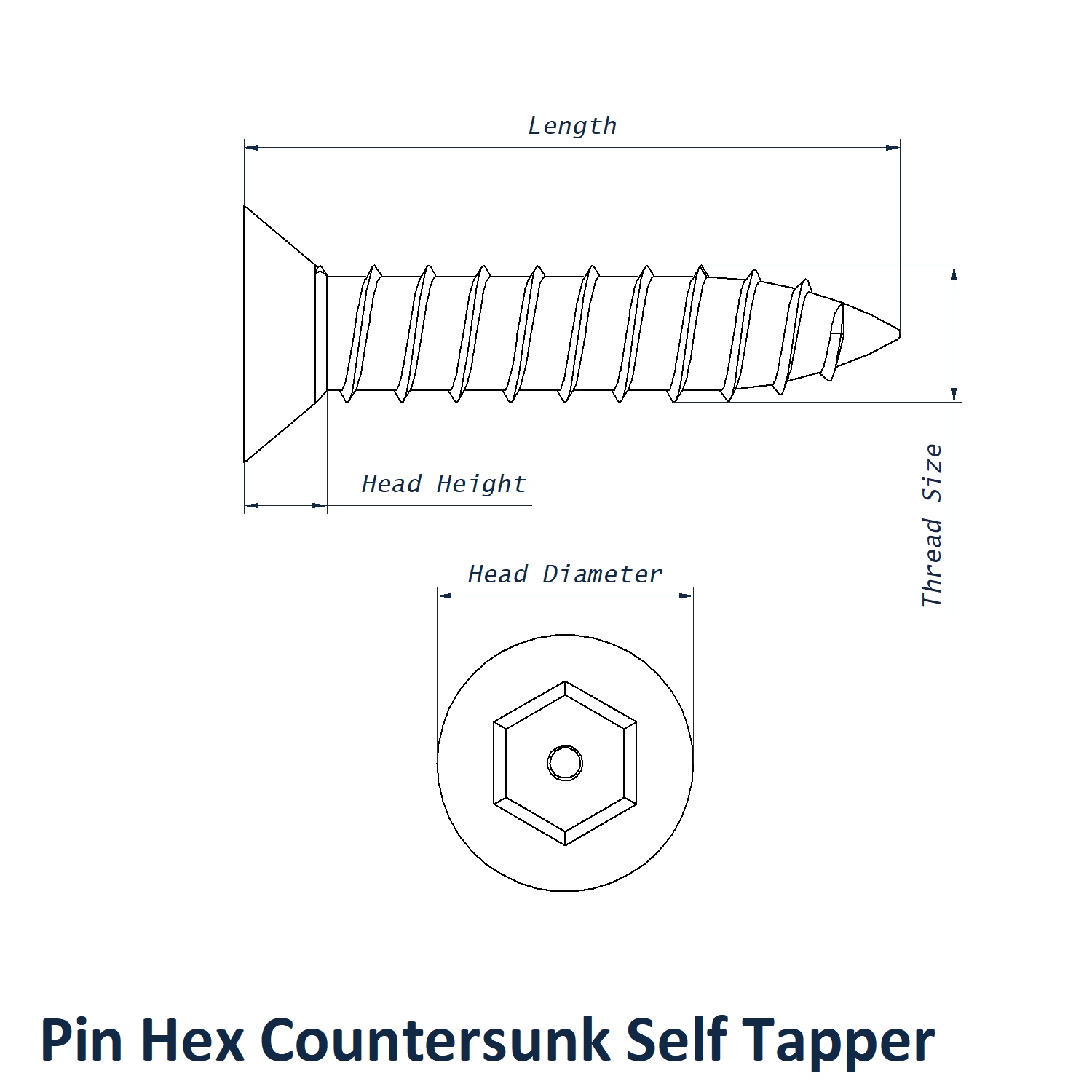

4.8mm x 50mm Pin Hex Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 50mm
- Head Diameter: 9.3mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security HM3
- Drive Type: Pin Hex
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
