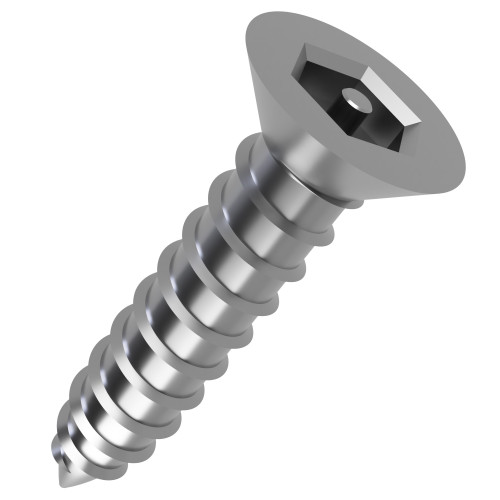

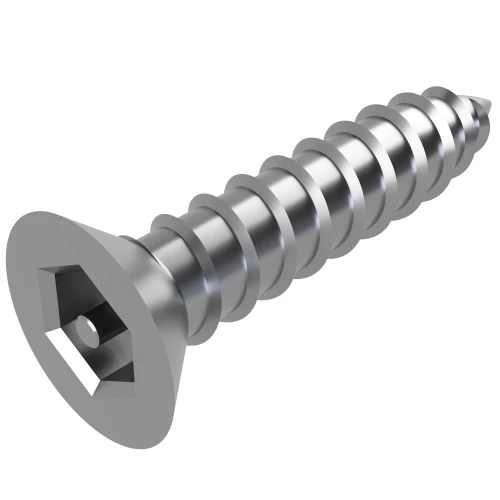

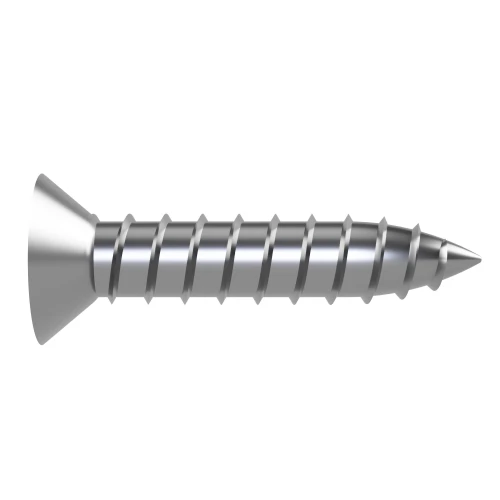

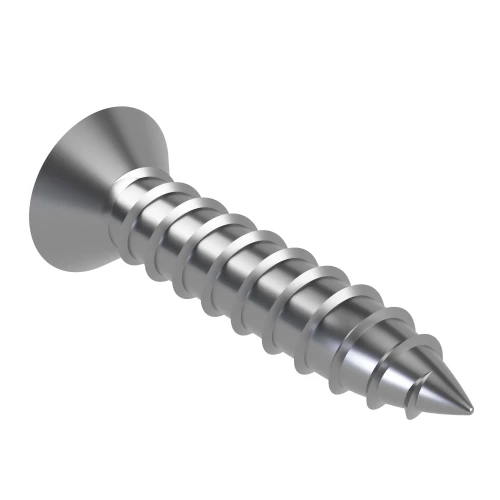

4.8mm x 25mm Pin Hex Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.12 | £0.14 |
| 100 - 499 | £0.10 | £0.12 |
| 500 - 999 | £0.07 | £0.09 |
| 1000 + | £0.03 | £0.04 |
£0.14 / each
.png)
Product Specification
| Thread Size | 4.8mm |
| Length | 25.0mm |
| Head Diameter | 9.3mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Pin Hex |
| Drive | Security HM3 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
4.8mm x 25mm Pin Hex Countersunk AB Self Tapping Screw | A2 Stainless Steel
When the fixing must sit into the panel face, this 4.8mm x 25mm countersunk self tapping screw helps complete fixing bodywork reinforcement plates with a neat countersunk finish.
With a 3.00mm head height and 9.3mm head diameter, the design gives controlled seating in countersunk holes. A2 stainless steel supports corrosion resistance and consistent performance in retail fixture work where reduced need for separate tapping is required.
Common Applications
- Fixing protective metal guards
- Mounting light duty covers
- Securing removable maintenance covers
- Retaining access hatch frames

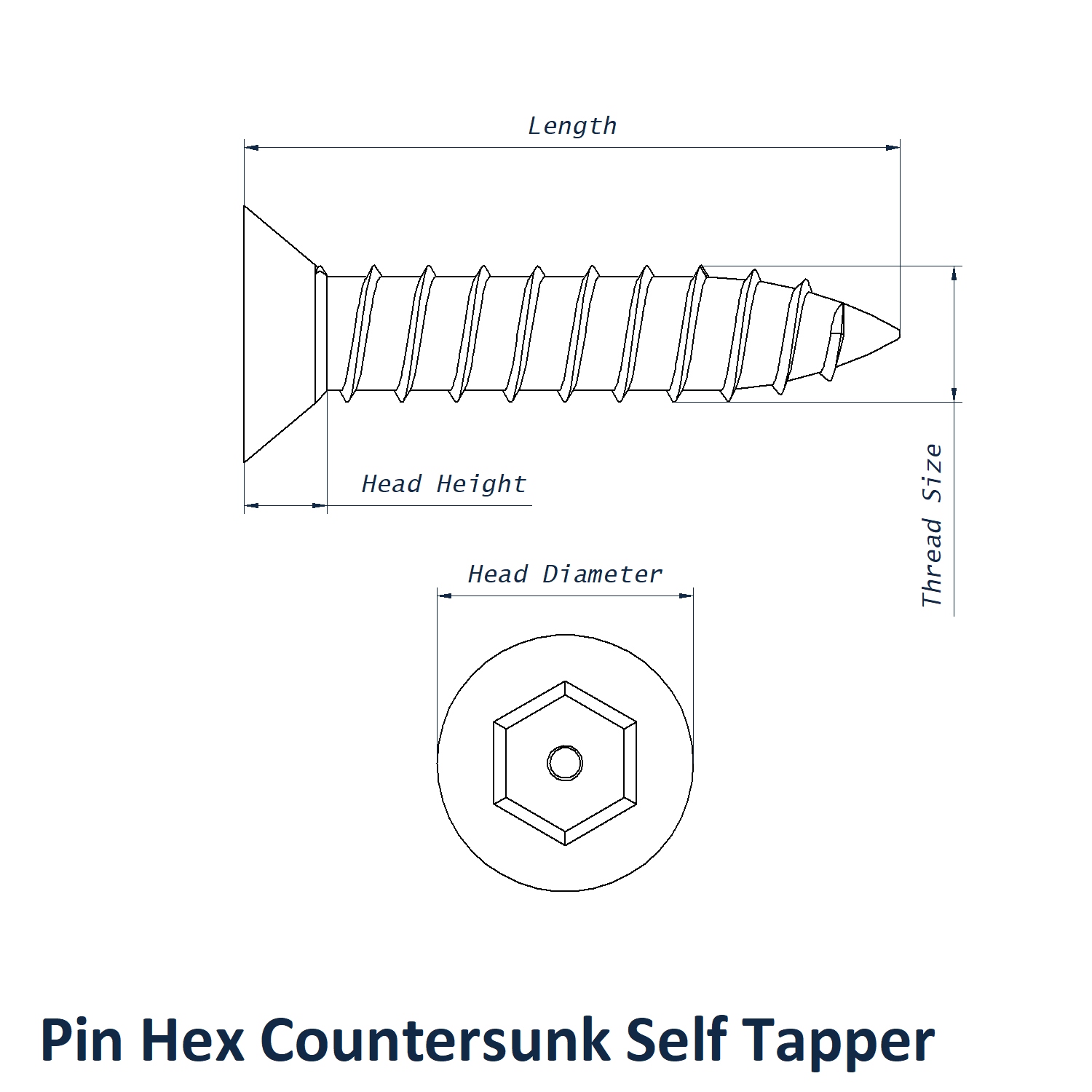

4.8mm x 25mm Pin Hex Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 25mm
- Head Diameter: 9.3mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security HM3
- Drive Type: Pin Hex
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
View our full Countersunk Self Tapping Screws Range. Explore more Self Tapping Screws for related fastening options.
