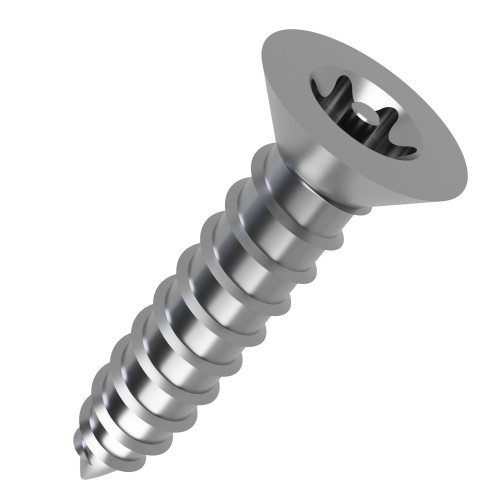

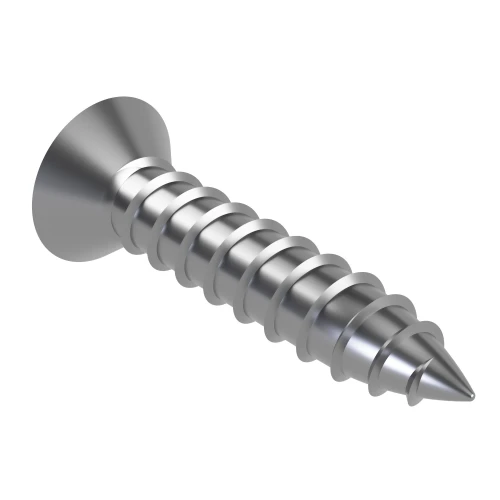

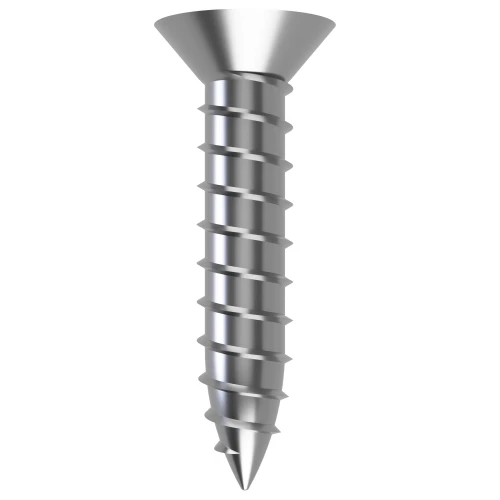

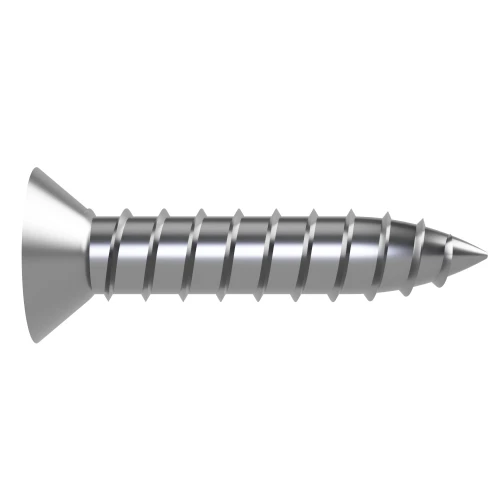

4.8mm x 63mm Pin Torx Countersunk AB Security Self Tapping Screw | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.68 | £0.81 |
| 100 - 499 | £0.65 | £0.78 |
| 500 - 999 | £0.57 | £0.68 |
| 1000 + | £0.27 | £0.32 |
Product Specification
| Thread Size | 4.8mm |
| Length | 63.0mm |
| Head Diameter | 9.3mm |
| Head Height | 3.00mm |
| End Type | AB |
| Drive Type | Pin Torx |
| Drive | Security T25 |
| Standard | N/A |
| Material | A2 Stainless Steel |
Frequently Bought Together
4.8mm x 60mm Slotted Countersunk AB Self Tapping Screw (DIN 7982C) | A2 Stainless Steel
Total Price: £0.00
4.8mm x 63mm Pin Torx Countersunk AB Self Tapping Screw | A2 Stainless Steel
Selected for sheet metal fabrication projects, this 4.8mm x 63mm metal fixing countersunk screw supports neat fixing of panels, guards and covers with limited head protrusion.
The head sits into a matching countersunk hole, helping protect surrounding surfaces from snagging after installation. A2 stainless steel supports corrosion resistance and consistent performance in sheet metal fabrication work where reliable service access is required.
Common Applications
- Repairing fabricated housings
- Fixing ventilation cover plates
- Retaining protective shrouds
- Fixing ventilation grilles

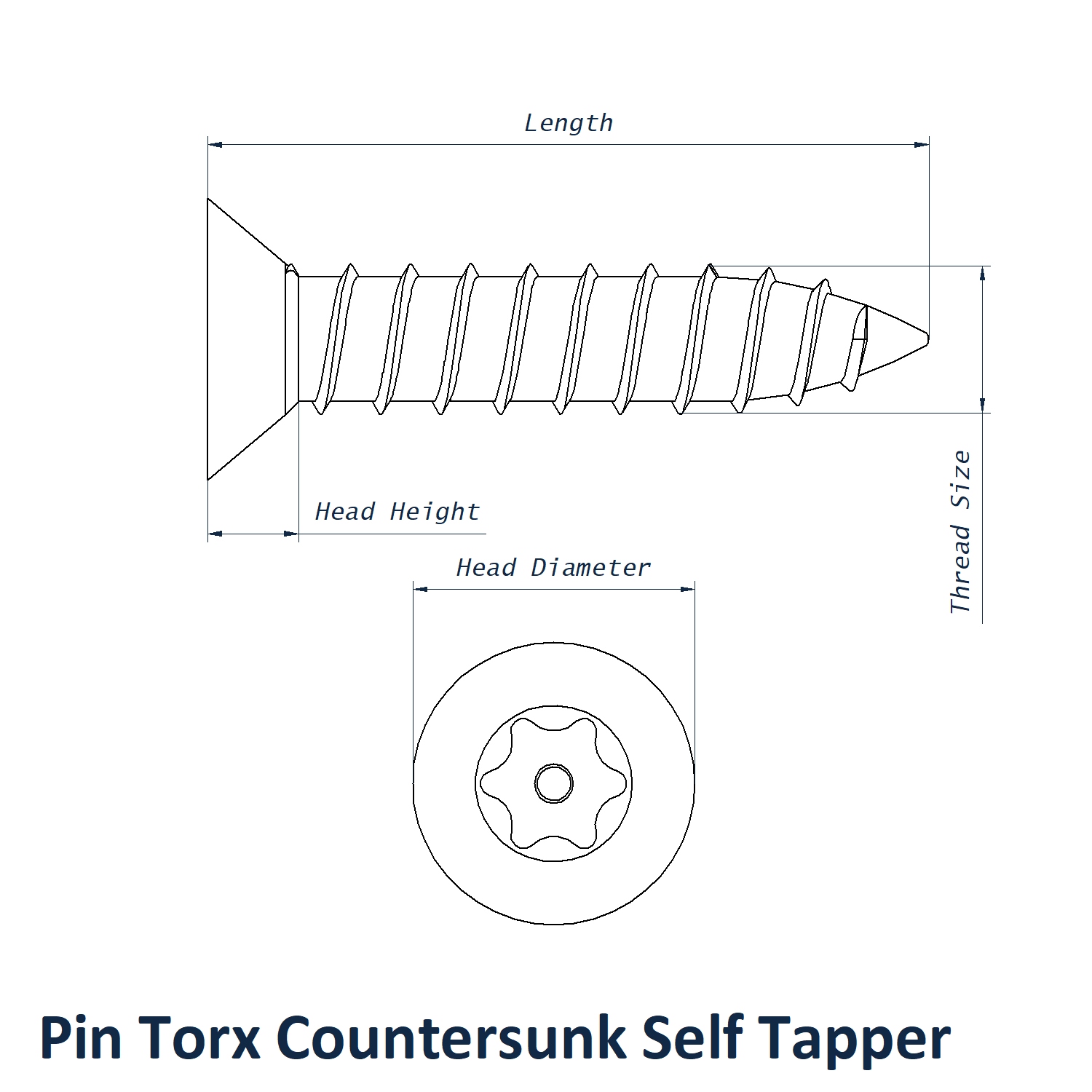

4.8mm x 63mm Pin Torx Countersunk Screw Dimensions
- Thread Size: 4.8mm
- Length: 63mm
- Head Diameter: 9.3mm
- Head Height: 3.00mm
- End Type: AB
- Drive: Security T25
- Drive Type: Pin Torx
- Material: A2 Stainless Steel
Range Guidance
Select the correct thread size, length, drive and material for the panel thickness and environment before ordering. Pilot hole suitability should be checked against the material being fixed.
See the complete Countersunk Self Tapping Screws Range and compare further options within Self Tapping Screws.
