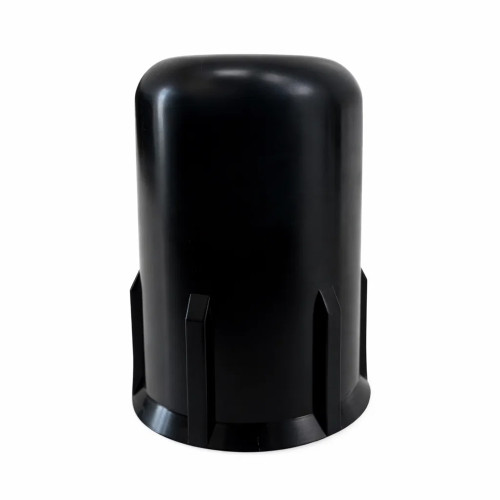

M60 (90mm Internal Height) Self Threading Stud Cap | Black LDPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £31.16 | £37.39 |
| 100 - 249 | £28.04 | £33.65 |
| 250 - 499 | £25.24 | £30.29 |
| 500 - 999 | £20.19 | £24.23 |
| 1000 + | £16.15 | £19.38 |
Product Specification
| Thread Size | M60 |
| Inside Height | 90mm |
| Outside Diameter | 82.2mm |
| Inside Wall Diameter | 69.1mm |
| Inside Rib Diameter | 56.4mm |
| Material | LDPE |
| Colour | Black |
Frequently Bought Together
Total Price: £0.00

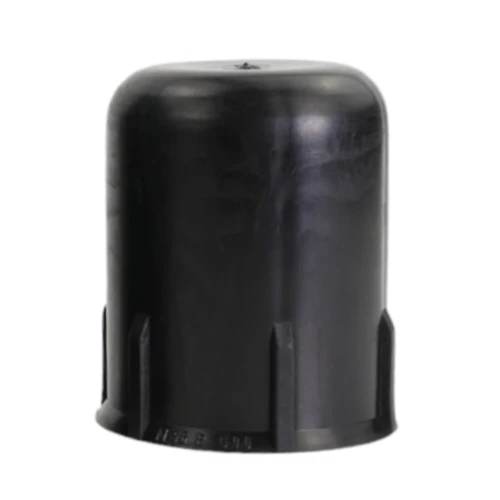

M60 x 90mm Self Threading Stud Cap | Black LDPE | 82.2mm Outside Diameter
The M60 x 90mm Self Threading Stud Cap is intended for substantial M60 studs found on infrastructure fixings, service frames and heavy support assemblies.
The cap uses black LDPE for a resilient finish and has an internal rib diameter of 56.4mm, helping it thread onto the stud while protecting the exposed end.
Common Applications
- Infrastructure fixing protection
- Large support frame stud caps
- Public works and roadside assemblies
- Heavy duty service access installations

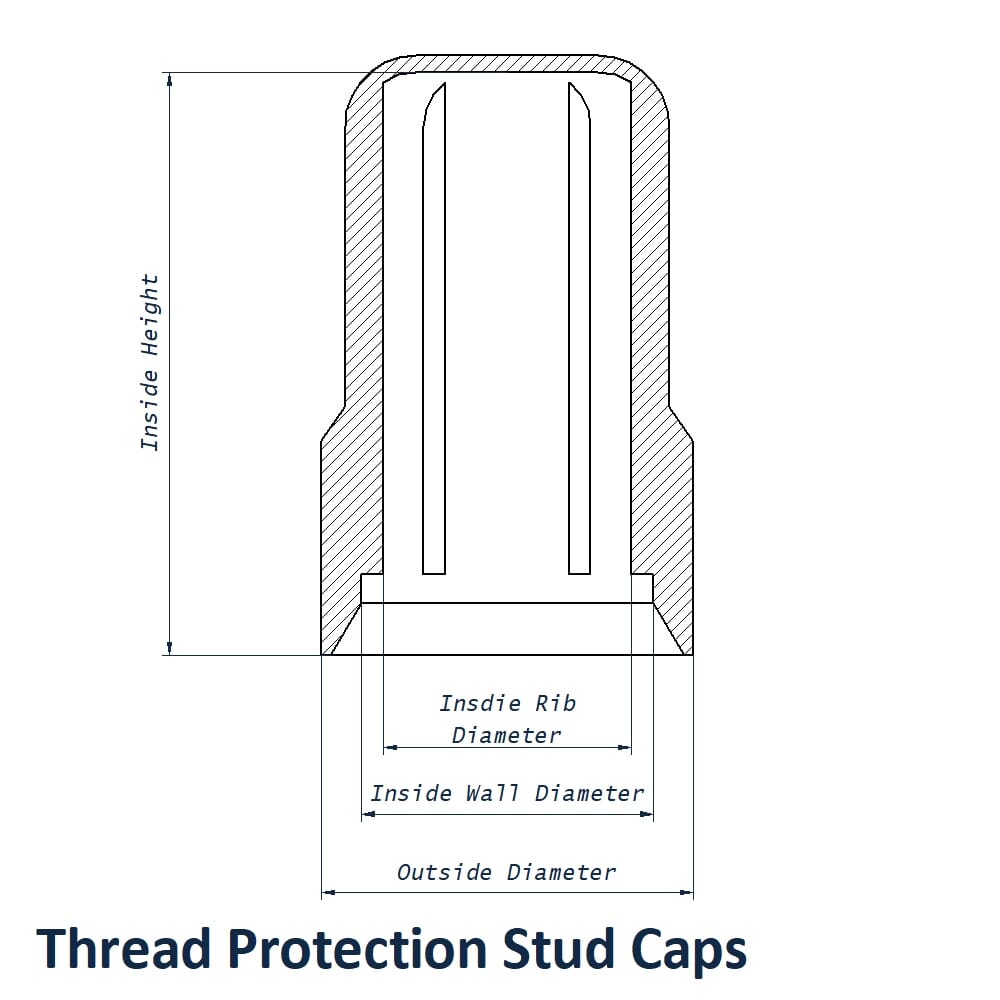

M60 x 90mm Self Threading Stud Cap Dimensions
- Thread Size: M60
- Inside Height: 90mm
- Outside Diameter: 82.2mm
- Inside Wall Diameter: 69.1mm
- Inside Rib Diameter: 56.4mm
- Material: LDPE
- Colour: Black
Choosing Self Threading Stud Caps
This M60 black thread cap is suitable when large M60 external threads need a protective cover that can be installed quickly during final fitting. Check the thread size and inside height against the exposed stud before ordering to make sure the cap has enough internal depth.
View our full Self Threading Stud Caps range or browse our protective caps collection.
Need help or buying in bulk? Call our team on 01233 713581.
