M6 x 25mm Hex Serrated Flange Bolt (DIN 6921) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.54 | £0.65 |
| 10 - 24 | £0.43 | £0.52 |
| 25 - 49 | £0.33 | £0.39 |
| 50 - 99 | £0.28 | £0.33 |
| 100 - 499 | £0.24 | £0.29 |
| 500 - 999 | £0.22 | £0.26 |
| 1000 + | £0.17 | £0.20 |
£0.65 / each
.png)
Product Specification
| Thread Size | M6 |
| Thread Length | 25mm |
| Pitch | 1.00mm |
| Flange Diameter | 14.2mm |
| Head Height | 6.6mm |
| Across Flats | 10.00mm |
| Standard | DIN 6921 |
| Head Style | Serrated Flanged Hex Head |
| Material | A2-70 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

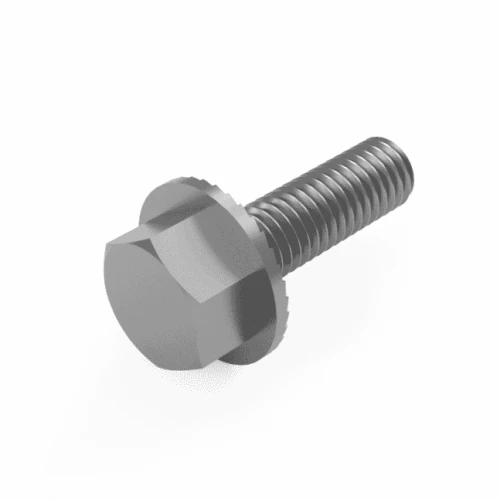

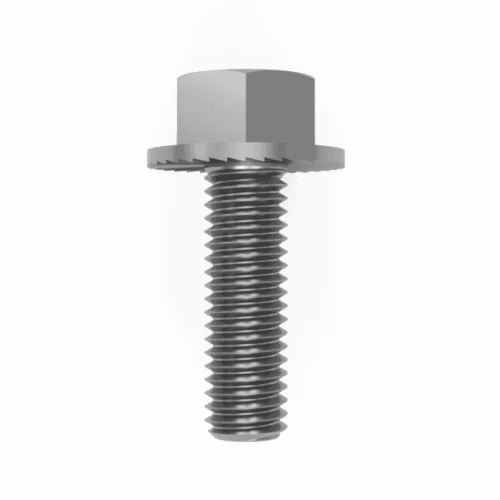

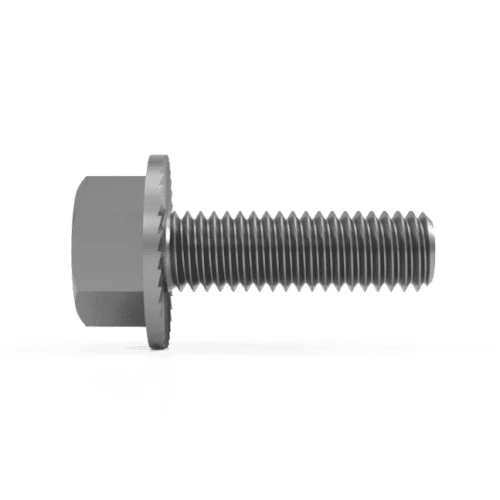

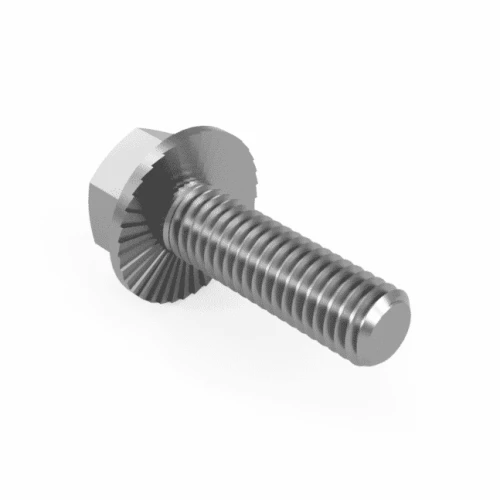

M6 x 25mm Serrated Flange Hex Head Bolt DIN 6921 | A2-70 Stainless Steel
The M6 x 25mm DIN 6921 serrated bolt is suited to packaging machine guards, giving a wide flange face that supports stable clamping across metalwork. The 25mm length gives a versatile fixing depth for common brackets, guards and fabricated assemblies.
This fastener is well suited to batch builds because the head style, flange size and metric thread are straightforward to identify during installation. A2 stainless steel provides a clean corrosion resistant finish for general engineering, access equipment and indoor or sheltered outdoor assemblies.
Common Applications
Frequent use cases include:
- Change-part brackets
- Light machinery frames
- Automation cells
- Guard panels

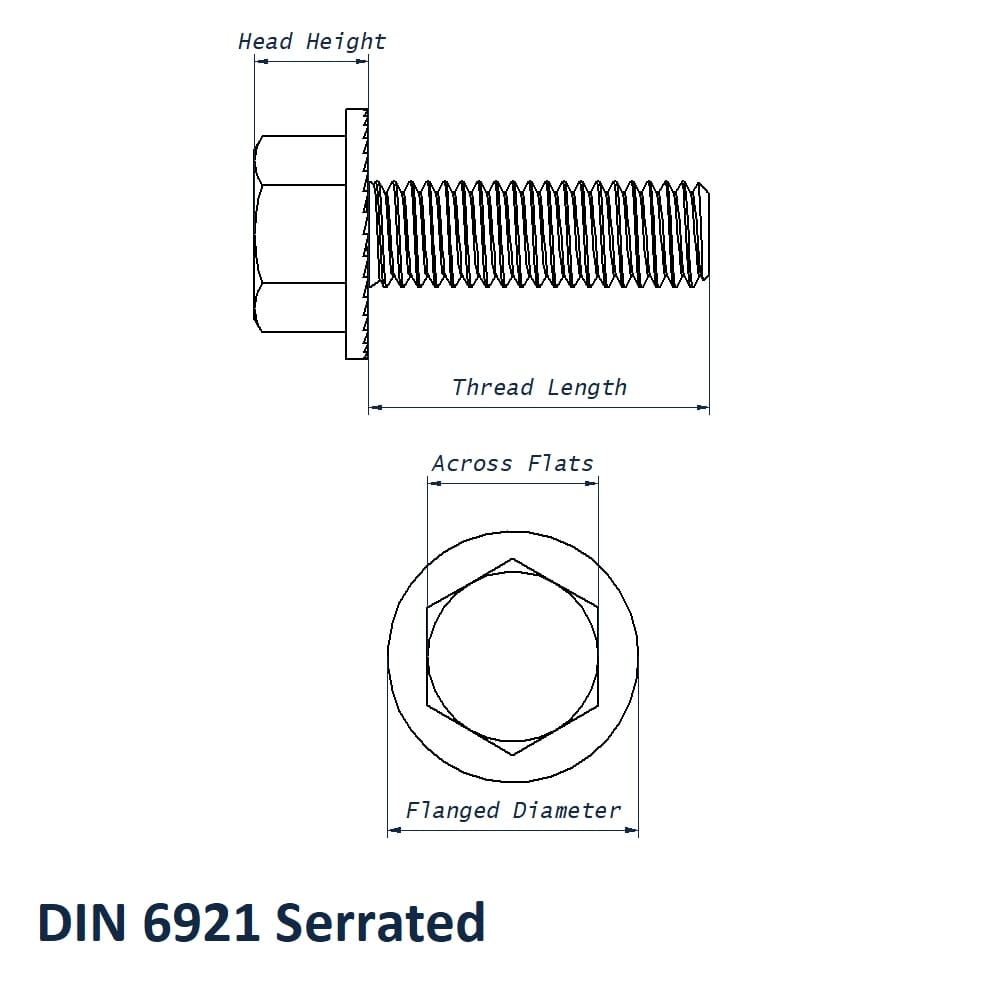

M6 x 25mm Serrated Flange Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 25mm
- Pitch: 1.00mm
- Flange Diameter: 14.2mm
- Head Height: 6.6mm
- Across Flats: 10.00mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Serrated Flanged Hex Head
Related Products
For matching sizes across the range, visit Serrated Flange Hex Head Bolts DIN 6921.
If the joint needs a mating thread, load spreader or removable fixing method, pair this bolt with suitable Washers and Nuts.
You can also compare other options in our Bolts and Screws range.
Need help choosing the right serrated flange bolt for your application? Call 01233 713581 for technical support or bulk order advice.
