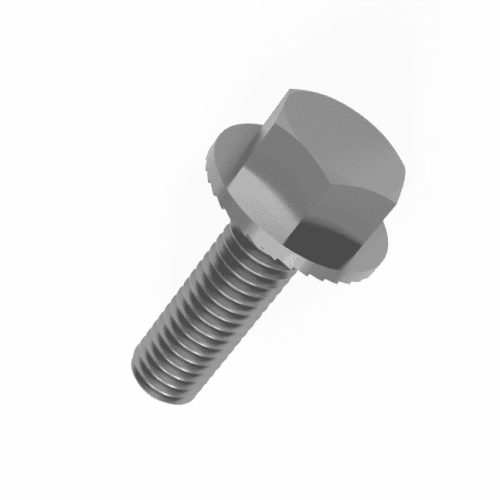

M6 x 40mm Hex Serrated Flange Bolt (DIN 6921) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.88 | £1.06 |
| 10 - 24 | £0.71 | £0.85 |
| 25 - 49 | £0.53 | £0.64 |
| 50 - 99 | £0.44 | £0.53 |
| 100 - 499 | £0.40 | £0.48 |
| 500 - 999 | £0.35 | £0.42 |
| 1000 + | £0.27 | £0.32 |
£1.06 / each
.png)
Product Specification
| Thread Size | M6 |
| Thread Length | 40mm |
| Pitch | 1.00mm |
| Flange Diameter | 14.2mm |
| Head Height | 6.6mm |
| Across Flats | 10.00mm |
| Standard | DIN 6921 |
| Head Style | Serrated Flanged Hex Head |
| Material | A2-70 Stainless Steel |
Frequently Bought Together
Total Price: £0.00

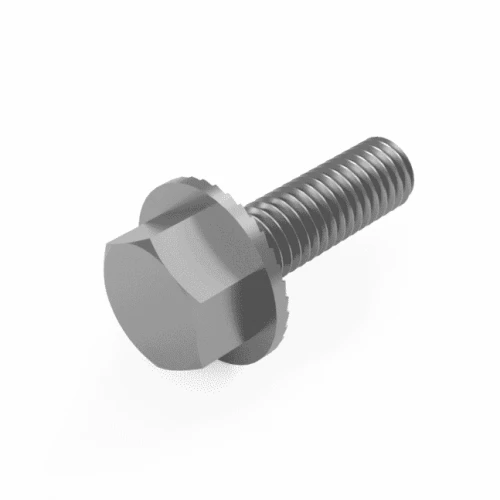

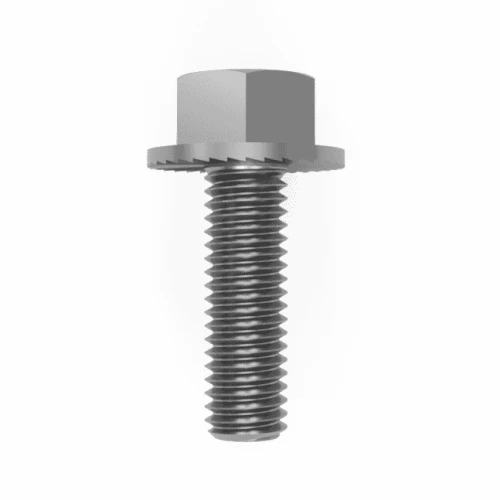

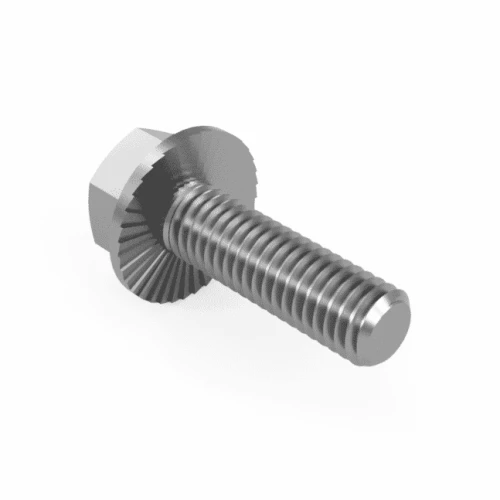

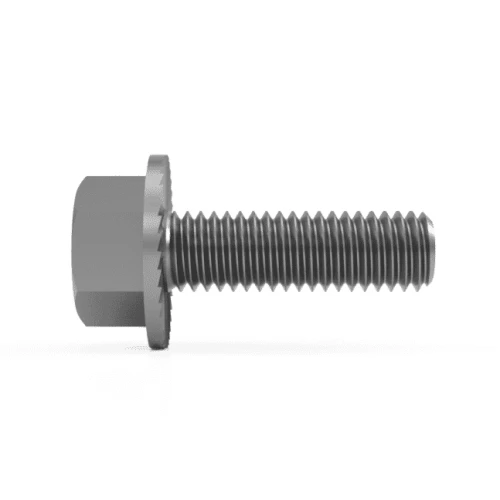

M6 x 40mm Serrated Flange Hex Head Bolt DIN 6921 | A2-70 Stainless Steel
For service teams working on commercial equipment manufacturing, the M6 x 40mm serrated flange bolt provides straightforward tool access and dependable tightening performance. With a 40mm length, it suits thicker brackets, spacers and deeper mounting points used in equipment builds.
The flange head can help distribute pressure around the hole, reducing the need for additional hardware in suitable joint designs. A2 stainless steel provides a clean corrosion resistant finish for general engineering, access equipment and indoor or sheltered outdoor assemblies.
Common Applications
This serrated flange bolt is often used for:
- Service trolleys
- Equipment housings
- Assembly line fixtures
- Commercial cabinets

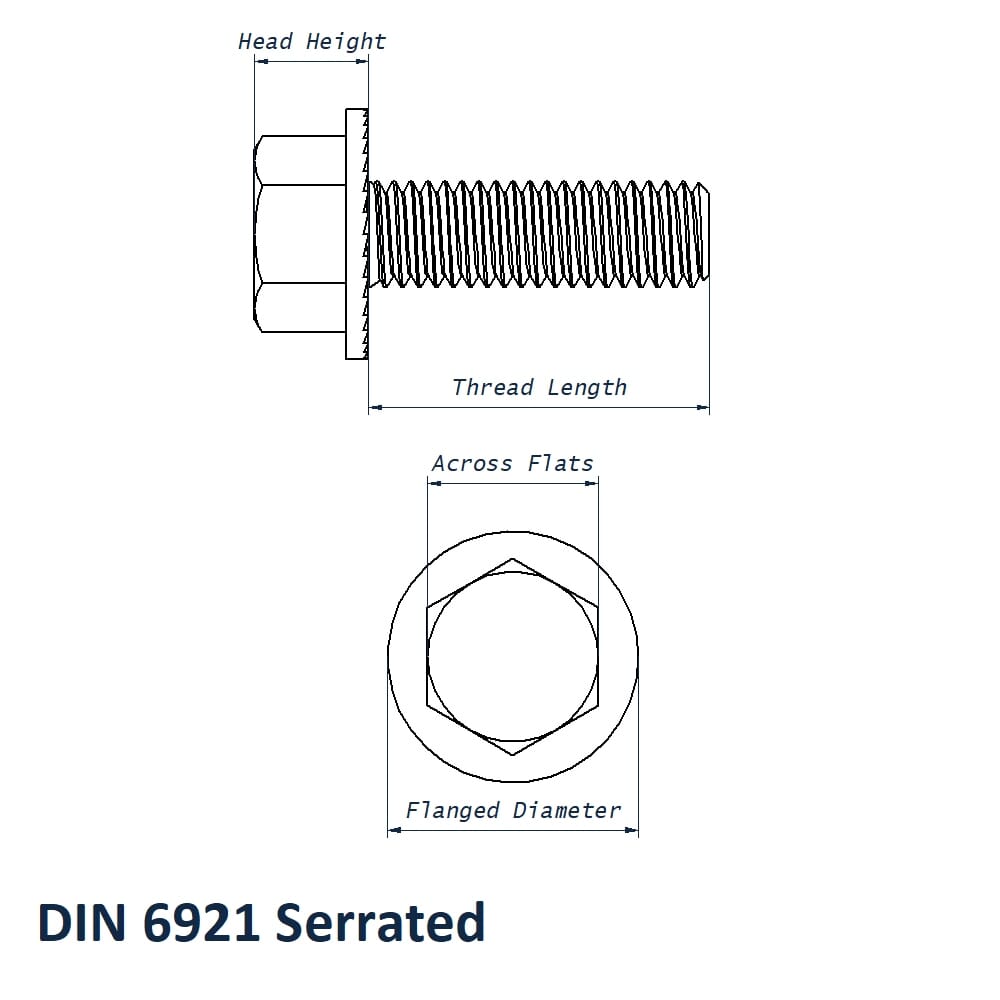

M6 x 40mm Serrated Flange Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 40mm
- Pitch: 1.00mm
- Flange Diameter: 14.2mm
- Head Height: 6.6mm
- Across Flats: 10.00mm
- Material: A2-70 Stainless Steel
- Standard: DIN 6921
- Head Style: Serrated Flanged Hex Head
Related Products
Browse the full Serrated Flange Hex Head Bolts DIN 6921 category to compare the available metric sizes.
These serrated flange bolts can be used with Washers and Nuts when the fixing method or drawing specification requires them.
You can also compare other options in our Bolts and Screws range.
Need help choosing the right serrated flange bolt for your application? Call 01233 713581 for technical support or bulk order advice.
