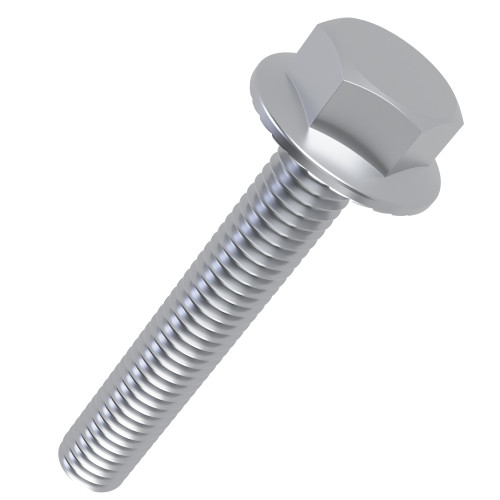

M6 x 30mm Hex Flange Bolt - Serrated (DIN 6921) - 8.8 Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.07 | £0.08 |
| 100 - 999 | £0.05 | £0.06 |
| 1000 - 4999 | £0.04 | £0.05 |
| 5000 + | £0.03 | £0.04 |
Product Specification
| Thread Size | M6 |
| Thread Length | 30mm |
| Pitch | 1.00mm |
| Flange Diameter | 14.2mm |
| Head Height | 6.6mm |
| Across Flats | 10.00mm |
| Standard | DIN 6921 |
| Head Style | Serrated Flanged Hex Head |
| Material | 8.8 Steel BZP |
Frequently Bought Together
Total Price: £0.00
M6 x 30mm Serrated Flange Hex Head Bolt DIN 6921 | 8.8 Steel BZP
For service teams working on commercial equipment manufacturing, the M6 x 30mm serrated flange bolt provides straightforward tool access and dependable tightening performance. The 30mm length gives a versatile fixing depth for common brackets, guards and fabricated assemblies.
The flange head can help distribute pressure around the hole, reducing the need for additional hardware in suitable joint designs. 8.8 steel with a BZP finish gives a strong zinc plated option for machinery, fabricated frames and dry industrial environments.
Common Applications
Suitable installation areas include:
- Commercial cabinets
- Service trolleys
- Equipment housings
- Assembly line fixtures

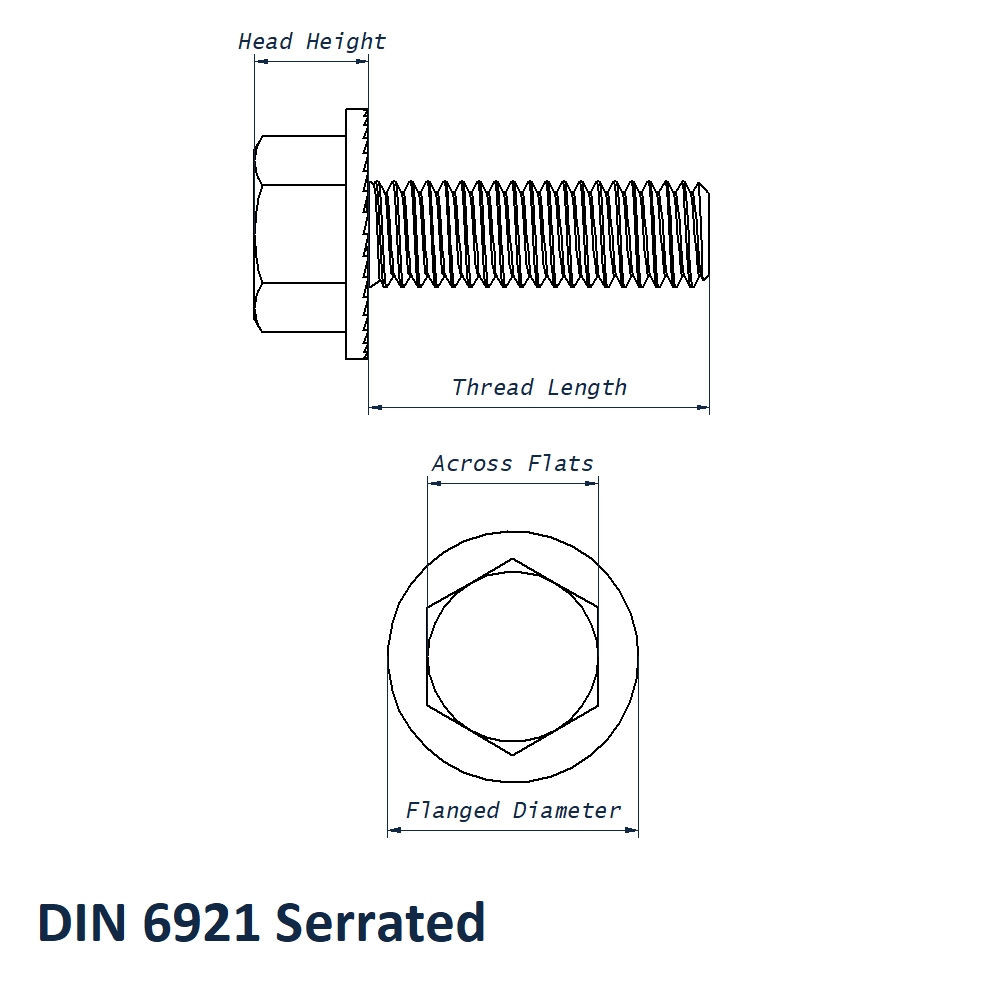

M6 x 30mm Serrated Flange Hex Head Bolt Dimensions
- Thread Size: M6
- Thread Length: 30mm
- Pitch: 1.00mm
- Across Flats: 10.00mm
- Head Height: 6.6mm
- Flange Diameter: 14.2mm
- Standard: DIN 6921
- Head Style: Serrated Flanged Hex Head
- Material: 8.8 Steel BZP
Related Products
Browse the full Serrated Flange Hex Head Bolts DIN 6921 category to compare the available metric sizes.
These serrated flange bolts can be used with Washers and Nuts when the fixing method or drawing specification requires them.
You can also compare other options in our Bolts and Screws range.
Need help choosing the right serrated flange bolt for your application? Call 01233 713581 for technical support or bulk order advice.
