Silicone Pull Plugs - SPP043
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.15 | £1.38 |
| 2 - 10 | £1.15 | £1.38 |
| 11 - 50 | £0.93 | £1.11 |
| 51 - 100 | £0.74 | £0.89 |
| 101 - 500 | £0.59 | £0.71 |
| 501 + | £0.47 | £0.57 |

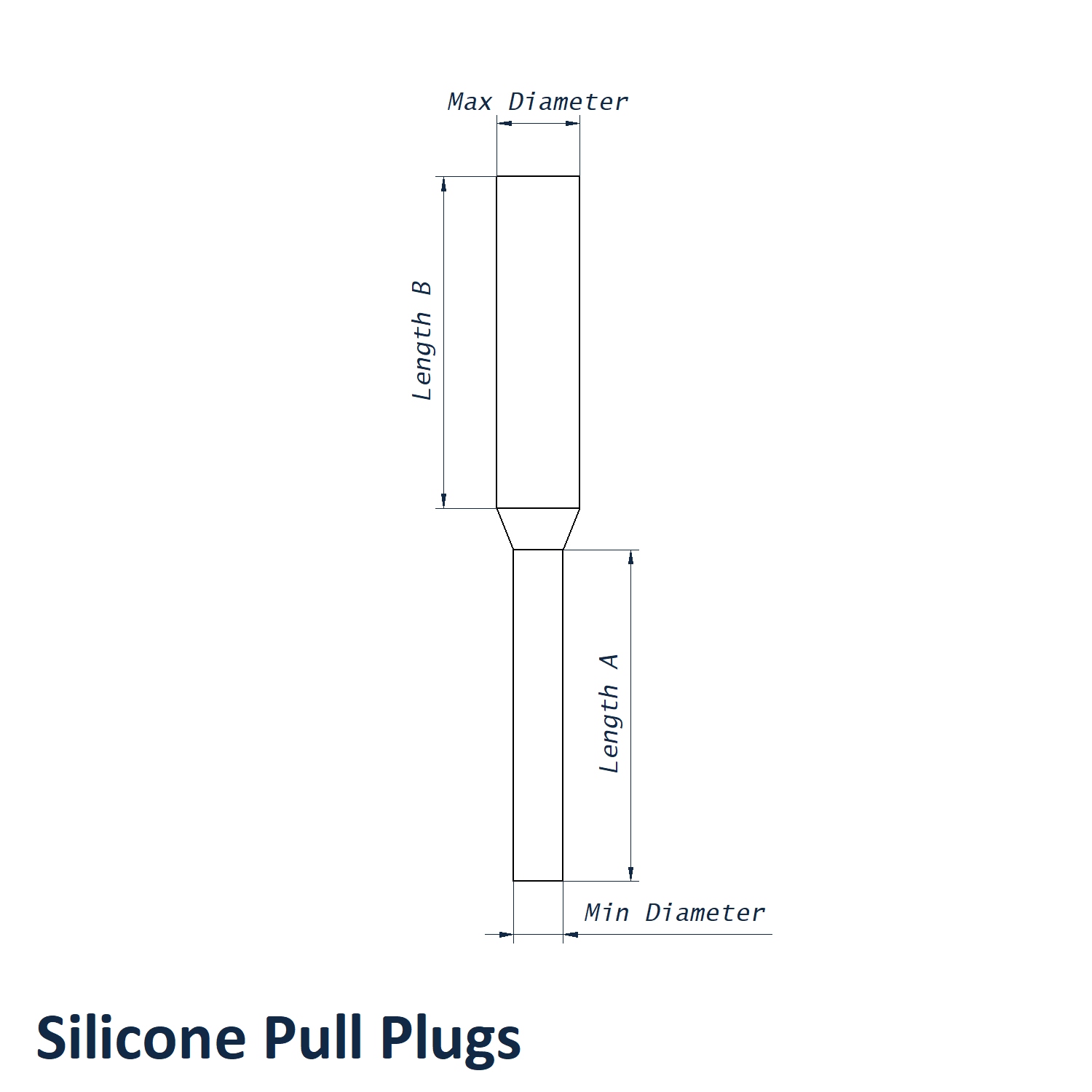

Product Specification
| Min Diameter | 6.4mm |
| Max Diameter | 15.5mm |
| Length A | 25.4mm |
| Length B | 25.4mm |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00

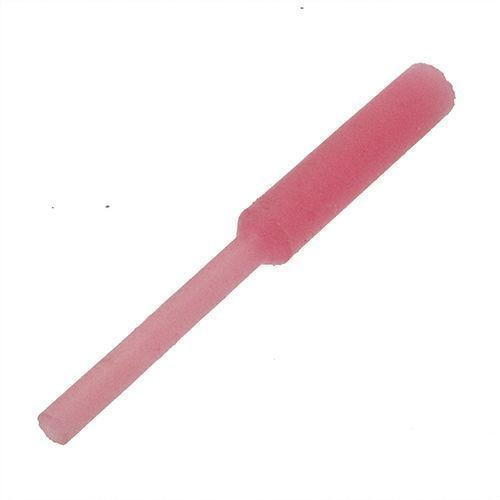

6.4mm to 15.5mm x 25.4mm Silicone Pull Plug | Natural Silicone | Vital Parts - SPP043
For controlled masking of wide-diameter through-holes, this 6.4mm to 15.5mm x 25.4mm natural silicone pull plug provides heat resistance, chemical resistance and convenient removal. It is suitable for repeated use when inspected and cleaned between cycles.
What Are Silicone Pull Plugs?
Silicone pull plugs, also known as parallel plugs or high temperature masking plugs, are inserted into through-holes to prevent unwanted coating or contamination. The pull tab is fed through the opening so the parallel sealing section can be drawn into place and removed quickly after processing.
Common Applications
- Powder Coating: Keeps threaded and plain through-holes clear during powder application and oven curing.
- Anodising: Masks selected openings to prevent unwanted surface treatment inside the bore.
- Electroplating: Protects through-holes from metal deposition during plating processes.
- Shot Blasting: Shields internal surfaces from abrasive media during component preparation.
Technical Specifications:
- Max Diameter: 15.5mm
- Min Diameter: 6.4mm
- Length A: 25.4mm
- Length B: 25.4mm
- Colour: Natural
- Material: Silicone
- Maximum Operating Temperature: Up to 315°C
- Profile: Parallel pull-through profile with integrated pull tab
- Suitable Hole Types: Threaded and non-threaded through-holes
Related High Temperature Masking Products
For blind holes or openings requiring a multi-step body, consider our Silicone Step Plugs. Browse the complete Silicone Pull Plugs range for additional through-hole sizes.
To confirm whether this parallel silicone plug suits your threaded or plain through-hole, contact our technical sales team on 01233 713581.
