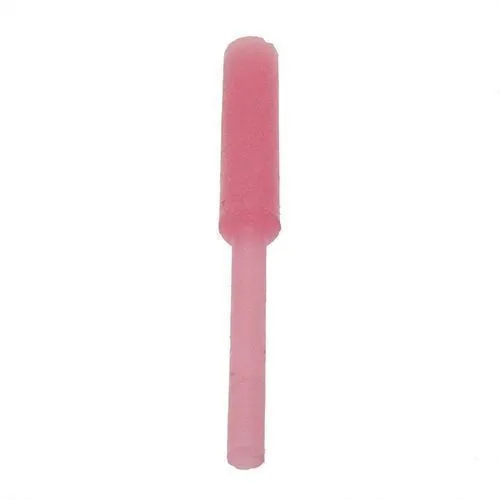

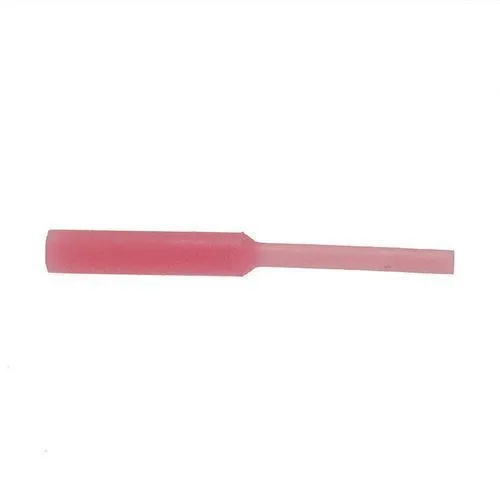

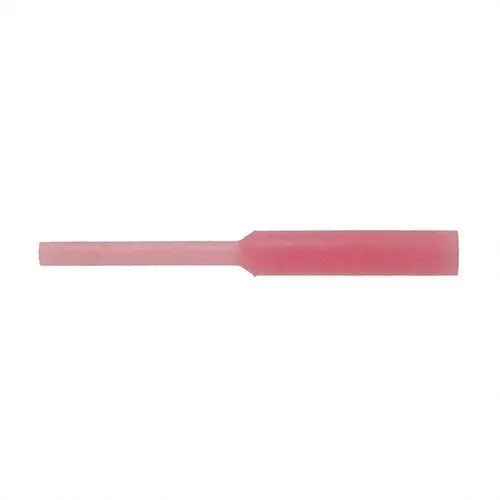

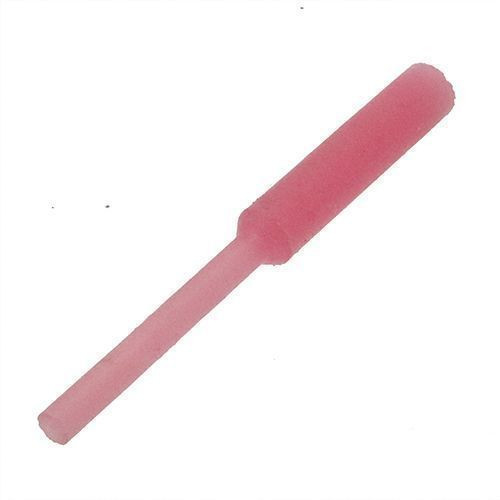

Silicone Pull Plugs - SPP042
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.10 | £1.32 |
| 2 - 10 | £1.10 | £1.32 |
| 11 - 50 | £0.88 | £1.06 |
| 51 - 100 | £0.70 | £0.84 |
| 101 - 500 | £0.57 | £0.68 |
| 501 + | £0.45 | £0.54 |

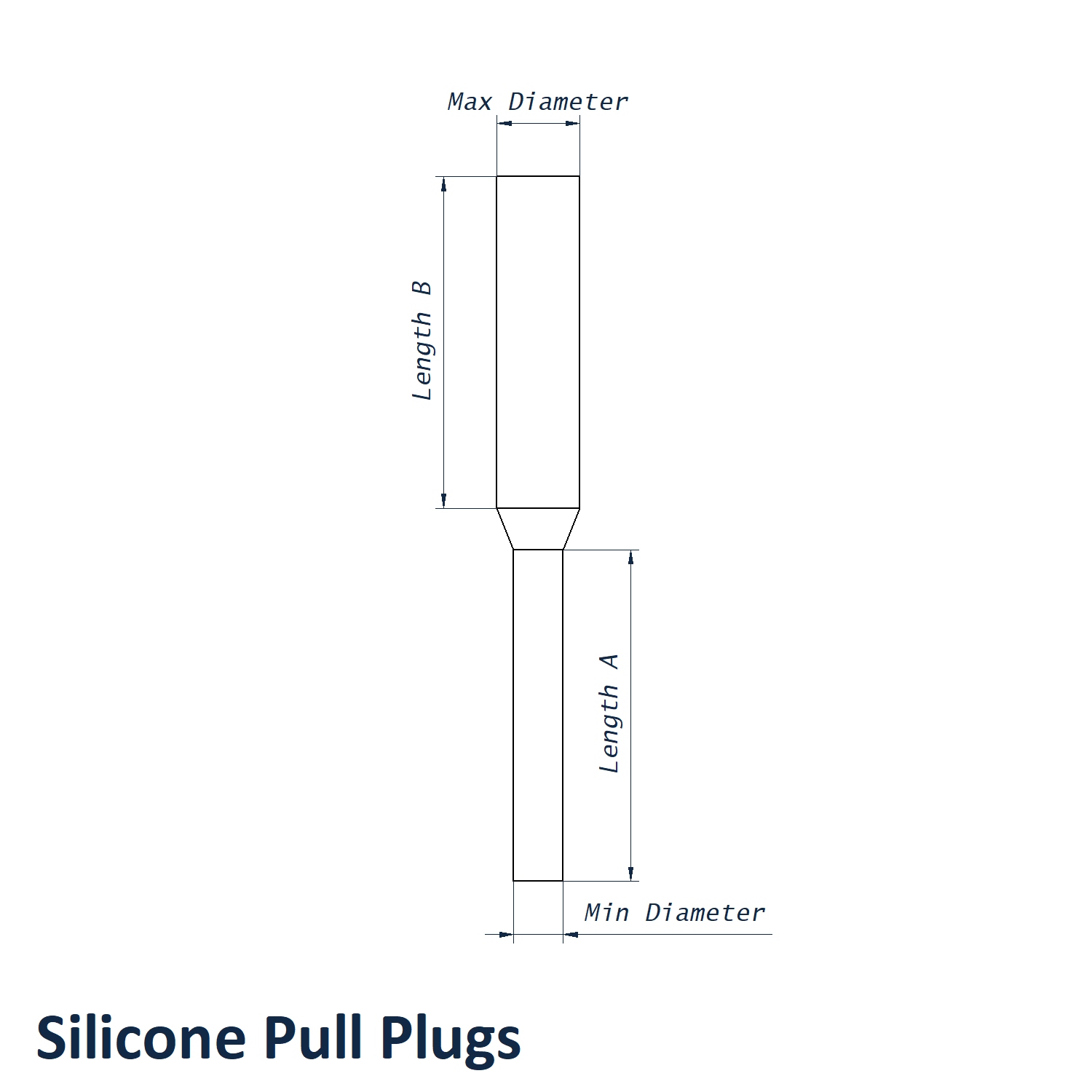

Product Specification
| Min Diameter | 6.4mm |
| Max Diameter | 13.5mm |
| Length A | 25.4mm |
| Length B | 25.4mm |
| Colour | Natural |
Frequently Bought Together
Total Price: £0.00
6.4mm to 13.5mm x 25.4mm Silicone Pull Plug | Natural Silicone | Vital Parts - SPP042
This 6.4mm to 13.5mm x 25.4mm silicone pull tab plug is suited to high-temperature masking of plain and threaded through-holes. The parallel body provides consistent contact inside the opening while the flexible tab helps operators remove the plug quickly.
What Are Silicone Pull Plugs?
These silicone parallel plugs are drawn into a through-hole using the moulded pull section. Once fitted, the central body protects the bore from powder, plating solution, paint or abrasive media while the exposed tab remains available for removal.
Common Applications
- High Temperature Curing: Withstands continuous temperatures up to 315°C during industrial oven cycles.
- Automotive Components: Masks mounting holes and pass-through openings before painting or coating.
- Aerospace Components: Provides controlled bore protection during specialised finishing work.
- Fabrication Workshops: Speeds up masking and demasking of repeated component batches.
Technical Specifications:
- Max Diameter: 13.5mm
- Min Diameter: 6.4mm
- Length A: 25.4mm
- Length B: 25.4mm
- Colour: Natural
- Material: Silicone
- Maximum Operating Temperature: Up to 315°C
- Profile: Parallel pull-through profile with integrated pull tab
- Suitable Hole Types: Threaded and non-threaded through-holes
Related High Temperature Masking Products
If a stepped masking design is more suitable for the application, view our Silicone Step Plugs. Further parallel pull-tab options are available in the full Silicone Pull Plugs collection.
For technical guidance on pull plug sizing, high-temperature masking or volume requirements, speak with our sales team on 01233 713581.
