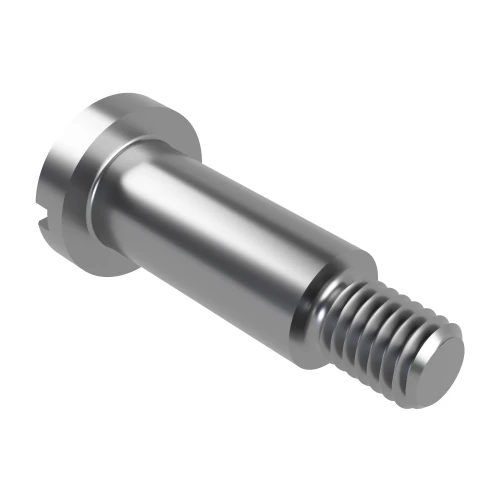

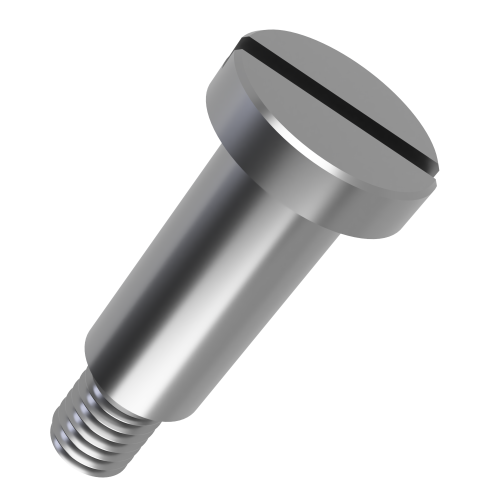

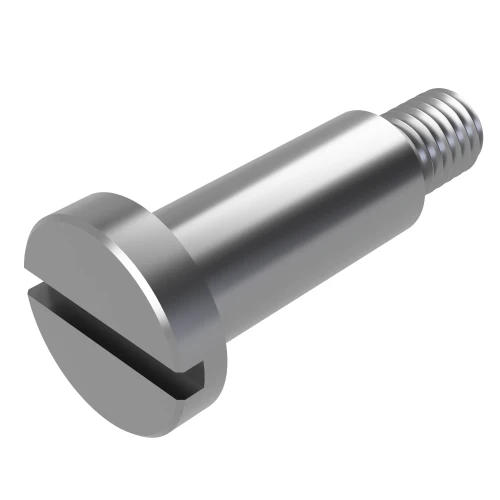

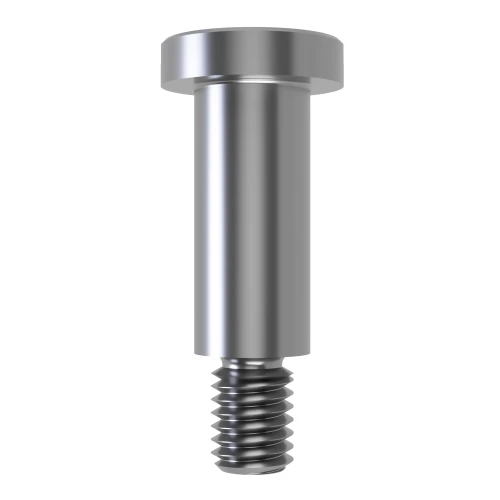

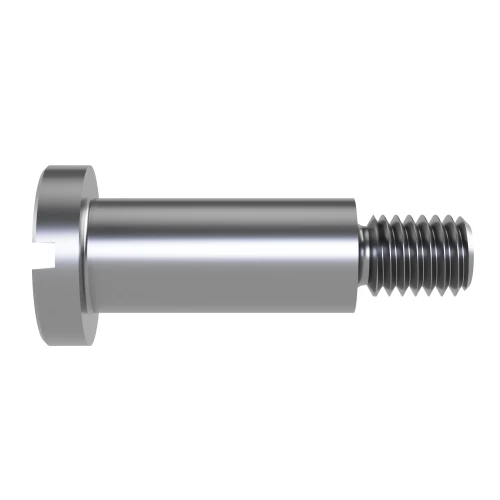

M6 (8.0mm) x 8.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

Product code: SHOU923-M6-8-A1
View All Specifications
M6 (8.0mm) x 8.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 8.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 8.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 8.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 8.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 8.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 24 £0.75 £0.90
25 - 49 £0.64 £0.77
50 - 99 £0.53 £0.64
100 - 499 £0.42 £0.51
500 - 999 £0.38 £0.46
1000 + £0.36 £0.43

£0.90 / each


Up to 38 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 763 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 8,763 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
8,763 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6
Thread Pitch 1.00mm
Shoulder Diameter 8.0mm
Shoulder Length 8.0mm
Thread Length 9.0mm
Head Diameter 13.0mm
Head Height 3.3mm
Drive Slotted
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 8mm Shoulder, 8mm Long Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

For mechanical assemblies requiring a defined bearing section, this A1 Stainless Steel DIN 923 shoulder bolt provides a 8.0mm diameter and 8.0mm long plain shoulder. Its M6 threaded portion secures the fixing and the slotted drive allows fitting with a suitable flat-blade tool. Its 13.0mm pan head has a 3.3mm head height.

What Are Slotted Pan Head Shoulder Bolts?

A DIN 923 shoulder screw has a pan-shaped head, straight screwdriver slot, unthreaded cylindrical shoulder and machine-threaded tip. This version pairs a M6 thread with a 8.0mm by 8.0mm shoulder for applications where a conventional fully threaded screw would not provide the same locating section. For replacement work, match both shoulder measurements as well as the machine thread.

Common Applications

  • Mechanical linkages: Holding a connecting piece around the plain shoulder in a correctly dimensioned joint.
  • Equipment housings: Locating brackets or internal components using the stepped shoulder geometry.
  • Spacer arrangements: Maintaining a defined shoulder section between parts without extending the machine thread through the whole joint.
  • Maintenance assemblies: Using the screwdriver slot for straightforward access to a removable mechanical fastening.

M6 x 8mm Shoulder, 8mm Slotted Shoulder Bolt Dimensions

  • Thread Size: M6
  • Thread Pitch: 1.00mm
  • Shoulder Diameter: 8.0mm
  • Shoulder Length: 8.0mm
  • Thread Length: 9.0mm
  • Head Diameter: 13.0mm
  • Head Height: 3.3mm
  • Drive: Slotted
  • Material: A1 Stainless Steel

Key Benefits

  • Separates the smooth locating shoulder from the threaded fastening section.
  • The 8.0mm shoulder can be selected to suit an assembly’s required engagement length.
  • The 8.0mm diameter enables a measured fit with an appropriately sized mating hole.
  • A1 Stainless Steel construction matches the material specified for this DIN 923 fastener.

Compare more stainless steel shoulder bolts with slotted heads for different thread sizes and shoulder lengths. If you need help selecting the correct fixing, call us on 01233 713581.
