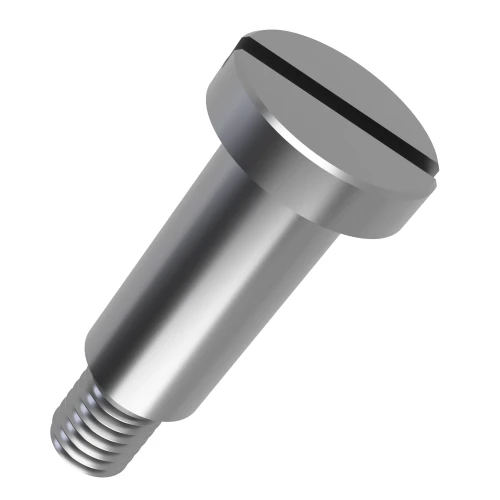

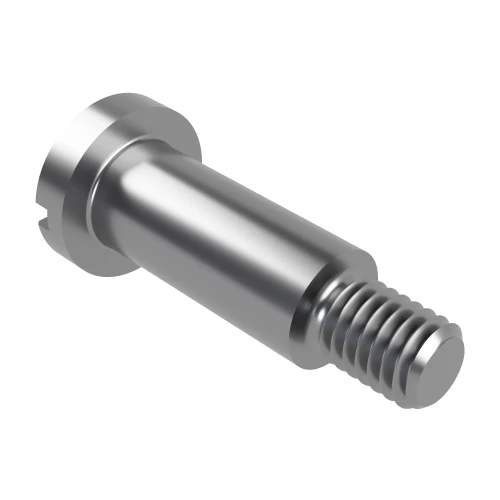

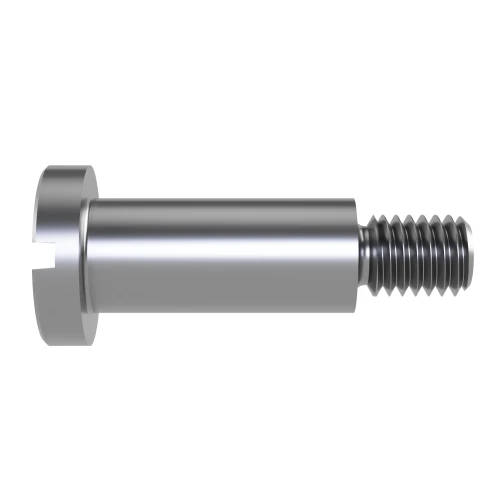

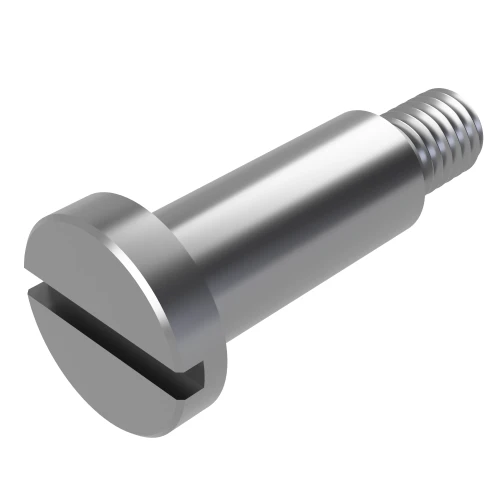

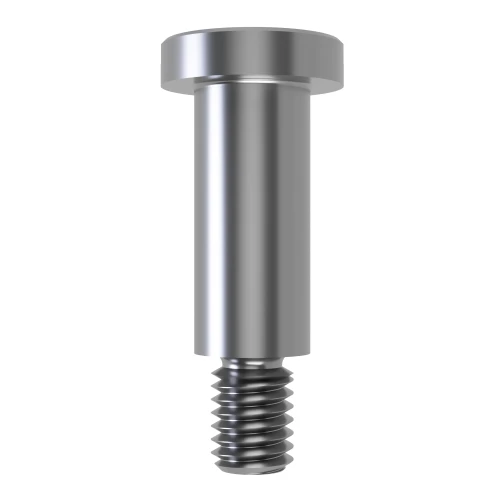

M6 (8.0mm) x 6.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

Product code: SHOU923-M6-6-A1
View All Specifications
M6 (8.0mm) x 6.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 6.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 6.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 6.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 6.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
M6 (8.0mm) x 6.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 24 £0.79 £0.95
25 - 49 £0.68 £0.82
50 - 99 £0.57 £0.68
100 - 499 £0.46 £0.55
500 - 999 £0.41 £0.49
1000 + £0.38 £0.46

£0.95 / each


Up to 250 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 9,363 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
9,363 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M6
Thread Pitch 1.00mm
Shoulder Diameter 8.0mm
Shoulder Length 6.0mm
Thread Length 9.0mm
Head Diameter 13.0mm
Head Height 3.3mm
Drive Slotted
Material A1 Stainless Steel

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M6 x 8mm Shoulder, 6mm Long Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel

This M6 slotted shoulder screw combines a 6.0mm unthreaded shoulder with a 8.0mm shoulder diameter and a conventional slotted pan head. Manufactured from A1 Stainless Steel, it can be fastened into a matching female thread while leaving the cylindrical shoulder available to locate adjoining components. The 1.00mm pitch and 9mm threaded length are specified for this fixing.

What Are Slotted Pan Head Shoulder Bolts?

Slotted pan head shoulder bolts are stepped fasteners with a larger smooth shoulder and a smaller threaded end. The M6 thread engages the receiving component while the 8.0mm shoulder provides a defined location for a mating part; the 6.0mm length determines the available shoulder engagement. Select a corresponding clearance hole and threaded receiving part to match the stated dimensions.

Common Applications

  • Pivoting joints: Locating a suitably sized pivoting link on the smooth shoulder while the threaded tip secures the connection.
  • Instrument assemblies: Positioning small moving plates or brackets with a defined shoulder diameter.
  • Guide components: Providing a plain cylindrical surface for a compatible sliding or guided part.
  • Serviceable fittings: Allowing slotted-drive removal when inspecting or replacing linked parts.

M6 x 8mm Shoulder, 6mm Slotted Shoulder Bolt Dimensions

  • Thread Size: M6
  • Thread Pitch: 1.00mm
  • Shoulder Diameter: 8.0mm
  • Shoulder Length: 6.0mm
  • Thread Length: 9.0mm
  • Head Diameter: 13.0mm
  • Head Height: 3.3mm
  • Drive: Slotted
  • Material: A1 Stainless Steel

Key Benefits

  • The 8.0mm plain shoulder gives a defined locating diameter for a compatible component.
  • A 6.0mm shoulder length helps match the space available in a mechanical joint.
  • The M6 machine thread provides a removable fastening into a matching tapped hole.
  • The slotted pan head permits fitting with a suitable flat-blade screwdriver.

Compare more DIN 923 slotted shoulder screws for different thread sizes and shoulder lengths. If you need help selecting the correct fixing, call us on 01233 713581.
