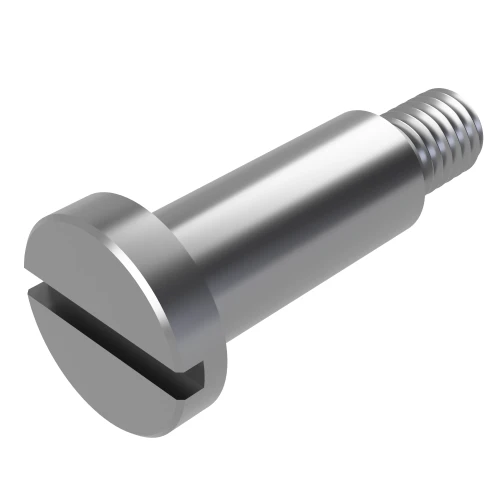

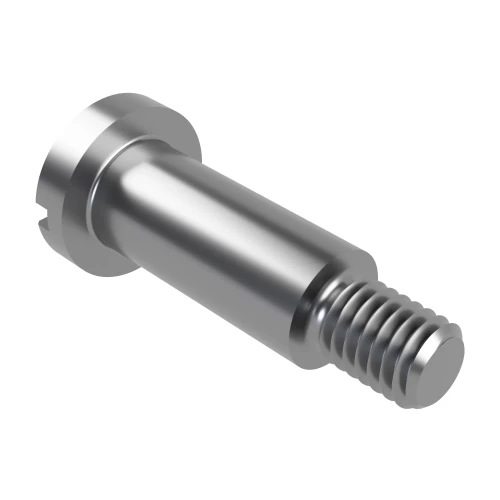

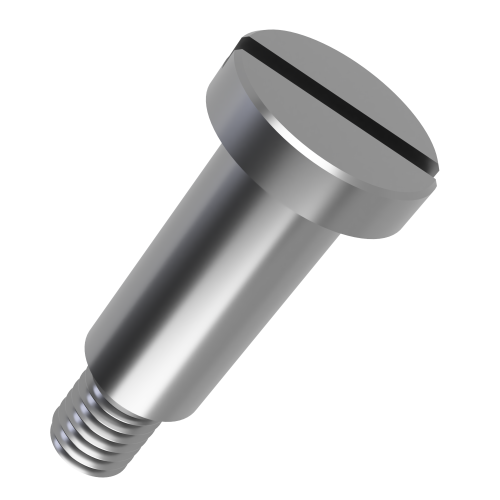

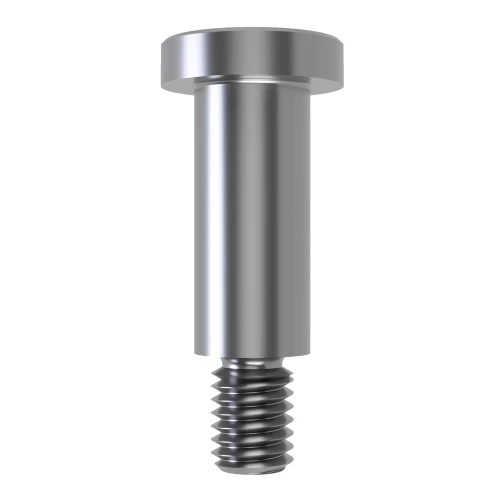

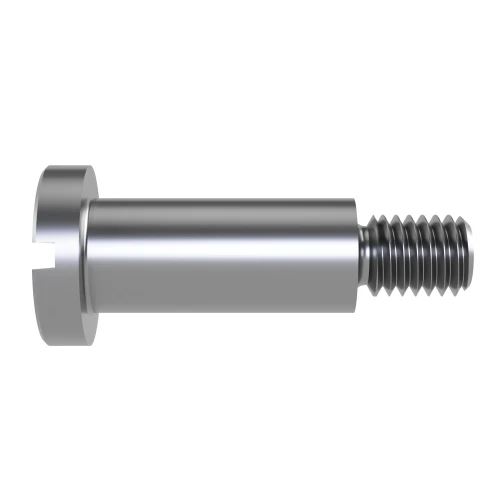

M10 (13.0mm) x 12.0mm Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
CAD Viewer
CAD Request
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 24 | £4.05 | £4.86 |
| 25 - 49 | £3.47 | £4.16 |
| 50 - 99 | £2.89 | £3.47 |
| 100 - 499 | £2.32 | £2.78 |
| 500 - 999 | £2.08 | £2.50 |
| 1000 + | £1.94 | £2.33 |
£4.86 / each
Product Specification
| Thread Size | M10 |
| Thread Pitch | 1.50mm |
| Shoulder Diameter | 13.0mm |
| Shoulder Length | 12.0mm |
| Thread Length | 13.5mm |
| Head Diameter | 20.0mm |
| Head Height | 4.8mm |
| Drive | Slotted |
| Material | A1 Stainless Steel |
Frequently Bought Together
- Thread Size M10
- Material A2 Stainless Steel
- Length 1000mm
- Standard DIN 976-1
- Pitch 1.50mm
- Material A2 Stainless Steel
- Thickness 2.00mm
- Internal Diameter 10.5mm
- Outside Diameter 20.0mm
- Standard DIN 125A
- Size M10
Total Price: £0.00
M10 x 13mm Shoulder, 12mm Long Slotted Pan Head Shoulder Bolt (DIN 923) | A1 Stainless Steel
With a M10 machine thread and a 13.0mm diameter shoulder measuring 12.0mm long, this A1 Stainless Steel shoulder bolt separates the locating section from the fastening thread. A flat-blade screwdriver engages its slotted pan head during assembly or maintenance. The 1.50mm pitch and 13.5mm threaded length are specified for this fixing.
What Are Slotted Pan Head Shoulder Bolts?
These stepped screws combine fastening and component location. Their threaded end is tightened into a compatible hole and the 13.0mm smooth shoulder can pass through a matching clearance hole to act as a spacer or guide over its 12.0mm length. Select a corresponding clearance hole and threaded receiving part to match the stated dimensions.
Common Applications
- Jigs and fixtures: Using the shoulder to register a fixture component in a matching hole.
- Moving mechanisms: Providing a cylindrical contact section for a compatible link or arm.
- Panel mechanisms: Mounting a guided or pivoting panel fitting where the shoulder dimensions are suitable.
- Workshop equipment: Creating a removable joint with a machine-threaded end and a slotted head.
M10 x 13mm Shoulder, 12mm Slotted Shoulder Bolt Dimensions
- Thread Size: M10
- Thread Pitch: 1.50mm
- Shoulder Diameter: 13.0mm
- Shoulder Length: 12.0mm
- Thread Length: 13.5mm
- Head Diameter: 20.0mm
- Head Height: 4.8mm
- Drive: Slotted
- Material: A1 Stainless Steel
Key Benefits
- Pan head offers a distinct head bearing surface over the stepped shoulder.
- Its M10 thread can be paired with a correctly matched threaded component.
- The unthreaded 13.0mm shoulder avoids using the screw thread as the contact surface.
- A 12.0mm shoulder provides a repeatable dimension for replacement selection.
Compare more slotted pan head shoulder screws for different thread sizes and shoulder lengths. If you need help selecting the correct fixing, call us on 01233 713581.
| Code | Thread Size | Material | Thread Length | Thread Pitch | Head Diameter | Drive | Head Height | Shoulder Diameter | Shoulder Length | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SHOU923-M10-10-A1 | M10 | A1 Stainless Steel | 13.5mm | 1.50mm | 20.0mm | Slotted | 4.8mm | 13.0mm | 10.0mm |
Checking...
|
|
| SHOU923-M10-12-A1 | M10 | A1 Stainless Steel | 13.5mm | 1.50mm | 20.0mm | Slotted | 4.8mm | 13.0mm | 12.0mm |
Checking...
|
|
| SHOU923-M8-12-A1 | M8 | A1 Stainless Steel | 11.0mm | 1.25mm | 16.0mm | Slotted | 4.0mm | 10.0mm | 12.0mm |
Checking...
|
|
| SHOU923-M8-16-A1 | M8 | A1 Stainless Steel | 11.0mm | 1.25mm | 16.0mm | Slotted | 4.0mm | 10.0mm | 16.0mm |
Checking...
|
|
| SHOU923-M8-20-A1 | M8 | A1 Stainless Steel | 11.0mm | 1.25mm | 16.0mm | Slotted | 4.0mm | 10.0mm | 20.0mm |
Checking...
|
|
| SHOU923-M8-25-A1 | M8 | A1 Stainless Steel | 11.0mm | 1.25mm | 16.0mm | Slotted | 4.0mm | 10.0mm | 25.0mm |
Checking...
|
|
| SHOU923-M8-30-A1 | M8 | A1 Stainless Steel | 11.0mm | 1.25mm | 16.0mm | Slotted | 4.0mm | 10.0mm | 30mm |
Checking...
|
|
