M20 x 110mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £2.79 | £3.35 |
| 50 - 99 | £2.28 | £2.74 |
| 100 + | £2.09 | £2.51 |
Product Specification
| Thread Size | M20 |
| Length | 110mm |
| Threaded Length | 52mm |
| Pitch | 2.50mm |
| Head Diameter | 30.0mm |
| Head Height | 20.0mm |
| Drive | H17 |
| Head Style | Cap Head |
| Material | A2-70 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M20 x 110mm Hex Socket Cap Screw (DIN 912) | A2 Stainless Steel
Designed for automation equipment, this M20 x 110mm hex drive cap screw combines a H17 hex socket with a 30mm cap head for controlled tightening into threaded components.
The A2-70 stainless steel equivalent to 304 construction supports strong mechanical retention, while the M20 thread and 110mm length make it suitable for installing guarding panels. The A2 stainless specification offers good corrosion resistance for workshop, machinery and cabinet applications. It can also be specified as a high tensile screw where Dimensions are required.
Common Applications
- Automation bracket mounting
- Workshop machinery servicing
- Signage support frames
- Production line module assembly

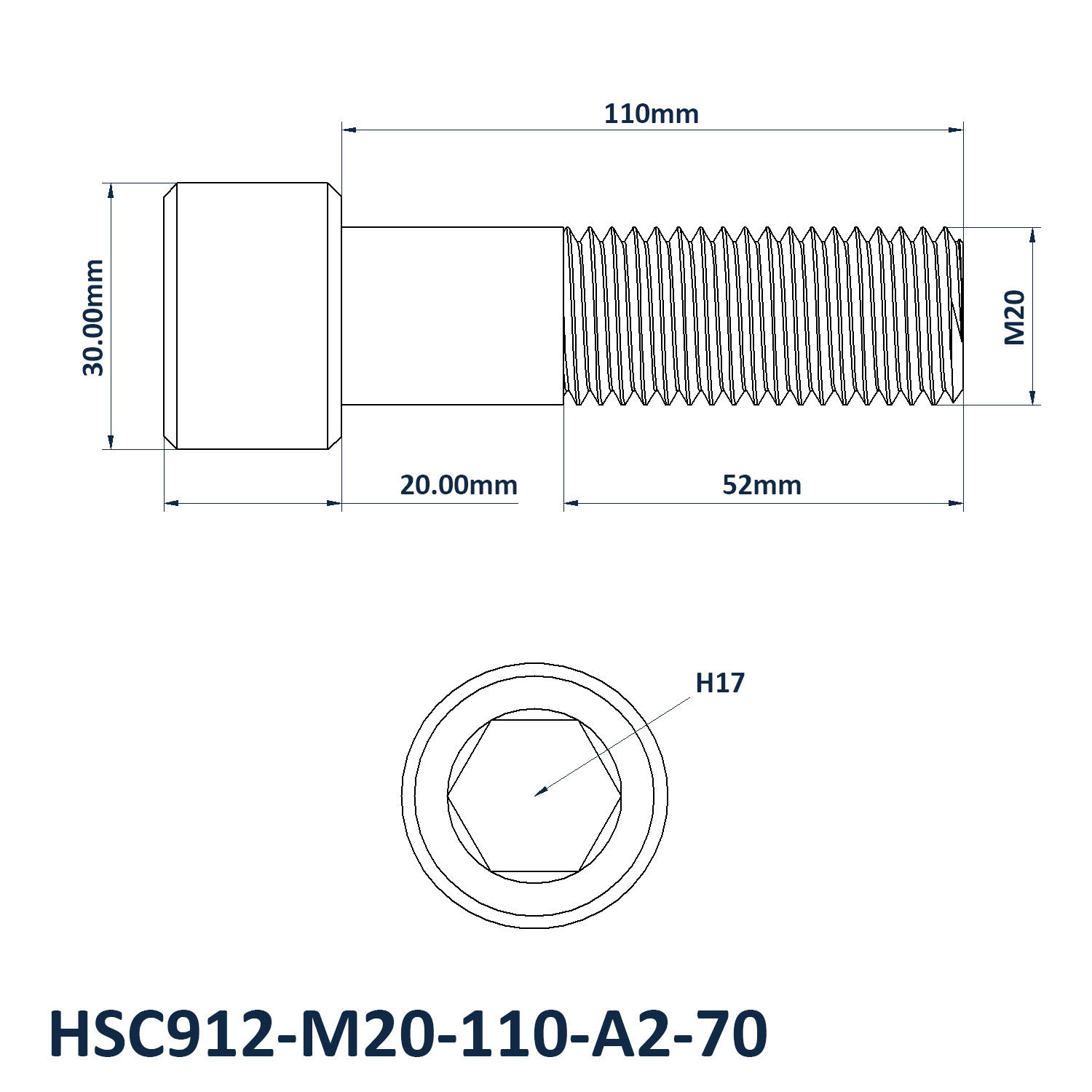

M20 x 110mm Socket Cap Screw Dimensions
- Thread Size: M20
- Length: 110mm
- Threaded Length: 52mm
- Pitch: 2.50mm
- Head Diameter: 30mm
- Head Height: 20mm
- Drive: H17
- Material: A2-70 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
Socket cap screws are commonly chosen for threaded assemblies where an Allen key drive offers cleaner access than an external hex head.
View our full Socket Cap Screws DIN 912 Range.
