M20 x 140mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Product code:
HSC912-M20-140-A4-70
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £6.74 | £8.09 |
| 50 - 99 | £5.52 | £6.62 |
| 100 + | £4.67 | £5.60 |
£8.09
/ each
Quantity:
Product Specification
| Thread Size | M20 |
| Length | 140mm |
| Threaded Length | 52mm |
| Pitch | 2.50mm |
| Head Diameter | 30.0mm |
| Head Height | 20.0mm |
| Drive | H17 |
| Head Style | Cap Head |
| Material | A4-70 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M20 x 140mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Suitable for tooling and fixtures, this M20 x 140mm A4 clamping cap screw is a DIN 912 cap screw used where access, torque control and repeatable fixing are important.
With A4-70 stainless steel and a H17 drive, the screw is suited to fitting support plates where installers need dependable service replacement without using an external spanner.
Common Applications
- Actuator and sensor brackets
- Material handling equipment
- Plant machinery service work
- Control cabinet installation

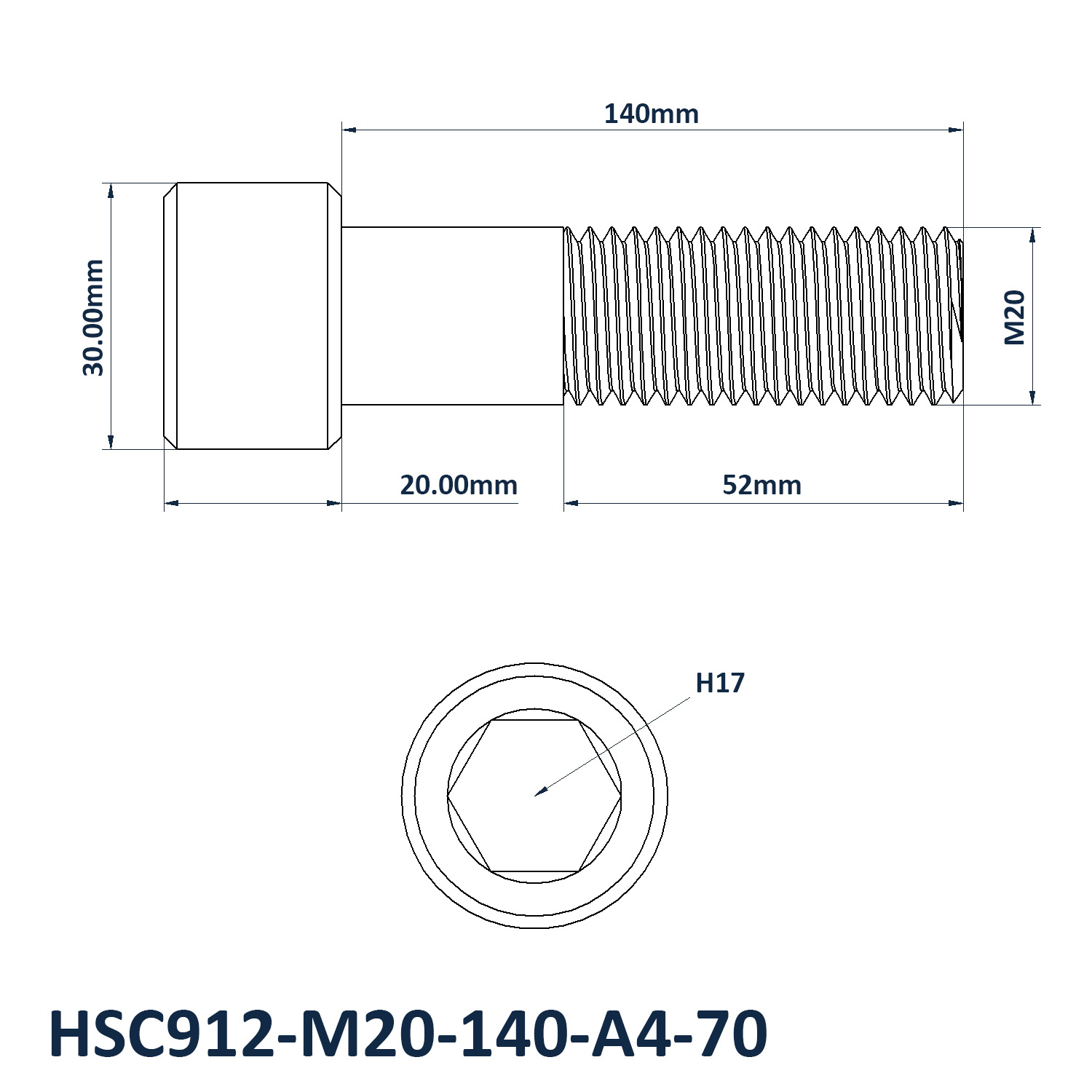

M20 x 140mm Socket Cap Screw Dimensions
- Thread Size: M20
- Length: 140mm
- Threaded Length: 52mm
- Pitch: 2.50mm
- Head Diameter: 30mm
- Head Height: 20mm
- Drive: H17
- Material: A4-70 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
For best results, check the thread size, pitch, length and available thread engagement against the tapped component before installation.
View our full Socket Cap Screws DIN 912 Range.
