M20 x 130mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Product code:
HSC912-M20-130-A4-70
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 49 | £4.33 | £5.20 |
| 50 - 99 | £3.55 | £4.26 |
| 100 + | £3.25 | £3.90 |
£5.20
/ each
Quantity:
Product Specification
| Thread Size | M20 |
| Length | 130mm |
| Threaded Length | 52mm |
| Pitch | 2.50mm |
| Head Diameter | 30.0mm |
| Head Height | 20.0mm |
| Drive | H17 |
| Head Style | Cap Head |
| Material | A4-70 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M20 x 130mm Hex Socket Cap Screw (DIN 912) | Marine Grade A4 Stainless Steel
Providing a robust option for HVAC equipment, this M20 x 130mm threaded cap screw is built with a 2.50mm metric thread and 52mm threaded length for reliable engagement.
Because it uses an internal hex drive, this screw can be tightened cleanly in recessed areas and offers stable fixing under vibration during installing motor mounts. It can also be specified as a machine screw fixing where Dimensions are required.
Common Applications
- Marine hardware installation
- Chassis component fixing
- Industrial cabinet builds
- Automation bracket mounting

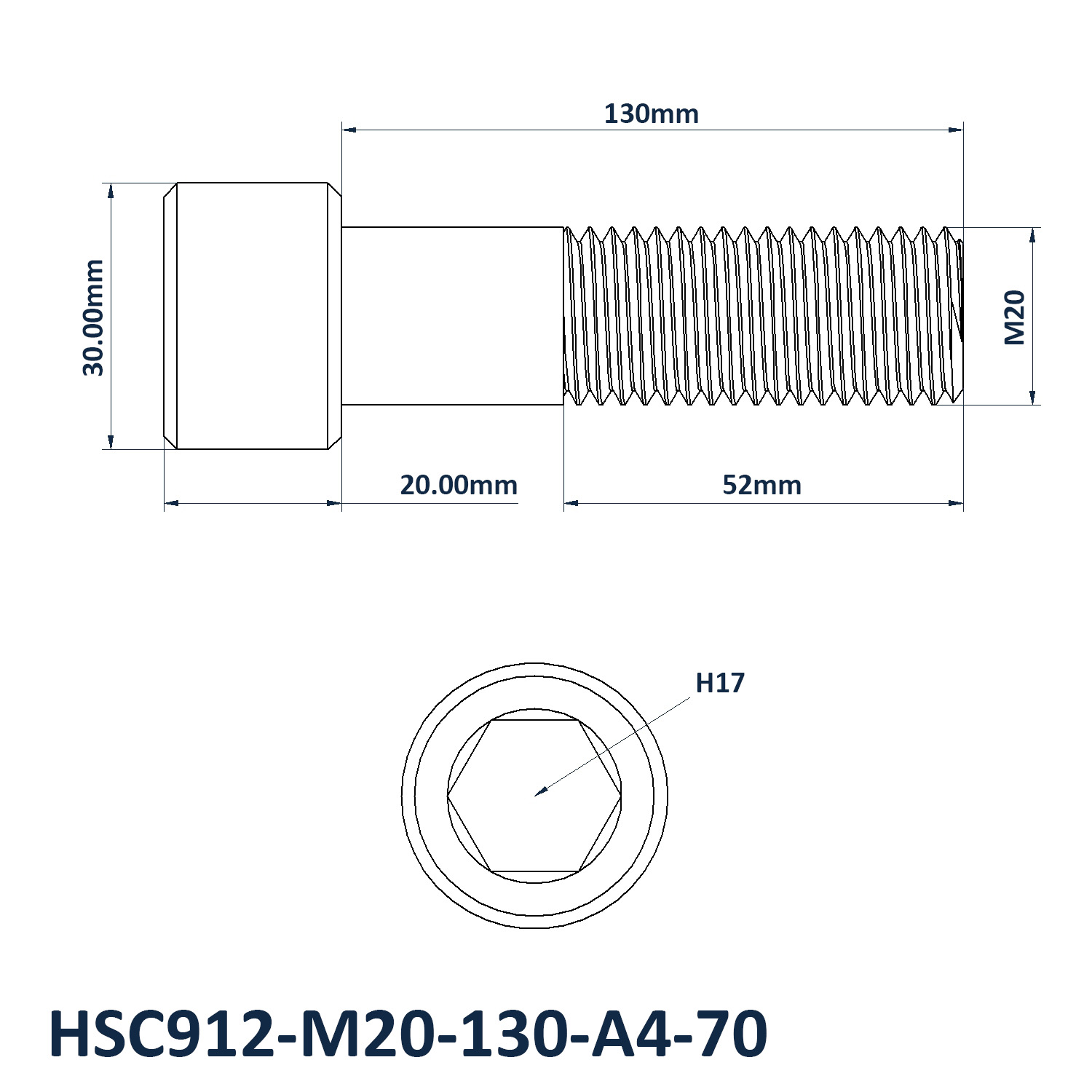

M20 x 130mm Socket Cap Screw Dimensions
- Thread Size: M20
- Length: 130mm
- Threaded Length: 52mm
- Pitch: 2.50mm
- Head Diameter: 30mm
- Head Height: 20mm
- Drive: H17
- Material: A4-70 Stainless Steel
- Head Style: Cap Head
- Standard: DIN 912
Fastener Selection Note
Socket cap screws are commonly chosen for threaded assemblies where an Allen key drive offers cleaner access than an external hex head.
View our full Socket Cap Screws DIN 912 Range.
