M3 Nyloc Nut (DIN 985) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.04 | £0.05 |
| 100 - 999 | £0.03 | £0.04 |
| 1000 - 9999 | £0.03 | £0.03 |
| 10000 + | £0.02 | £0.02 |
£0.05 / each
.png)
Product Specification
| Thread Size | M3 |
| Thread Pitch | 0.50mm |
| Material | A4 Stainless Steel |
| Across Flats | 5mm |
| Height | 4mm |
| Standard | DIN 985 |
Frequently Bought Together
Total Price: £0.00

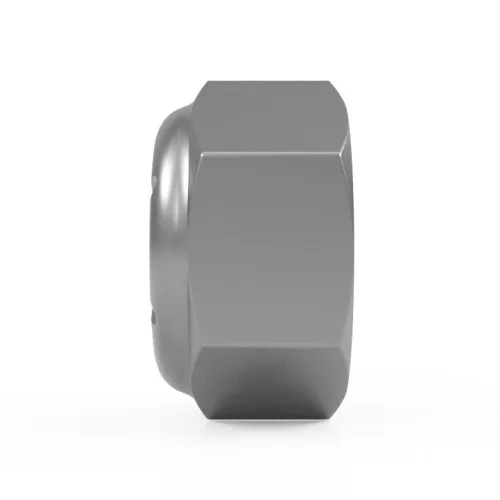

M3 Thin Nyloc Hex Nut | 0.50mm Pitch | DIN 985 | A4 Stainless Steel
This M3 nylon insert locknut is suited to electrical enclosures, control equipment and fabricated panels where a standard hex nut may loosen under vibration. The nylon insert grips the mating thread to provide prevailing torque while the metal nut body carries the clamping load. The A4 stainless steel construction provides enhanced corrosion resistance for suitable outdoor, coastal and marine fastening applications.
What Are DIN 985 Nyloc Nuts?
DIN 985 Nylon Lock Nuts use a polymer insert above the metal thread to create resistance against the mating bolt. The nut body remains metal while the nylon insert provides the locking action which makes these fasteners useful in vibration-prone mechanical assemblies.
The same locking principle is available across our nyloc nuts. For a taller body design, see the related high locknuts range.
Common Applications
- Pumps and Motors: Helps maintain bolted joints on suitable equipment exposed to vibration and repeated operation.
- Furniture and Frames: Provides a compact locking nut for metal frames, brackets and adjustable furniture components.
- Transport Equipment: Supports secure fastening on suitable panels, brackets and serviceable mechanical assemblies.
- Workshop Repairs: Provides a straightforward replacement locknut for compatible metric bolted joints.
M3 DIN 985 Thin Nyloc Hex Nut Dimensions
- Thread Size: M3
- Thread Pitch: 0.50mm
- Across Flats: 5mm
- Height: 4mm
- Material: A4 Stainless Steel
- Standard: DIN 985
Key Benefits
- Nylon insert creates prevailing friction on the mating thread to help resist loosening.
- Metal nut body carries the clamping load while the nylon insert provides the locking action.
- 0.50mm thread pitch matches compatible metric bolts and threaded components.
- 4mm height provides the compact DIN 985 nut profile.
If you need help matching the thread size, pitch or material grade to your application, call us on 01233 713581.
