M10 x 12mm Socket Grub Screw - Flat Point (DIN 913) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.09 | £0.11 |
| 100 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 + | £0.05 | £0.06 |
Product Specification
| Thread Size | M10 |
| Length | 12.0mm |
| Pitch | 1.50mm |
| End Type | Flat |
| Drive | H5 |
| Standard | DIN 913 / ISO 4026 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M10 x 12mm Flat Point Socket Grub Screw | H5 Drive | A2 Stainless Steel
For conveyor maintenance, the M10 x 12mm flat tip grub screw provides positive location without the space taken by a traditional headed bolt. Its H5 internal socket allows access through a small clearance point during installation or servicing. This makes it useful as a flat point grub screw in rollers, stop collars and conveyor change parts where allows quick adjustment on busy production lines.
A2 stainless steel helps protect the fixing from rust in workshop, production and general outdoor settings when matched to the correct mating material. The internal hex drive provides good tool access in narrow spaces and helps maintenance teams make small adjustments without dismantling surrounding parts. It is well suited to general stainless grub screw requirements across manufacturing and maintenance teams.
Common Applications
- Rollers, stop collars and conveyor change parts using a M10 x 12mm flat point set screw
- Food processing machinery brackets and stops
- Laboratory frames and instrument housings
- Stainless mechanical assemblies needing a flush screw
Key Features and Benefits
- Broad flat end is suited to components that may be reset during servicing
- Metric thread and 1.50mm pitch provide predictable engagement in matching tapped holes
- A2 Stainless Steel construction supports the selected environment and application duty
- Compact grub screw format avoids the clearance issues created by headed fasteners

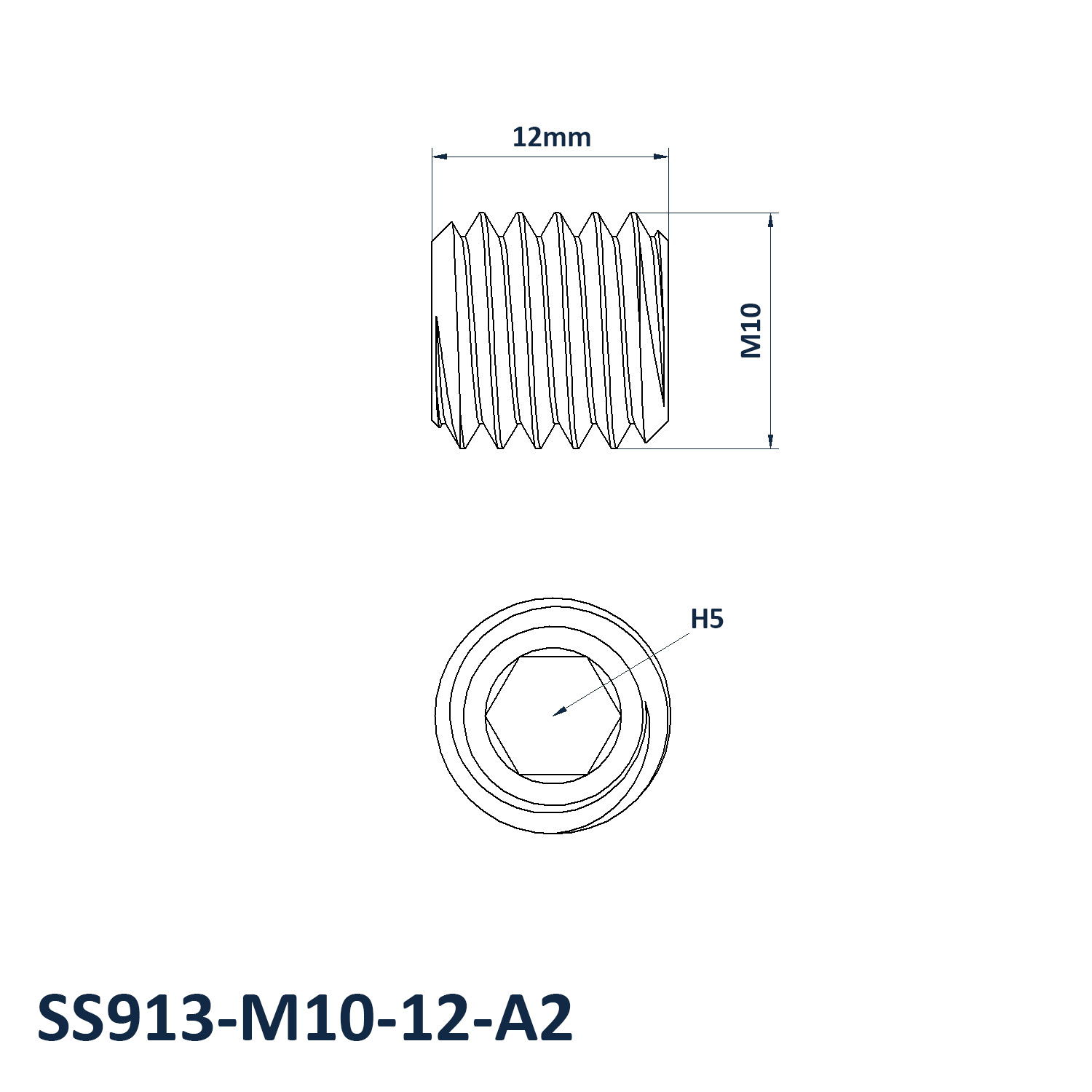

M10 x 12mm A2 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M10
- Length: 12mm
- Pitch: 1.50mm
- End Type: Flat
- Drive: H5
- Material: A2 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
