M10 x 70mm Socket Grub Screw - Flat Point (DIN 913) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.79 | £0.95 |
| 100 - 499 | £0.66 | £0.79 |
| 500 - 999 | £0.57 | £0.69 |
| 1000 - 4999 | £0.50 | £0.60 |
| 5000 + | £0.44 | £0.53 |
Product Specification
| Thread Size | M10 |
| Length | 70.0mm |
| Pitch | 1.50mm |
| End Type | Flat |
| Drive | H5 |
| Standard | DIN 913 / ISO 4026 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M10 x 70mm Flat Point Socket Grub Screw | H5 Drive | A2 Stainless Steel
The M10 x 70mm flat point grub screw gives lighting rig hardware applications a compact fixing with no protruding head. It is driven through a H5 hex socket and uses a 1.50mm pitch thread for secure engagement in compatible tapped holes. It is a practical hex socket set screw for clamps, swivel joints and mounting collars where helps keep compact rigging components in position.
A2 stainless steel offers good corrosion resistance for general engineering, equipment builds and many external environments away from severe chloride exposure. The internal hex drive provides good tool access in narrow spaces and helps maintenance teams make small adjustments without dismantling surrounding parts. It is well suited to general stainless grub screw requirements across manufacturing and maintenance teams.
Common Applications
- Clamps, swivel joints and mounting collars using a M10 x 70mm flat point set screw
- Rail or transport interior hardware
- Commercial equipment maintenance
- Replacement of worn grub screws in existing collars
Key Features and Benefits
- Broad flat end is suited to components that may be reset during servicing
- Metric thread and 1.50mm pitch provide predictable engagement in matching tapped holes
- A2 Stainless Steel construction supports the selected environment and application duty
- Compact grub screw format avoids the clearance issues created by headed fasteners

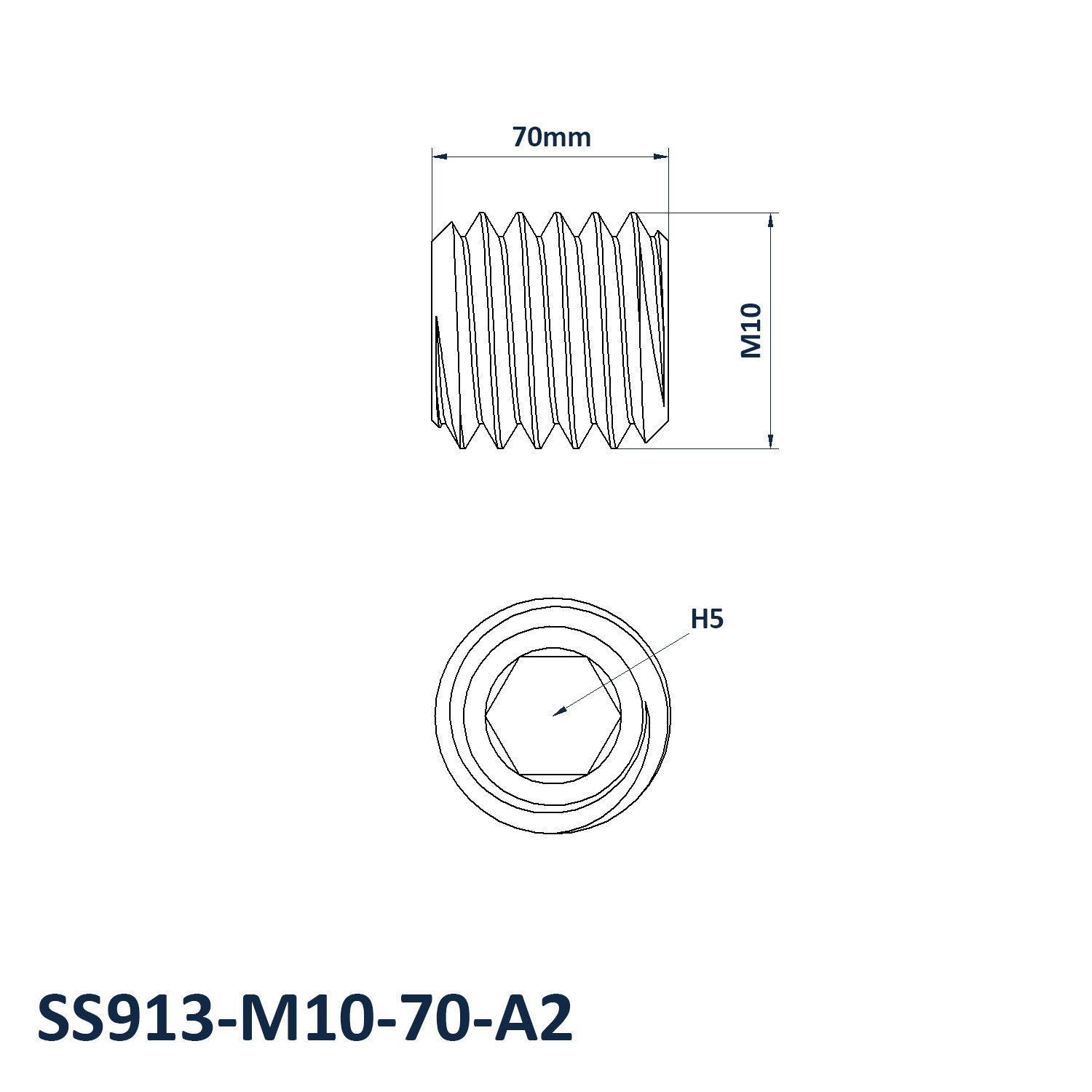

M10 x 70mm A2 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M10
- Length: 70mm
- Pitch: 1.50mm
- End Type: Flat
- Drive: H5
- Material: A2 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
