M2 x 10mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.16 | £0.19 |
| 100 - 499 | £0.12 | £0.15 |
| 500 - 999 | £0.12 | £0.14 |
| 1000 - 4999 | £0.10 | £0.12 |
| 5000 + | £0.08 | £0.10 |
Product Specification
| Thread Size | M2 |
| Length | 10.0mm |
| Pitch | 0.40mm |
| End Type | Flat |
| Drive | H0.9 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M2 x 10mm Flat Point Socket Grub Screw | H0.9 Drive | A4 Stainless Steel
The M2 x 10mm flat point socket grub screw is a compact headless fastener for shaft collar positioning. Its H0.9 socket, 0.40mm pitch and DIN 913 / ISO 4026 form make it suitable where a flush set screw needs to hold a component without projecting above the surface. As a flush grub screw, it is well suited to shaft collars, split collars and drive sleeves because it keeps round components seated without creating a raised fixing point.
Manufactured from A4 stainless steel, this flat point grub screw is appropriate for coastal, chemical-adjacent and wet area applications when used with compatible parts. The combination of a flat point, metric thread and socket drive gives a controlled fixing for assemblies that need repeatable setting and removal. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Shaft collars, split collars and drive sleeves using a M2 x 10mm flat point set screw
- Pump and valve actuator components
- Fabricated frame adjustment points
- Toolmaking blocks and fixture stops
Key Features and Benefits
- Useful for locking shafts, collars and stops after alignment has been checked
- Socket drive keeps the fixing accessible even where side clearance is limited
- Flat point end type reduces localised marking compared with sharper set screw points
- Available as part of a wider metric grub screw range for stocked maintenance spares

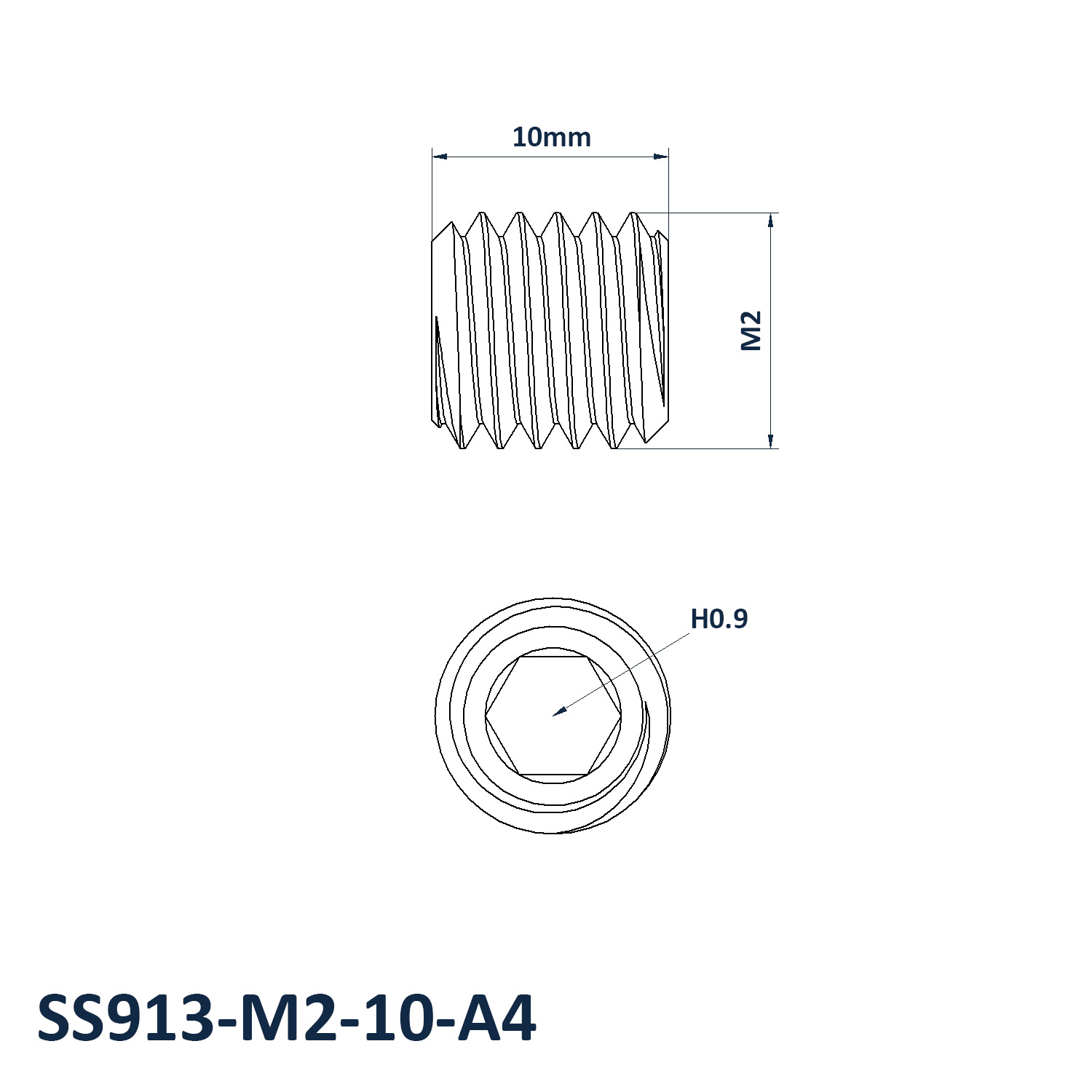

M2 x 10mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M2
- Length: 10mm
- Pitch: 0.40mm
- End Type: Flat
- Drive: H0.9
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
