M2.5 x 10mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.51 | £0.61 |
| 100 - 499 | £0.42 | £0.51 |
| 500 - 999 | £0.38 | £0.45 |
| 1000 - 4999 | £0.33 | £0.39 |
| 5000 + | £0.28 | £0.34 |
Product Specification
| Thread Size | M2.5 |
| Length | 10.0mm |
| Pitch | 0.45mm |
| End Type | Flat |
| Drive | H1.3 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M2.5 x 10mm Flat Point Socket Grub Screw | H1.3 Drive | A4 Stainless Steel
This M2.5 x 10mm Allen key grub screw is a useful headless fixing for pumps and motor assemblies. The flat end type is selected where broad contact is preferred over a cup or cone point, helping reduce marking on the retained component. As a BZP grub screw, it is well suited to couplings, fans and small rotating parts because it helps resist component movement after alignment has been set.
Manufactured from A4 stainless steel, this flat point grub screw is appropriate for coastal, chemical-adjacent and wet area applications when used with compatible parts. The flat point design is especially useful when the retained part may need to be repositioned because the end sits evenly against the contact face. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Couplings, fans and small rotating parts using a M2.5 x 10mm flat point set screw
- Inspection gauges and calibration fixtures
- Furniture or display hardware requiring concealed fixing
- Light engineering assemblies with removable set points
Key Features and Benefits
- Flat point helps distribute load on the contact face rather than biting sharply into the retained part
- Headless body can sit below the surface for clean mechanical assemblies
- H1.3 socket gives controlled Allen key installation in restricted spaces
- DIN 913 / ISO 4026 manufacture supports repeatable sizing across maintenance and OEM requirements

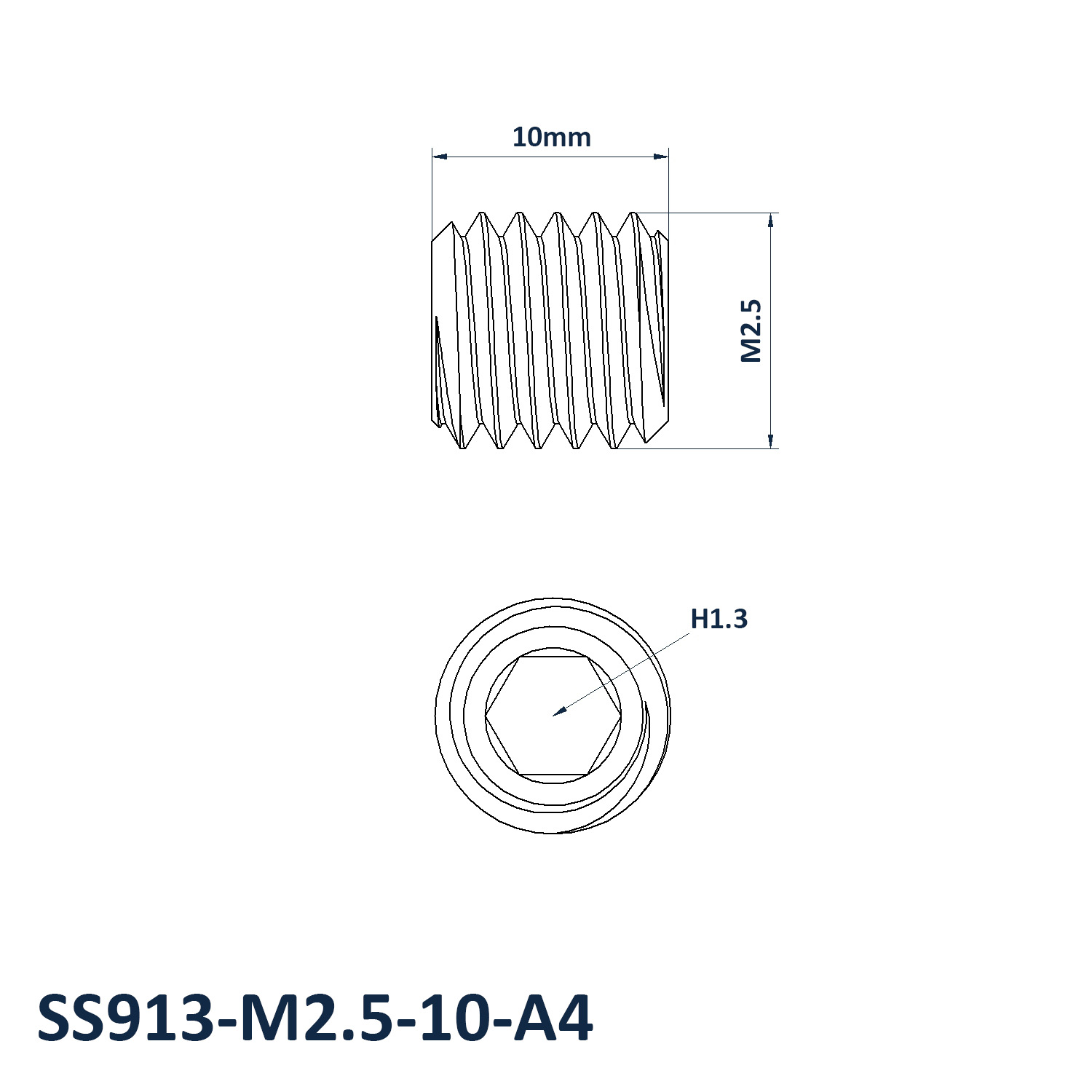

M2.5 x 10mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M2.5
- Length: 10mm
- Pitch: 0.45mm
- End Type: Flat
- Drive: H1.3
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
