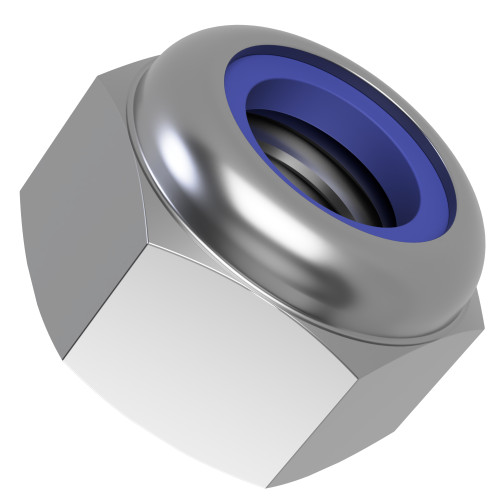

M2.5 Nyloc Nut (DIN 985) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.05 | £0.06 |
| 100 - 999 | £0.04 | £0.05 |
| 1000 - 9999 | £0.03 | £0.04 |
| 10000 + | £0.03 | £0.03 |
£0.06 / each
.png)
Product Specification
| Thread Size | M2.5 |
| Thread Pitch | 0.45mm |
| Material | A2 Stainless Steel |
| Across Flats | 5mm |
| Height | 3mm |
| Standard | DIN 985 |
Frequently Bought Together
Total Price: £0.00
M2.5 Thin Nyloc Hex Nut | 0.45mm Pitch | DIN 985 | A2 Stainless Steel
This M2.5 self-locking hex nut is suited to construction hardware and fabricated metal components where a standard hex nut may loosen under vibration. The nylon insert grips the mating thread to provide prevailing torque while the metal nut body carries the clamping load. The A2 stainless steel construction provides good corrosion resistance for general engineering, machinery and suitably exposed fastening applications.
What Are DIN 985 Nyloc Nuts?
Nyloc Nuts are metal hex nuts fitted with a nylon insert that grips the mating thread as the bolt passes through. This added friction creates a prevailing torque which helps the nut resist loosening under vibration, movement and repeated service conditions.
This DIN 985 style sits within our wider nylon lock nuts range. For applications that require a taller nylon insert nut, our high locknuts provide the DIN 982 alternative.
Common Applications
- Machinery: Helps secure bolts on guards, brackets and equipment where vibration could loosen a conventional nut.
- Automotive Assemblies: Provides a locking nut for suitable brackets, panels and mechanical fixings exposed to movement.
- Electrical Equipment: Secures compatible bolts in control panels, enclosures and equipment frames.
- General Engineering: Provides a reusable locking fastener for fabricated assemblies, maintenance work and mechanical builds.

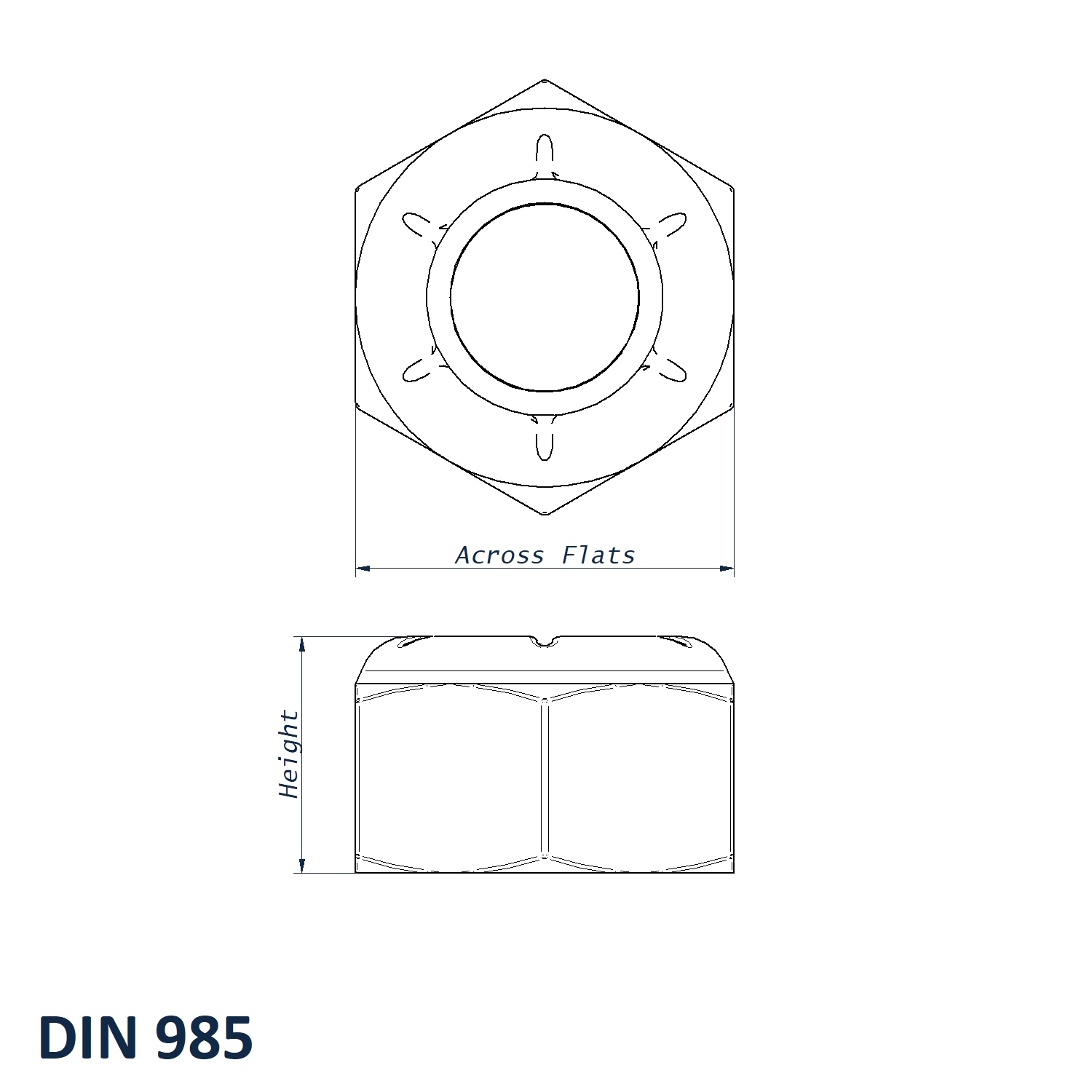

M2.5 DIN 985 Thin Nyloc Hex Nut Dimensions
- Thread Size: M2.5
- Thread Pitch: 0.45mm
- Across Flats: 5mm
- Height: 3mm
- Material: A2 Stainless Steel
- Standard: DIN 985
Key Benefits
- 5mm across-flats dimension provides the stated hex body width for tool engagement.
- A2 Stainless Steel construction provides the specified metal grade and finish.
- Compact body height suits assemblies where a taller locknut may create clearance issues.
- Self-locking format can reduce the need for a separate locking washer in suitable assemblies.
If you are unsure which stainless steel or BZP grade is right for your assembly, contact our team on 01233 713581.
