M2.5 x 8mm Socket Grub Screw - Flat Point (DIN 913) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.07 | £0.08 |
| 100 - 499 | £0.06 | £0.07 |
| 500 - 999 | £0.05 | £0.06 |
| 1000 - 4999 | £0.04 | £0.05 |
| 5000 + | £0.03 | £0.04 |
Product Specification
| Thread Size | M2.5 |
| Length | 8.0mm |
| Pitch | 0.45mm |
| End Type | Flat |
| Drive | H1.3 |
| Standard | DIN 913 / ISO 4026 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M2.5 x 8mm Flat Point Socket Grub Screw | H1.3 Drive | A2 Stainless Steel
The M2.5 x 8mm flat point grub screw gives lighting rig hardware applications a compact fixing with no protruding head. It is driven through a H1.3 hex socket and uses a 0.45mm pitch thread for secure engagement in compatible tapped holes. As a BZP grub screw, it is well suited to clamps, swivel joints and mounting collars because it helps keep compact rigging components in position.
Manufactured from A2 stainless steel, this grub screw suits applications where moisture resistance and a neat metallic finish are important. Because the screw is headless, it can be recessed into a threaded component to reduce snagging and keep the surrounding assembly clear. It is well suited to general stainless grub screw requirements across manufacturing and maintenance teams.
Common Applications
- Clamps, swivel joints and mounting collars using a M2.5 x 8mm flat point set screw
- Textile machine alignment collars
- Lighting rig clamp components
- Access control hardware and pivot mechanisms
Key Features and Benefits
- Useful for locking shafts, collars and stops after alignment has been checked
- Socket drive keeps the fixing accessible even where side clearance is limited
- Flat point end type reduces localised marking compared with sharper set screw points
- Available as part of a wider metric grub screw range for stocked maintenance spares

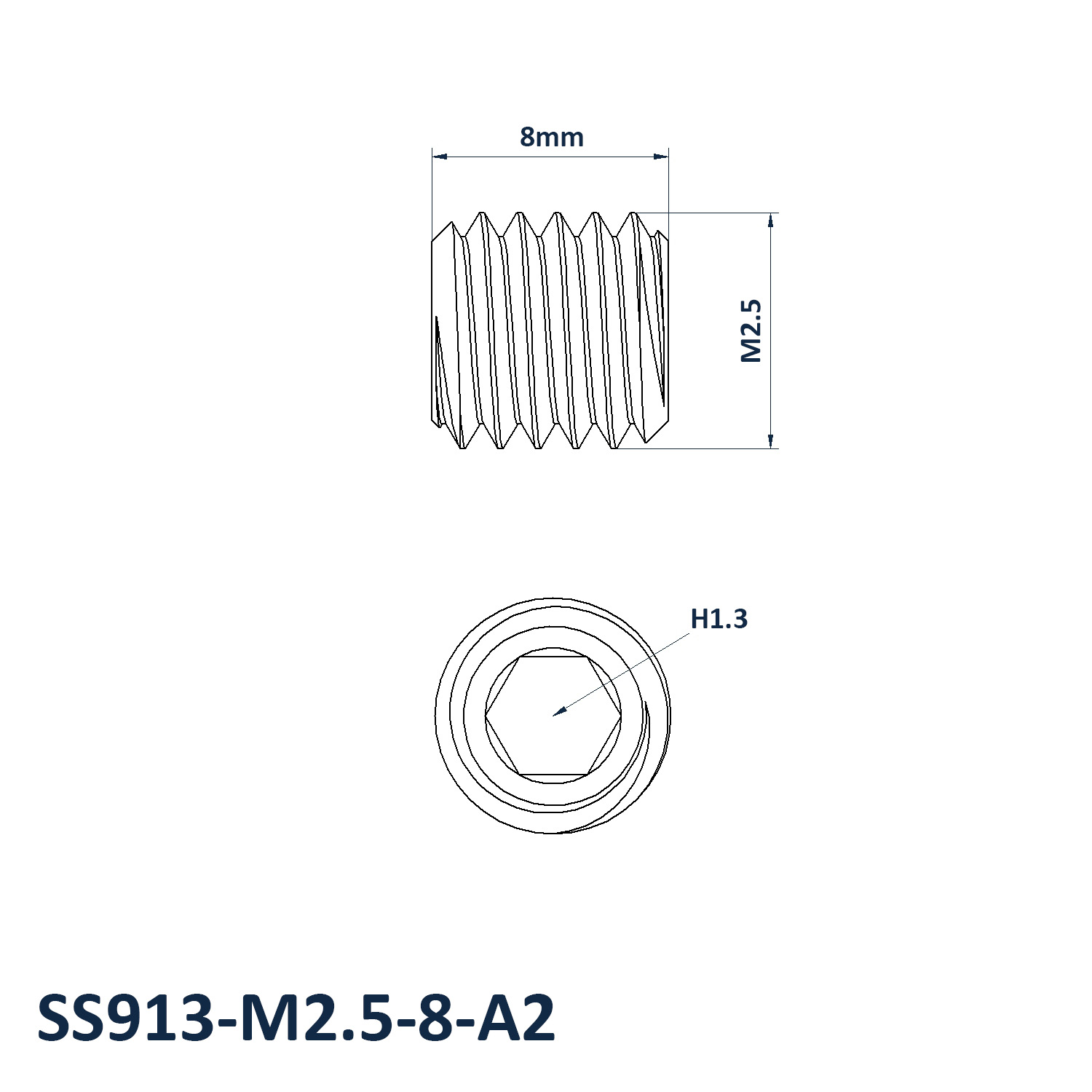

M2.5 x 8mm A2 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M2.5
- Length: 8mm
- Pitch: 0.45mm
- End Type: Flat
- Drive: H1.3
- Material: A2 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
