M4 x 3mm Socket Grub Screw - Flat Point (DIN 913) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.05 | £0.06 |
| 100 - 499 | £0.04 | £0.05 |
| 500 - 999 | £0.03 | £0.04 |
| 1000 - 4999 | £0.03 | £0.03 |
| 5000 + | £0.02 | £0.02 |
Product Specification
| Thread Size | M4 |
| Length | 3.0mm |
| Pitch | 0.70mm |
| End Type | Flat |
| Drive | H2 |
| Standard | DIN 913 / ISO 4026 |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M4 x 3mm Flat Point Socket Grub Screw | H2 Drive | A2 Stainless Steel
The M4 x 3mm flat point socket grub screw is a compact headless fastener for marine equipment interiors. Its H2 socket, 0.70mm pitch and DIN 913 / ISO 4026 form make it suitable where a flush set screw needs to hold a component without projecting above the surface. It is a practical DIN 913 grub screw for stainless hardware, deck-adjacent fittings and cabin equipment where is suited to corrosion-aware assemblies when the material grade is chosen correctly.
A2 stainless steel offers good corrosion resistance for general engineering, equipment builds and many external environments away from severe chloride exposure. Its DIN 913 form is often chosen for collars, hubs and adjustment points where a cup point would be too aggressive for the surface being retained. It is well suited to general stainless grub screw requirements across manufacturing and maintenance teams.
Common Applications
- Stainless hardware, deck-adjacent fittings and cabin equipment using a M4 x 3mm flat point set screw
- Pump and valve actuator components
- Fabricated frame adjustment points
- Toolmaking blocks and fixture stops
Key Features and Benefits
- Useful for locking shafts, collars and stops after alignment has been checked
- Socket drive keeps the fixing accessible even where side clearance is limited
- Flat point end type reduces localised marking compared with sharper set screw points
- Available as part of a wider metric grub screw range for stocked maintenance spares

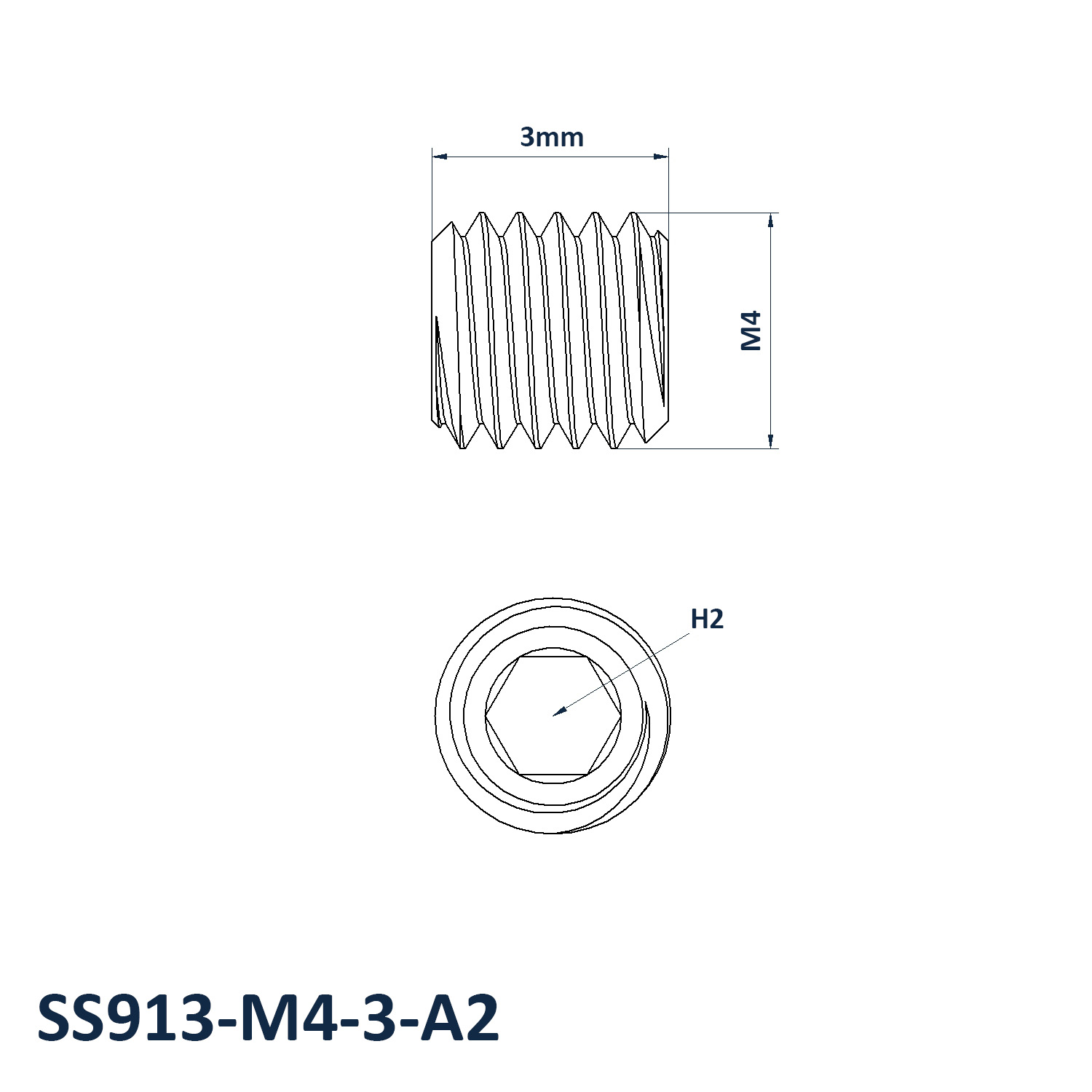

M4 x 3mm A2 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M4
- Length: 3mm
- Pitch: 0.70mm
- End Type: Flat
- Drive: H2
- Material: A2 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
