M4 x 4mm Socket Grub Screw - Flat Point (DIN 913) | Marine Grade A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.05 | £0.06 |
| 100 - 499 | £0.04 | £0.05 |
| 500 - 999 | £0.03 | £0.04 |
| 1000 - 4999 | £0.03 | £0.03 |
| 5000 + | £0.02 | £0.02 |
Product Specification
| Thread Size | M4 |
| Length | 4.0mm |
| Pitch | 0.70mm |
| End Type | Flat |
| Drive | H2 |
| Standard | DIN 913 / ISO 4026 |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M4 x 4mm Flat Point Socket Grub Screw | H2 Drive | A4 Stainless Steel
Built around the DIN 913 / ISO 4026 standard, this M4 x 4mm socket set screw is suited to electrical enclosure builds. It combines a compact threaded body with a flat point for reliable seating inside collars, hubs and adjustable parts. This makes it useful as a shaft collar grub screw in hinge blocks, mounting rails and enclosure accessories where keeps internal fixings compact around panels and covers.
A4 stainless steel gives enhanced corrosion performance for exposed equipment, stainless assemblies and maintenance work in aggressive service conditions. The flat point design is especially useful when the retained part may need to be repositioned because the end sits evenly against the contact face. It is a good option for buyers comparing corrosion-resistant grub screws for harsher service conditions.
Common Applications
- Hinge blocks, mounting rails and enclosure accessories using a M4 x 4mm flat point set screw
- Inspection gauges and calibration fixtures
- Furniture or display hardware requiring concealed fixing
- Light engineering assemblies with removable set points
Key Features and Benefits
- Headless profile is ideal where the outer face must remain smooth or unobstructed
- Flat tip provides stable seating against a shaft, plate or internal stop surface
- Precise metric sizing supports replacement work on equipment already using DIN 913 screws
- Supplied in practical sizes for engineering, repair and small batch manufacture

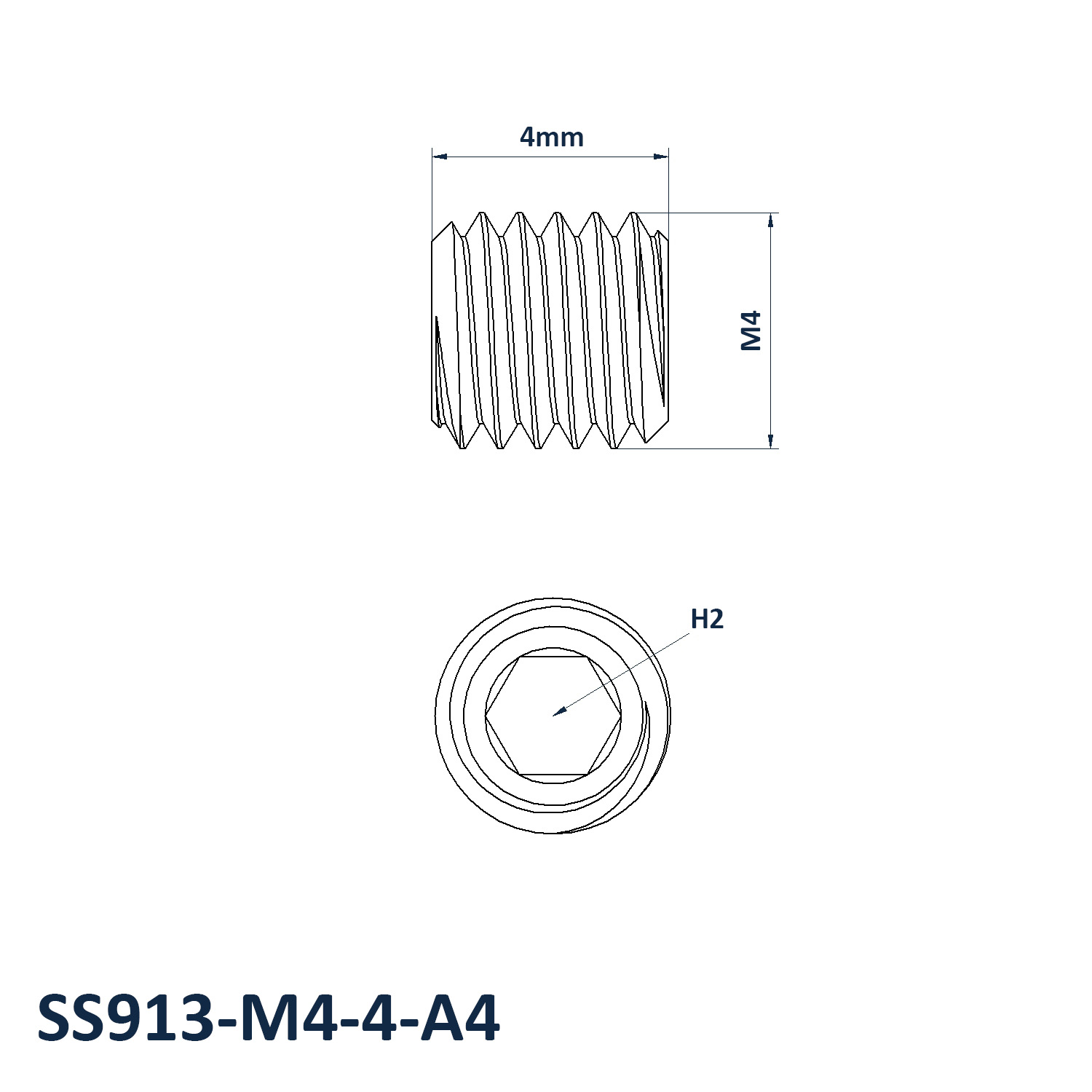

M4 x 4mm A4 Stainless Steel Flat Point Socket Grub Screw Dimensions
- Thread Size: M4
- Length: 4mm
- Pitch: 0.70mm
- End Type: Flat
- Drive: H2
- Material: A4 Stainless Steel
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
