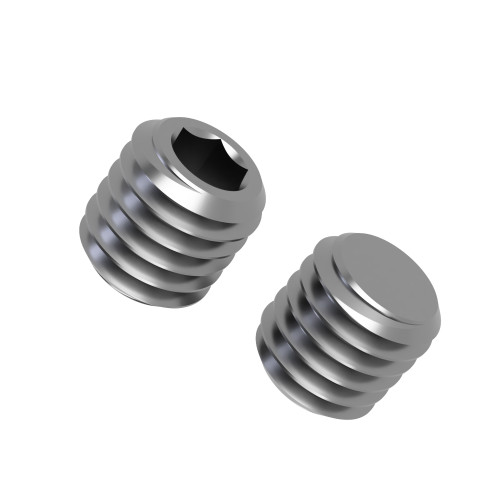

M10 x 12mm Socket Grub Screw - Flat Point (DIN 913) - Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.16 | £0.19 |
| 100 - 499 | £0.15 | £0.18 |
| 500 - 999 | £0.12 | £0.15 |
| 1000 - 4999 | £0.11 | £0.13 |
| 5000 - 9999 | £0.10 | £0.12 |
| 10000 + | £0.09 | £0.11 |
Product Specification
| Thread Size | M10 |
| Length | 12.0mm |
| Pitch | 1.50.0mm |
| End Type | Flat |
| Drive | H5 |
| Standard | DIN 913 / ISO 4026 |
| Material | Class 45H Steel BZP |
Frequently Bought Together
Total Price: £0.00
M10 x 12mm Flat Point Socket Grub Screw | H5 Drive | Class 45H Steel BZP
The M10 x 12mm socket grub screw with flat point is intended for packaging machinery and similar precision assemblies. A 1.50.0mm thread pitch gives consistent engagement while the flat point supports contact on shafts, collars and machined faces. As a stainless grub screw, it is well suited to guide rails, format parts and packaging machine tooling because it suits equipment that is reset regularly for different product sizes.
Manufactured from Class 45H steel BZP, this DIN 913 grub screw suits dry environments where strong thread engagement and a practical plated finish are required. Its DIN 913 form is often chosen for collars, hubs and adjustment points where a cup point would be too aggressive for the surface being retained. It gives a strong plated steel alternative where stainless steel is not required.
Common Applications
- Guide rails, format parts and packaging machine tooling using a M10 x 12mm flat point set screw
- Locking pulleys and gear hubs on compatible shafts
- Holding stop blocks inside jigs and fixtures
- Flush fastening in machined assemblies
Key Features and Benefits
- Useful for locking shafts, collars and stops after alignment has been checked
- Socket drive keeps the fixing accessible even where side clearance is limited
- Flat point end type reduces localised marking compared with sharper set screw points
- Available as part of a wider metric grub screw range for stocked maintenance spares

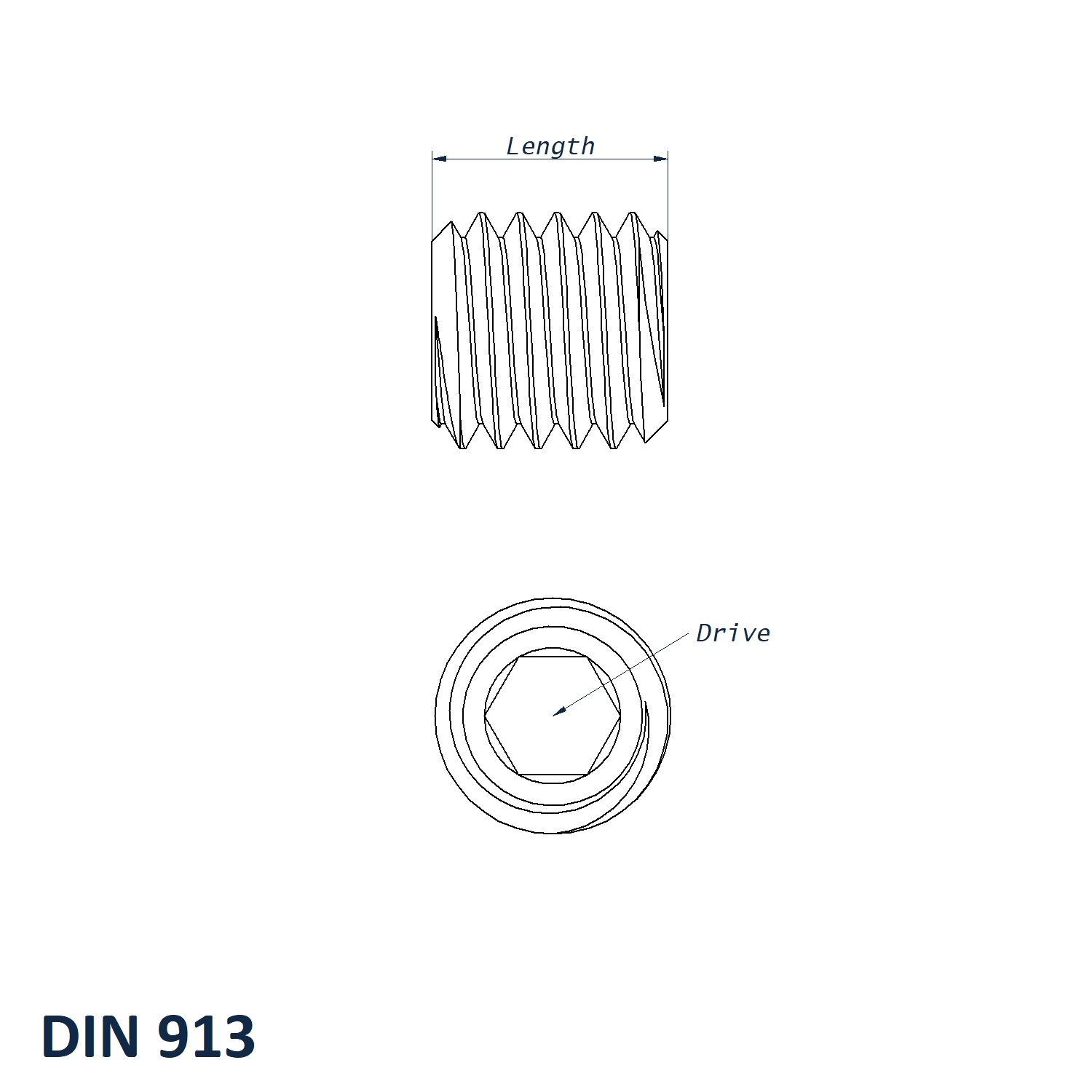

M10 x 12mm Class 45H Steel BZP Flat Point Socket Grub Screw Dimensions
- Thread Size: M10
- Length: 12mm
- Pitch: 1.50.0mm
- End Type: Flat
- Drive: H5
- Material: Class 45H Steel BZP
- Colour: Self-colour
- Standard: DIN 913 / ISO 4026
Further Reading
View our full range of Socket Grub Screw Flat DIN 913 here: Socket Grub Screw Flat DIN 913.
