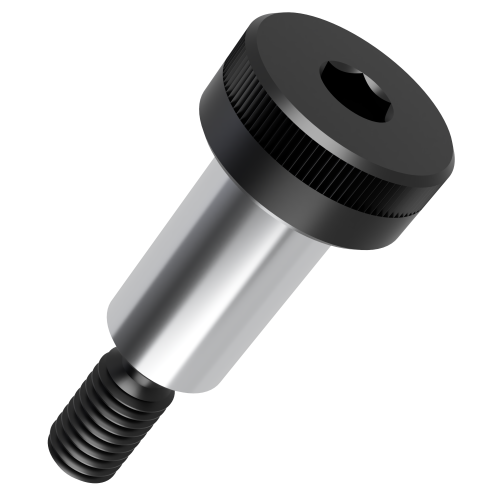

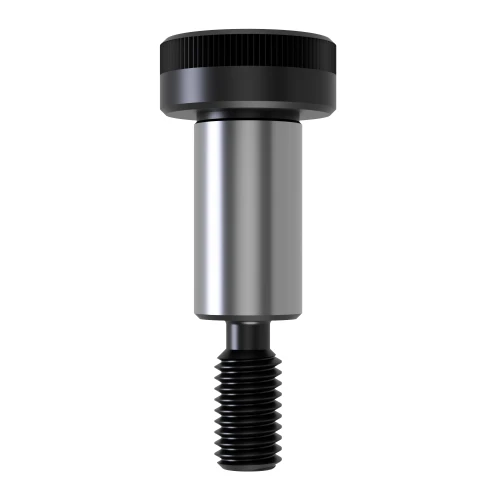

M10 (12mm) x 45mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £4.61 | £5.53 |
| 10 - 24 | £3.46 | £4.15 |
| 25 - 49 | £3.17 | £3.80 |
| 50 - 99 | £2.88 | £3.46 |
| 100 - 499 | £2.31 | £2.77 |
| 500 + | £2.02 | £2.42 |
Product Specification
| Shoulder Diameter | 12.0mm |
| Shoulder Length | 45.0mm |
| Thread Size | M10 |
| Material | 12.9 Steel |
| Thread Length | 16.0mm |
| Head Diameter | 18.0mm |
| Head Height | 9.0mm |
| Drive | H6 |
| Standard | ISO 7379 |
| Shoulder Tolerance | f9 |
Frequently Bought Together
Total Price: £0.00

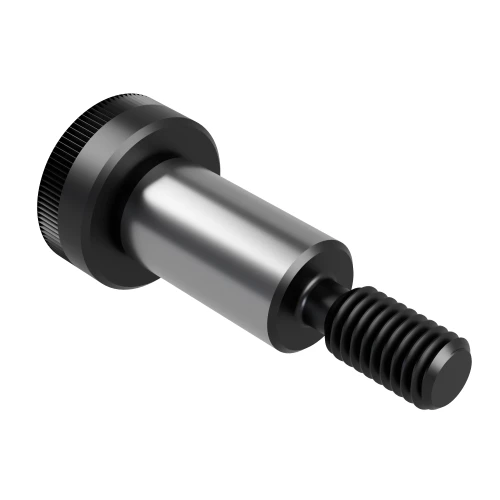

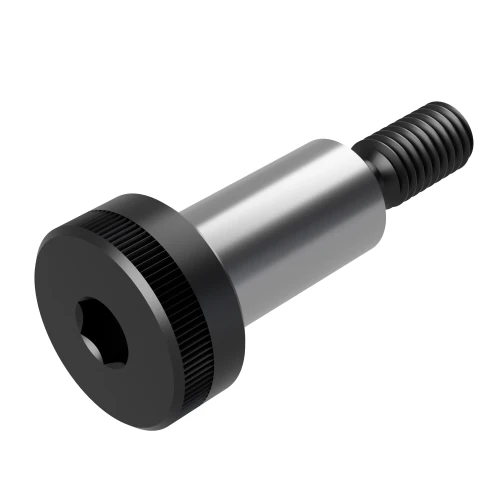

M10 (12mm) x 45mm Socket Shoulder Screw (ISO 7379) | 12.9 Steel
For brackets, rollers and guide points, this M10 (12mm) x 45mm Socket Shoulder Screw offers a defined shoulder section and secure M10 threaded fixing. This helps it work as a location shoulder screw in compact mechanical designs.
Its 12.9 steel grade gives the strength needed for compact mechanical joints exposed to repeated load or regular service. The shoulder diameter provides location accuracy while the threaded portion delivers reliable pull-down into the mating part.
ISO 7379 f9 Shoulder Tolerance Guide
| Nominal Diameter (ds in mm) | Lower Deviation (ES/EI) in μm | Upper Deviation (es/ei) in μm | Example Min. Diameter (mm) | Example Max. Diameter (mm) |
|---|---|---|---|---|
| 4 | -25 | -50 | 3.975 | 3.950 |
| 5 | -30 | -60 | 4.970 | 4.940 |
| 6 | -30 | -60 | 5.970 | 5.940 |
| 8 | -36 | -72 | 7.964 | 7.928 |
| 10 | -36 | -72 | 9.964 | 9.928 |
| 12 | -43 | -86 | 11.957 | 11.914 |
| 16 | -43 | -86 | 15.957 | 15.914 |
| 20 | -52 | -104 | 19.948 | 19.896 |
| 24 | -52 | -104 | 23.948 | 23.896 |
Note: The values in the table are a standard representation. The term "Lower Deviation" refers to the difference between the maximum material limit and the nominal size, while the "Upper Deviation" refers to the difference between the minimum material limit and the nominal size.
Common Applications
- Electrical enclosure hardware
- Control panel hinges
- Removable service covers
- Guided access mechanisms

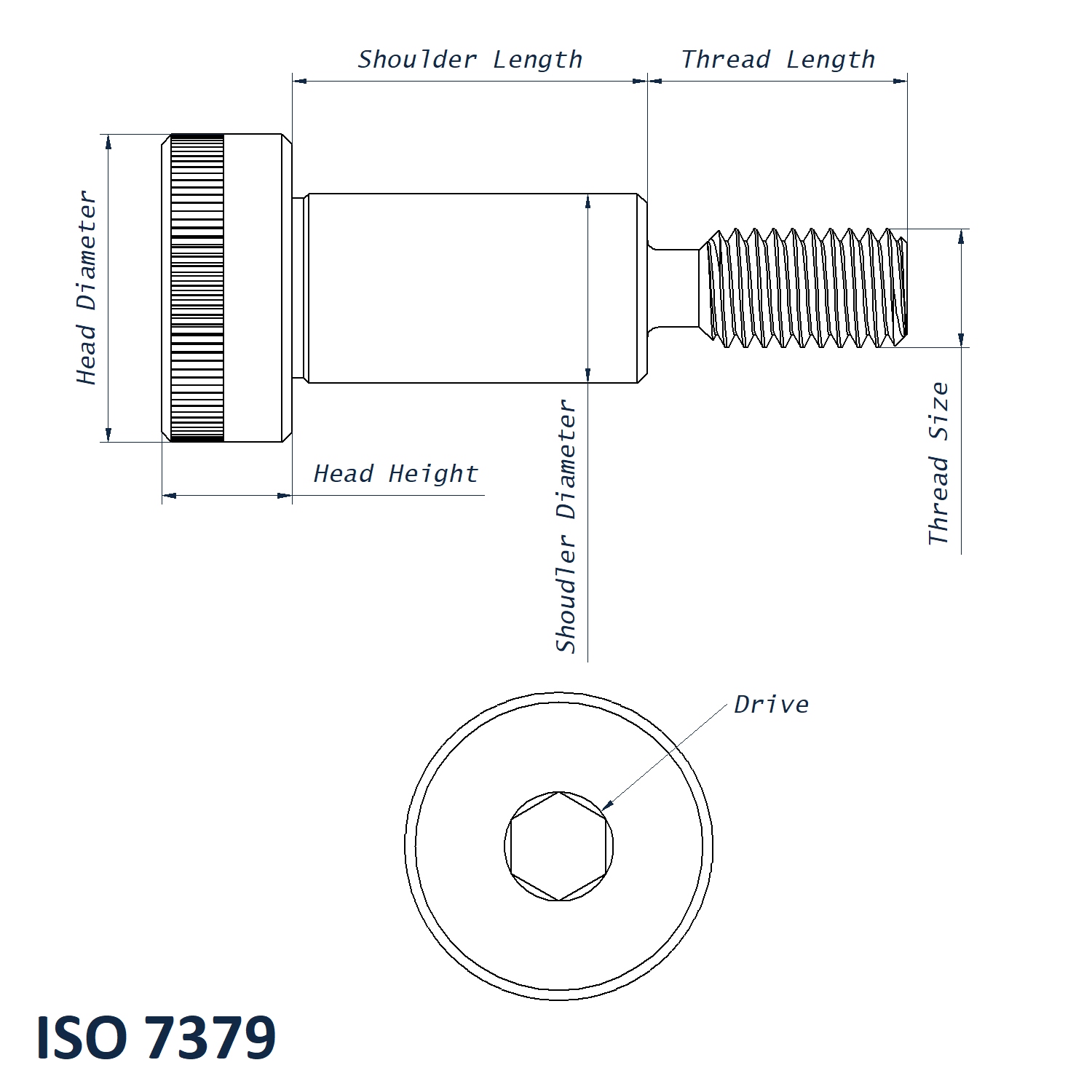

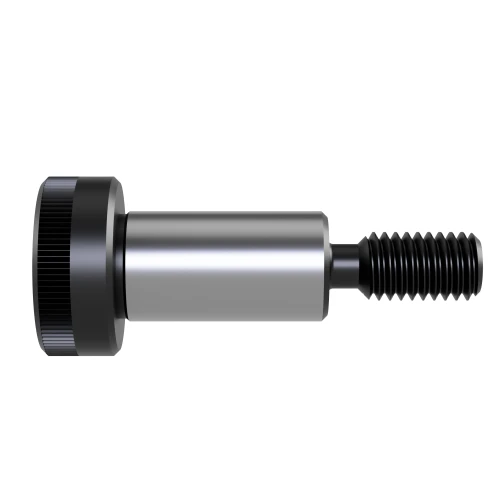

M10 (12mm) x 45mm Socket Shoulder Screw Dimensions
- Shoulder Diameter: 12mm
- Shoulder Length: 45mm
- Thread Size: M10
- Thread Length: 16mm
- Head Diameter: 18mm
- Head Height: 9mm
- Drive: H6
- Shoulder Tolerance: f9
- Standard: ISO 7379
- Material: 12.9 Steel
Browse Related Fastener Ranges
View our full Socket Shoulder Bolts ISO 7379 range. You can also browse our wider Shoulder Bolts category and Bolts and Screws collection.
